Chapter 2: Installation
33
2.5 Linear Feedback Transducer

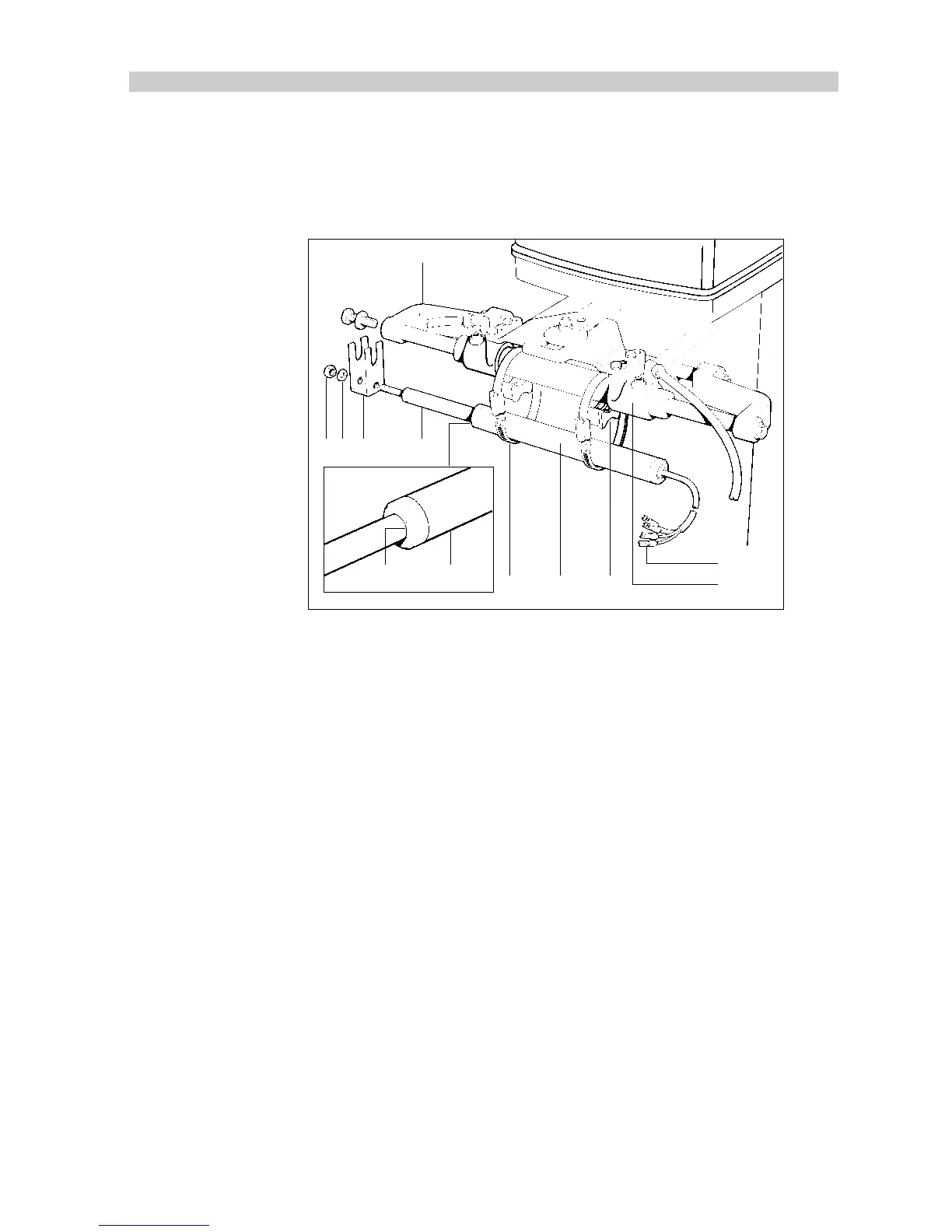

The Linear Feedback Transducer is designed for use with bullhorn type
outboard installations.
1110
2
78 3 9
564
12
1
D717-1
Mounting
1. Operate the steering system so that the ‘bullhorn’ ram (1) is positioned
amidships.
2. Release the hydraulic pressure from the vessels hydraulic steering
system (if required). Refer to the manufacturer’s instructions for
correct procedures.
3. Loosen the starboard bolt that secures the ‘bullhorn’ ram (1) shaft to
the end bracket (2).
4. Assemble the U-bracket (3) over the end bracket (2) and the shaft of
the ‘bullhorn’ ram (1).
5. Hand tighten the starboard ‘bullhorn’ bolt to hold the U-bracket (3) in
position.
6. Fully open the hose clamps (6) using a flat bladed screwdriver.
7. Hang the hose clamps (6) over the ‘bullhorn’ ram (1).
8. Site the spacers (4) on the ‘bullhorn’ ram (1) and hold, temporarily,
with adhesive tape.
9. Pull the shaft (9) out of the linear feedback transducer (5) until the
alignment mark (10) is level with the end of the body (11).
