24 TYPE 100/300 Operation and Installation Handbook
Type 3 Drive Units (12V)
Cable Length
(Distribution
panel to Course Computer)
Cable Gauge Copper Area
Up to 5m (16ft) 8 AWG 6 mm
Up to 7m (23ft) 6 AWG 10 mm
Up to 16m (52ft) 4 AWG 16 mm
81004-02
Type 3 Drive Units (24V)
Cable Length
(Distribution
panel to Course Computer)
Cable Gauge Copper Area
Up to 5m (16ft) 8 AWG 6 mm
Up to 7m (23ft) 6 AWG 10 mm
Up to 16m (52ft) 4 AWG 16 mm
81004-02

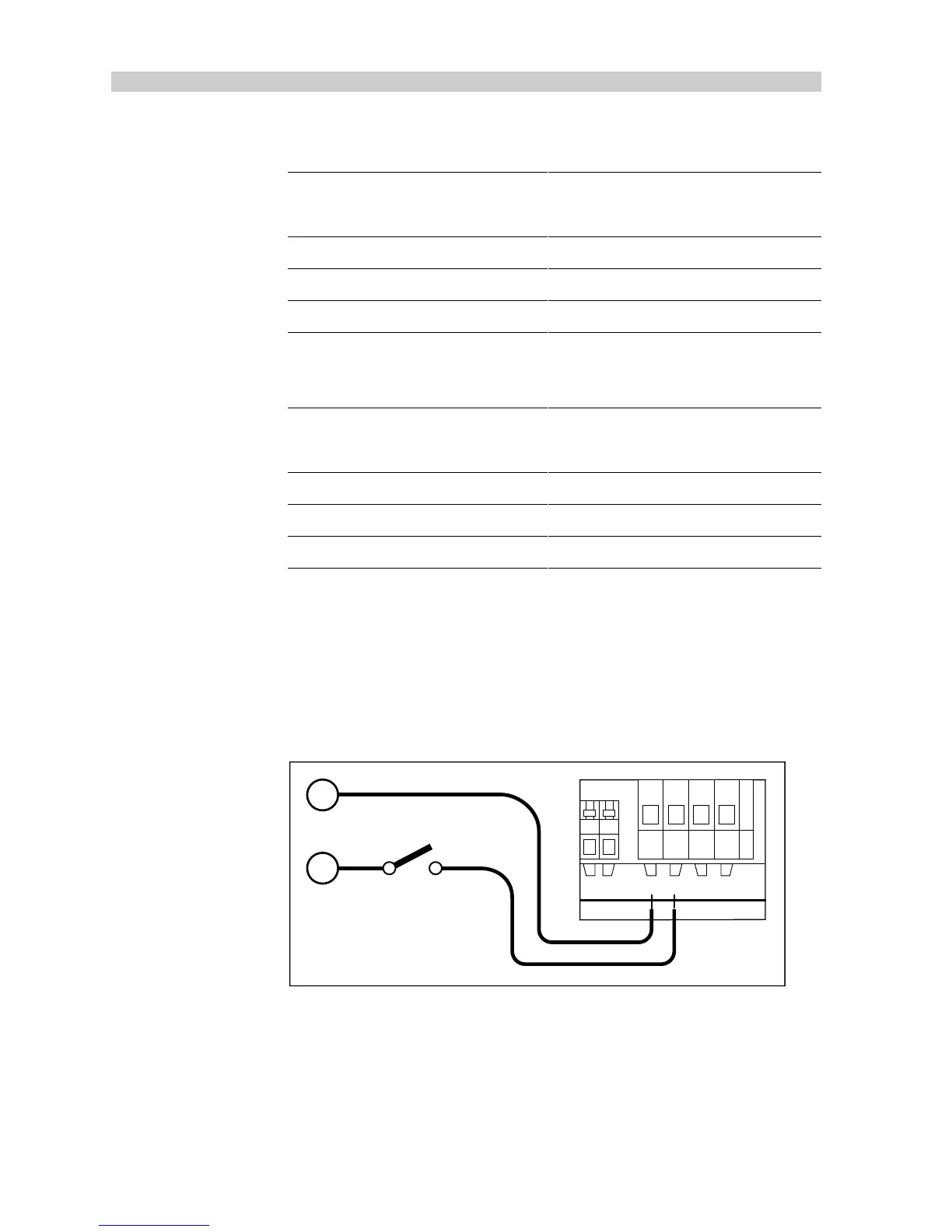

2. Remove the connector cover from the course computer.
3. Connect the power supply cable to the course computer power
terminals.
Note: The cable must be protected by a circuit breaker
(see table for size).
Power
Supply
Circuit
breaker
D882-1
CLUTCH MOTORPOWER
+–+ –
12
–
+
