TYPE 100/300 Operation and Installation Handbook
Cabling

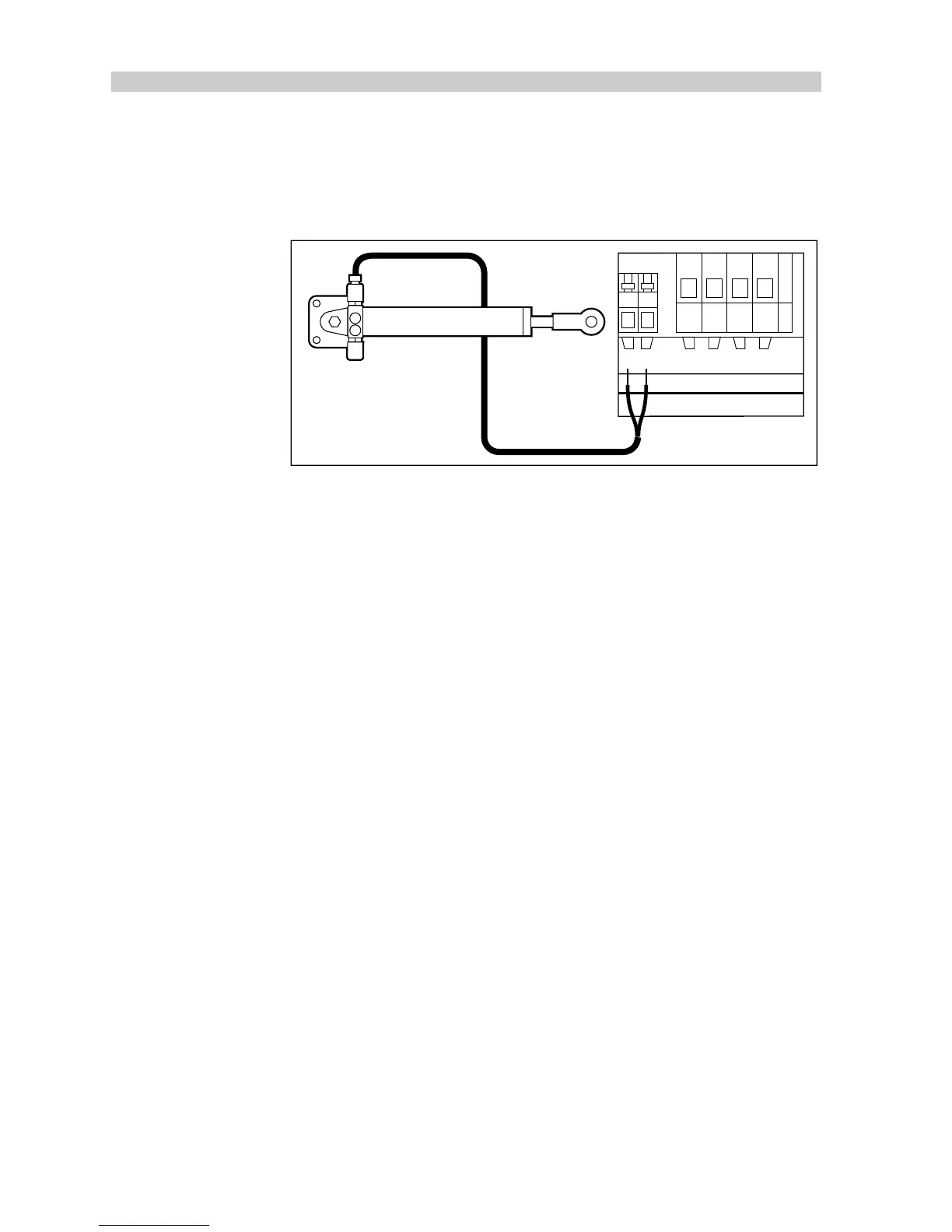

1. Run the pump and bypass valve cable back to the course computer.
2. Wire to the course computer clutch and motor connections.
CLUTCH MOTORPOWER
+–+ –
12
D917-1
Final Preparations Before use
1. Remove the reservoir cap and replace with the supplied standard cap.
2. Set the reservoir valve to the open position.
Caution:
Make sure the mechanical limits of the steering system stop
rudder movement before the cylinder reaches its end stops -
failure to do this will damage the steering cylinder and will invali-
date the warranty.
3. Switch the Autopilot to ‘Auto’ mode and, using the 10 degree course
change keys, steer hard-over to hard-over to check for correct
operation and any possible leaks.
4. Set-up the autopilot end stops as described in the autopilot installation
handbook.
WARNING:
KEEP CLEAR OF MOVING STEERING LINKAGES AT ALL TIMES.
