Chapter 2: Installation
61
Mercruiser/OMC/Yamaha
1. Remove the locating pin that attaches the cable end sheath to the tiller
end block.
2. Replace the locating pin with the girdle support bracket as shown.

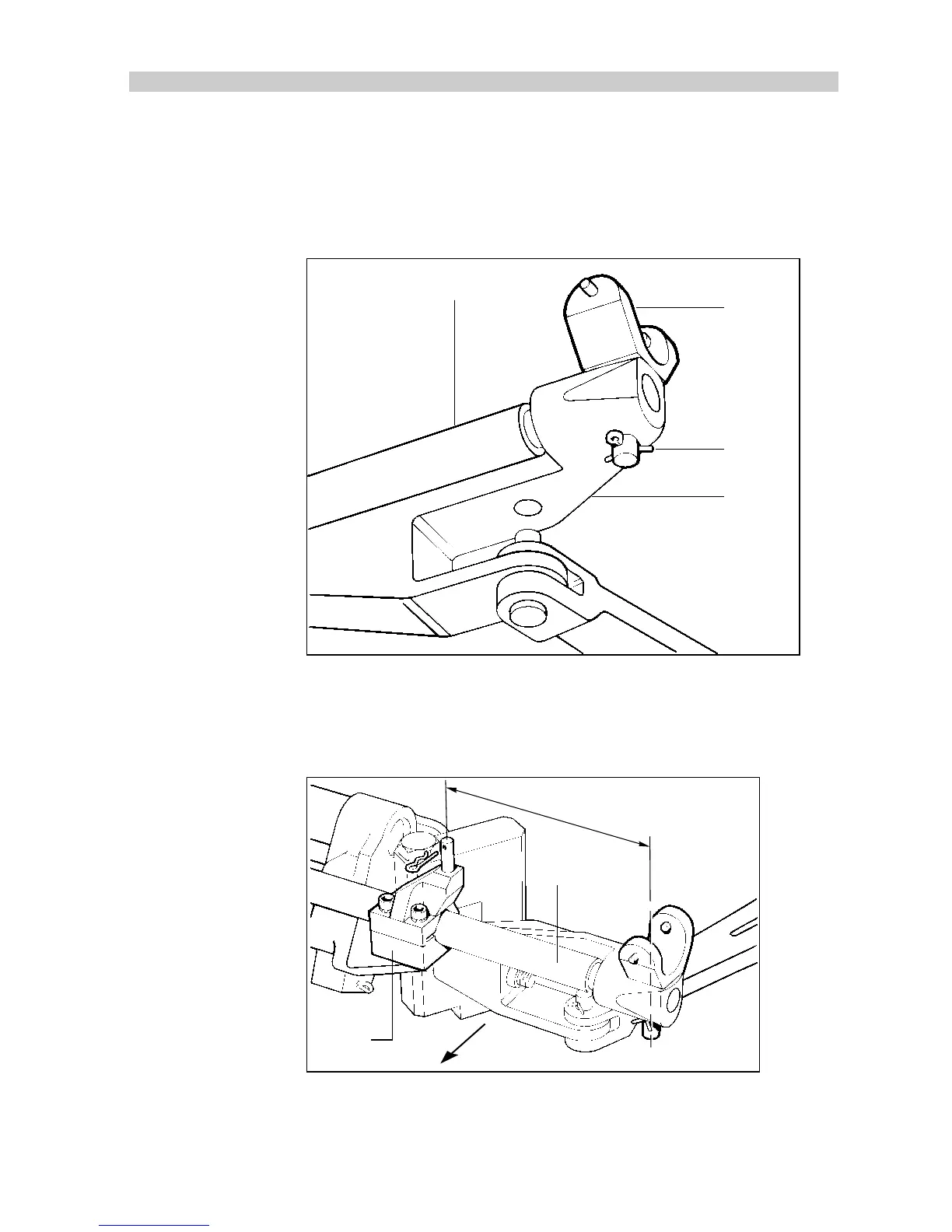

Girdle
support
bracket
Tiller
end block
Split
pin
Cable end sheath
R745a-1
3. Secure the assembly with the split pin (supplied).
4. With the helm turned hard to port, assemble the adaptor pin bracket
to the cable end sheath as shown.
D1003-1
Adaptor
bracket
Forward
Cable end
sheath
6.5in (165mm)
Note: The securing bolts must be on the front or bow of the boat side
cable end sheath. Also, the bracket should be positioned 6.5in (165mm)
from the girdle support bracket.
