TYPE 100/300 Operation and Installation Handbook
Type 2 Drive Unit (24V)
Cable Length (Drive Unit
to Course Computer)
Cable Gauge Copper Area
Up to 3m (10ft) 12 AWG 2.5 mm
Up to 5m (16ft) 10 AWG 4 mm
Up to 7m (23ft) 8 AWG 6 mm
Up to 10m (32ft) 6 AWG 10 mm
Up to 16m (52ft) 4 AWG 16 mm
81004-05
Stern drive Actuator
The stern drive actuator can be fitted to power assisted Stern drive
systems made by Volvo-Penta, Mercruiser, OMC and Yamaha. Different
installation kits are available to cover most of these installations.
Note:
Older Volvo steering systems (Pre type 872215) require an adaptor
bracket (D129).
Mounting
Volvo (Pre type 872215)
Fitting to this type of engine requires an adaptor bracket (M81139).
The stern drive actuator should be connected to the centre hole on the
tiller arm. On twin engine installations, this is the position used to connect
the engine tie bar to link the two tiller arms.

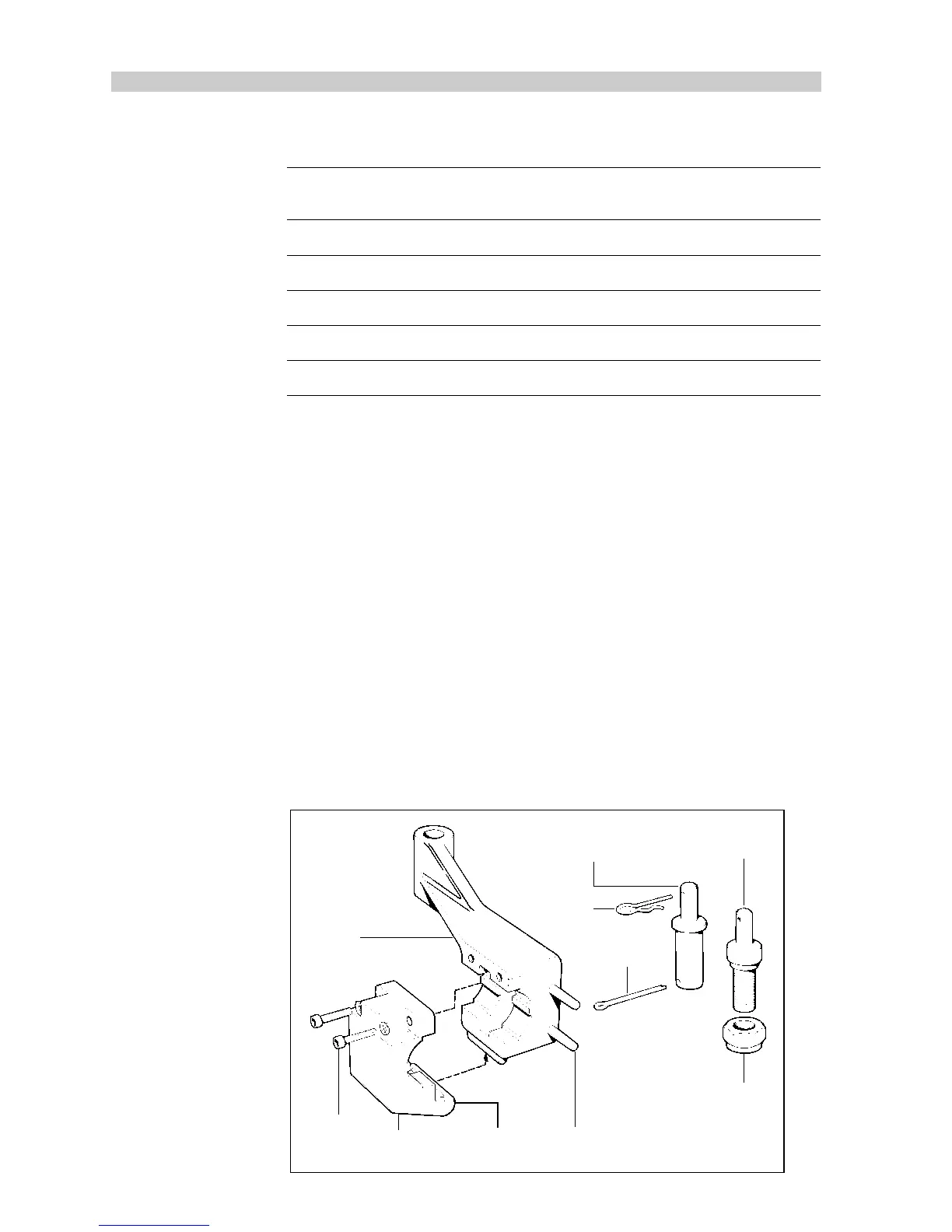

Hexagonal
key bolt
(2 off)
Spring
washer (2 off)
Bracket
clamp
Mounting
bracket
Location
pin
Nyloc nut
Split pin
Small
spring
clip
Adaptor pin
(Multi-engine mount)
Adaptor pin
(Single engine mount)
D768-1
To Next Page
