TYPE 100/300 Operation and Installation Handbook

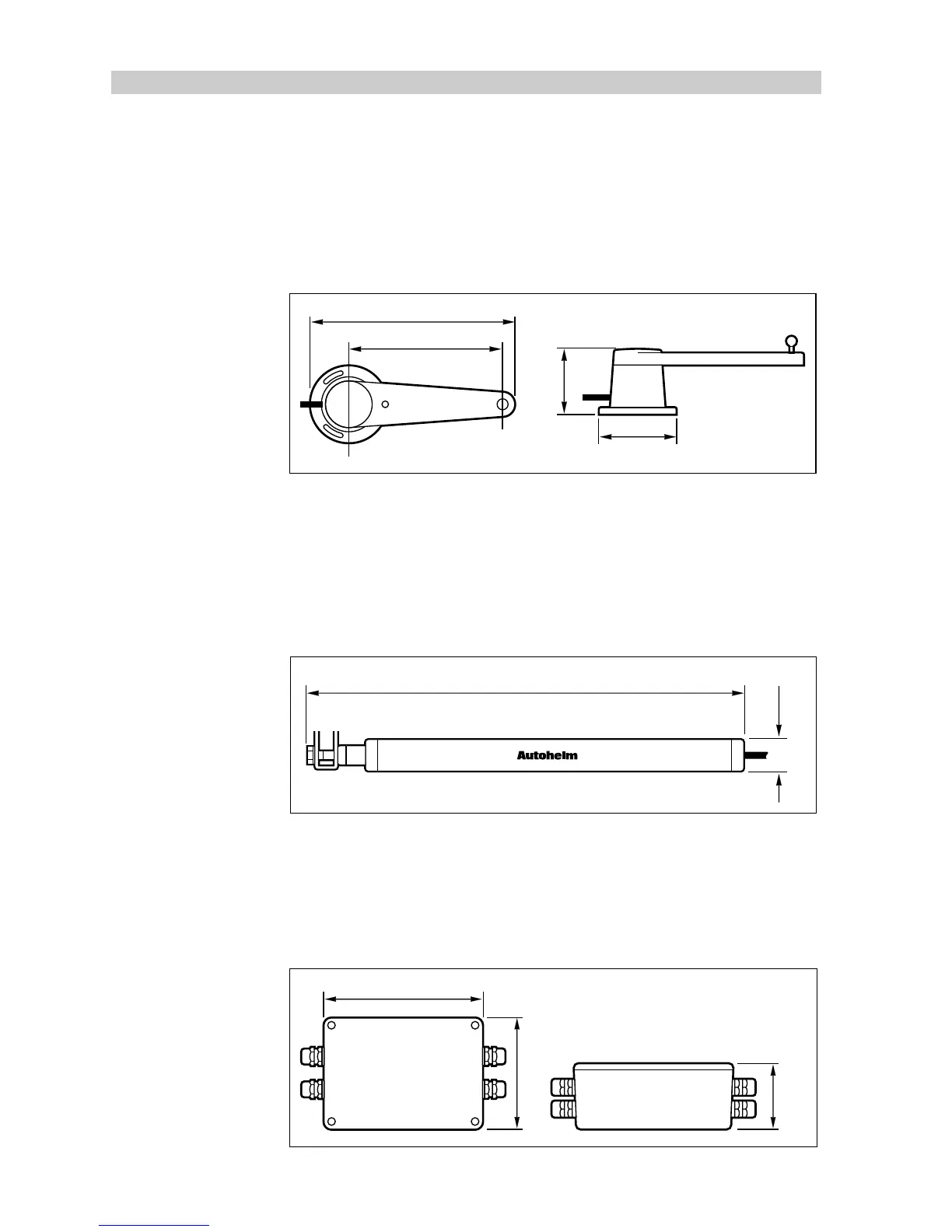

1.5 Rotary Rudder Reference Transducer
The rudder reference transducer provides the course computer with the
precise position of the vessels rudder. The unit is mounted on a suitable
base adjacent to the rudder stock. Its use is mandatory on all installations,
except when a linear rudder reference transducer is connected.
139.7mm (5.5in)
152mm (6in)
69.5mm (2.7in)
61mm (2.4in)
D730-1
1.6 Linear Feedback Transducer
The linear feedback transducer is designed for installations on ‘bullhorn’
style hydraulic outboard steering systems. The unit is totally weather proof
and mounted on the bullhorn ram. Its use is mandatory on all hydraulic
outboard installations.
425mm (16.75in)
32mm (1.3in)
D869-1
TM
1.7 Type CR Interface Unit
The course computer can be connected to the solenoids on a constant
running hydraulic pump using the type CR interface. The unit also provides
connections to energise a solenoid operated bypass valve.
125mm (5.9in)
100mm (3.95in)
60mm
(2.37in)
D734-1
