Auxiliary Alarm (Z035)
The autopilot is provided with a comprehensive automatic off-course alarm
system that sounds from all control units. This provides sufficient audible
warning under most conditions. However, in cases where a high powered
alarm is required, an auxiliary alarm can be fitted. The auxiliary alarm is
connected to the SeaTalk bus via the NMEA interface box and will sound
whenever the autopilot transmits one of the following alarm conditions.
• Autopilot Off Course
• Watch Alarm
• Wind Shift
• Low Battery
• Large Cross Track Error
• NMEA Data Error
• No Autopilot Actuator Connected
• Stern drive Auto Release
• Waypoint Change Alarm

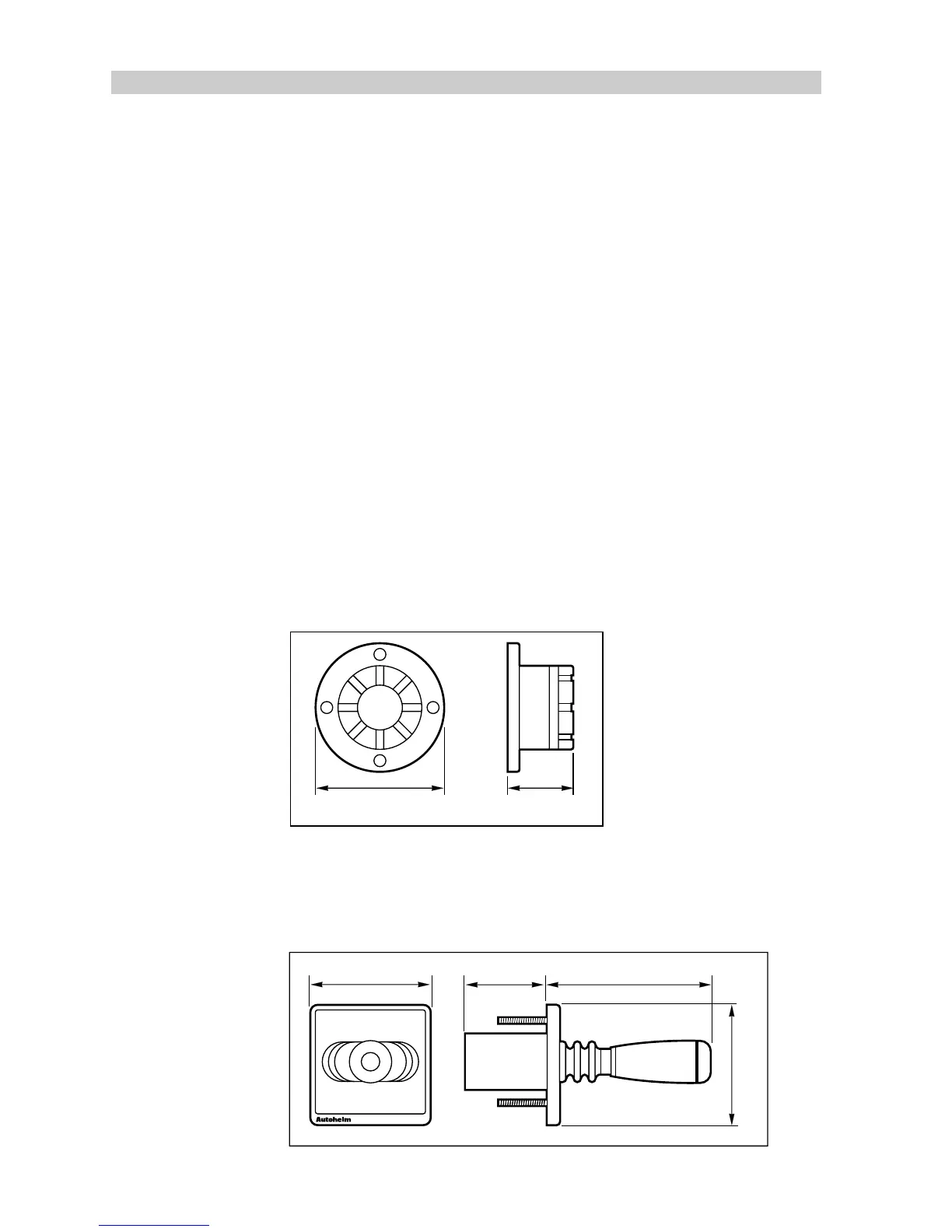

45mm (1.8in)85mm (3.35in)
D732-1
Joystick (Z147)
The Joystick is an electro mechanical remote steering unit that uses the
course computer and its drive unit to power steer the vessels rudder.
JOYSTICK
110mm (4.3in)
76mm (3in)
157mm (6.2in)
110mm (4.3in)
D734a-1
