TYPE 100/300 Operation and Installation Handbook
Cabling
The rotary actuator has electrical connections for both the drive motor
(red/black cores) and clutch (twin cable with blue/red cores). Using a
suitable size cable (see tables), route back to the course computer and
connect to the clutch and motor terminals.

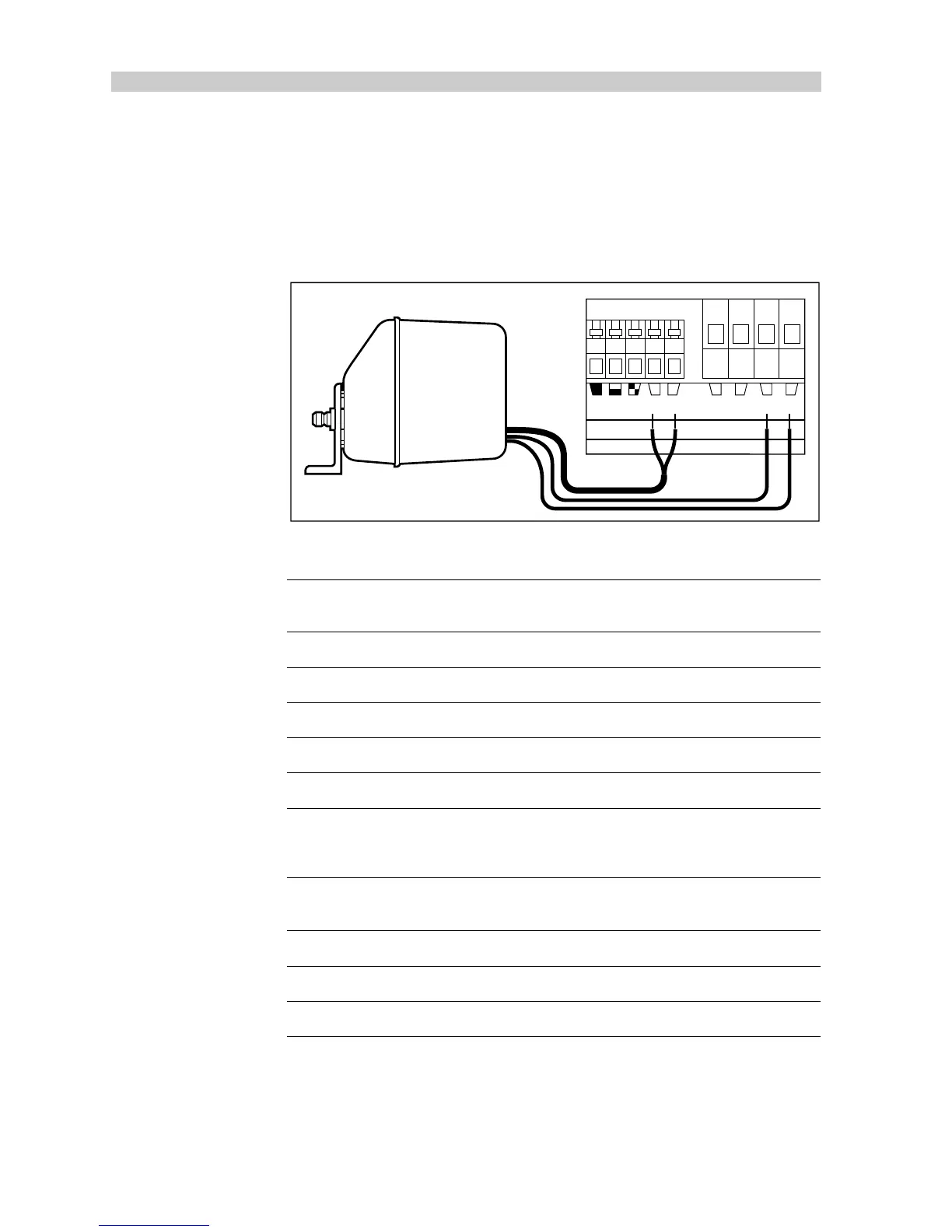

D902-1
SeaTalk CLUTCH MOTORPOWER
+–+ –
12
Type 1 Drive Unit
Cable Length (Drive Unit
to Course Computer)
Cable Gauge Copper Area
Up to 3m (10ft) 12 AWG 2.5 mm
Up to 5m (16ft) 10 AWG 4 mm
Up to 7m (23ft) 8 AWG 6 mm
Up to 10m (32ft) 6 AWG 10 mm
Up to 16m (52ft) 4 AWG 16 mm
81004-05
Type 2 Drive Unit (12V)
Cable Length (Drive Unit
to Course Computer)
Cable Gauge Copper Area
Up to 5m (16ft) 8 AWG 6 mm
Up to 7m (23ft) 6 AWG 10 mm
Up to 16m (52ft) 4 AWG 16 mm
81004-06
