28 TYPE 100/300 Operation and Installation Handbook
2.3 Fluxgate Compass

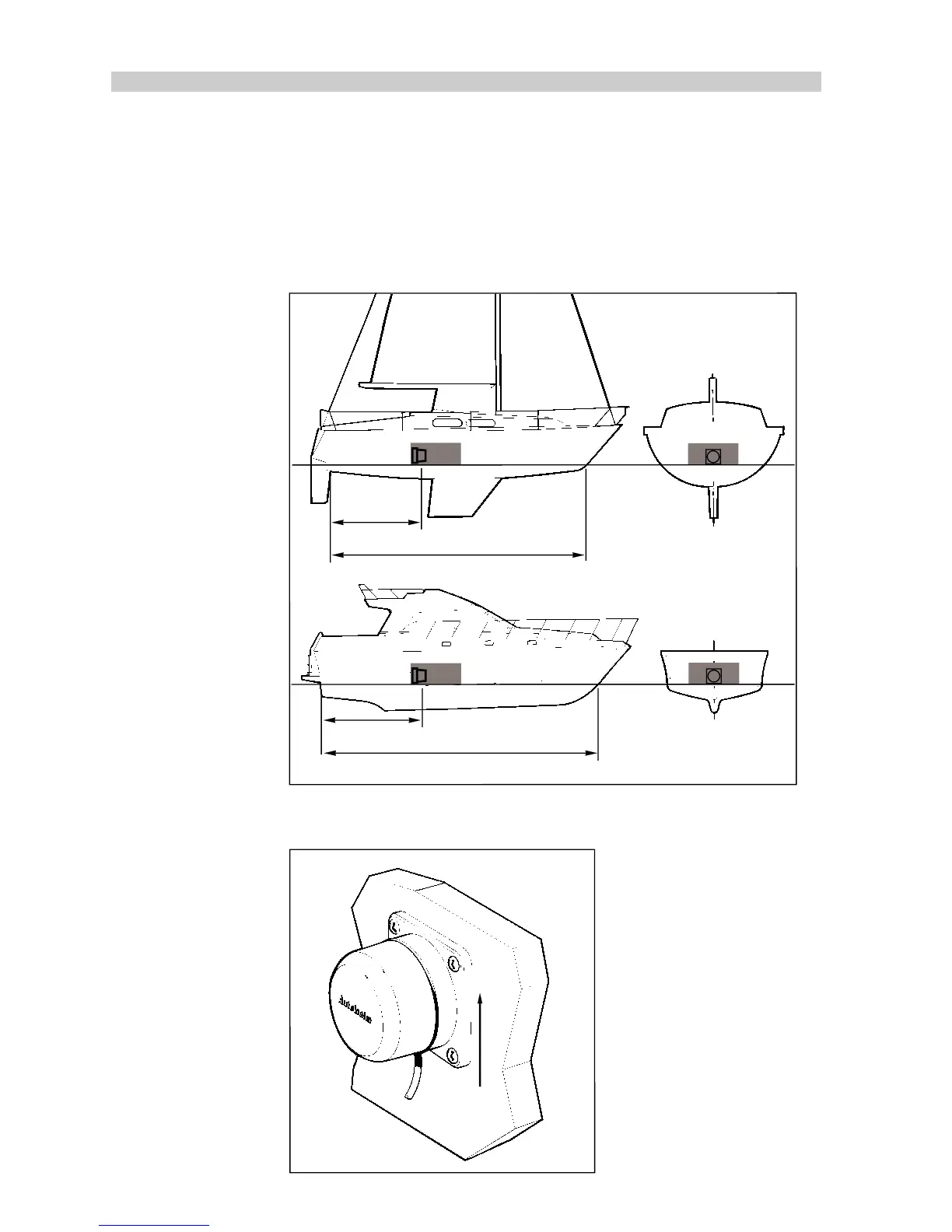

Correct positioning of the fluxgate compass is crucial if ultimate perform-
ance is to be achieved. To minimise gimbal disturbance, the fluxgate
should ideally be positioned as near as possible to the pitch and roll centre
of the vessel.
0.3L to 0.5L
L
0.3L to 0.5L
L
X
X
Y
Y
D194-2
Mounting
D193-2
Vertical
