Raymarine E70492 User Manual

9.4xM4x35screws(Forbasestationmounting).
10.6xM4x12screws(ForHandsetholsterandhookplatemounting).
11.DeviceNettoSeaTalkng®1m(3.28ft)adaptorcable.
12.Handsethookplate.
13.Throughpanelcablemountingplate.
14.Throughpanelcablemountingplategasket.
15.Throughpanelcablemountingnut.
16.Throughpanelcablemountingplatescrewsx3.
17.Throughpanelcablemountingdustcap.

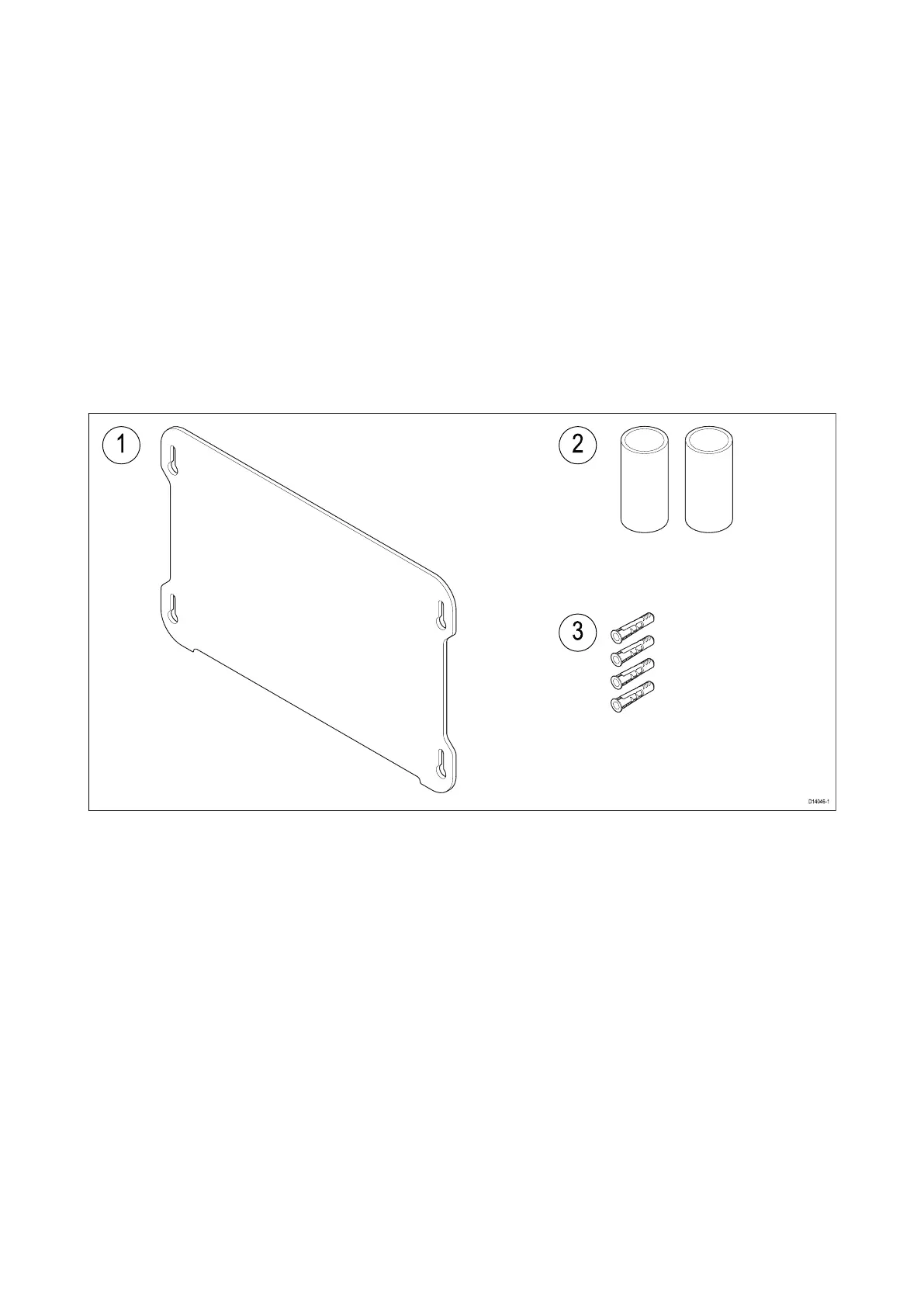

Additionalpartssupplied
Thefollowingadditionalpartsaresuppliedwithyourproduct.Thesepartsaretobeusedwhen
installingyourRay90/Ray91basestationonametalsurface.
1.Insulationsheet(Tobefittedbetweenbasestationandametalmountingsurface).
2.Heatshrinktubex2(T obefittedoverVHFandGNSS(GPS)antennaconnections).
3.Insulationplugs(T obefittedtomountingholestoinsulatefixingsscrews).
Pleaserefertodocument82385forspecificinstructionsrequiredwhenmountingonmetalstructure.
20

Raymarine E70492 Specifications

General

Brand	Raymarine
Model	E70492
Category	Radio
Language	English
