4.4Handsetstationconnection
AWiredhandsetcanbeconnectedtoeachHandsetstationconnection(HS1/HS2).Y ourradiois
suppliedwiththeequipmenttocreateafullhandsetstation(i.e.:Wiredhandset,Adaptorcableand
Passivespeaker).Additionalaccessoriescanbepurchasedtocreateasecondwiredhandsetstation.

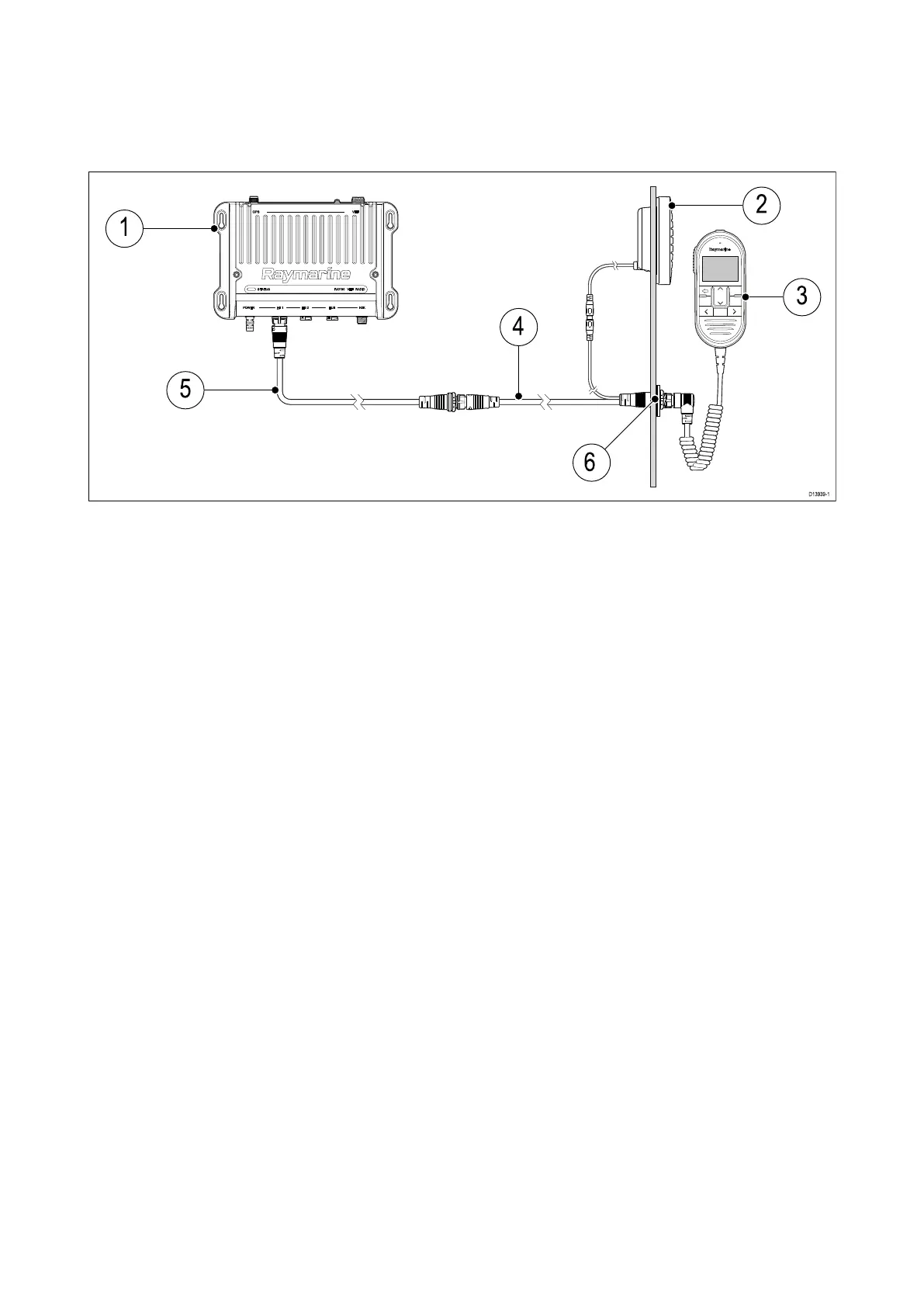

1.Basestation
2.Passivespeaker(1xsuppliedandavailableasaccessory:A80542)
3.Wiredhandset(1xsuppliedandavailableasaccessory:A80289)
4.HandsetstationadaptorcablewithRCAAudio400mm(1.3ft)(1xsuppliedandavailableas
accessory:A80297)
5.Wiredhandsetextensioncable(Availableoptionalaccessories:A80290–5m,A80291–10
mor15–A80292)
6.Panelmountfixingskit(1xsuppliedandavailableasaSpare:R70438)
Connectinghandsetsandcables
Followthestepsbelowtoconnecthandsetsandextensioncablestogether.
1.Iffitted,unscrewandremovethedustcapfromtherelevantconnector.
2.Ensurethecableconnectorsarecorrectlyorientated,beforeinsertion.
3.Ensureconnectorsarefullyinserted,beforelocking..
4.TightenlockingcollarsbyRotatingclockwise.
Handsetextensioncables
Handsetstationcablingcanbeextendedusingapprovedextensioncables.
ThemaximumlengthofcablefromtheHandsettotheBasestationshouldnotexceed50m(164ft)
