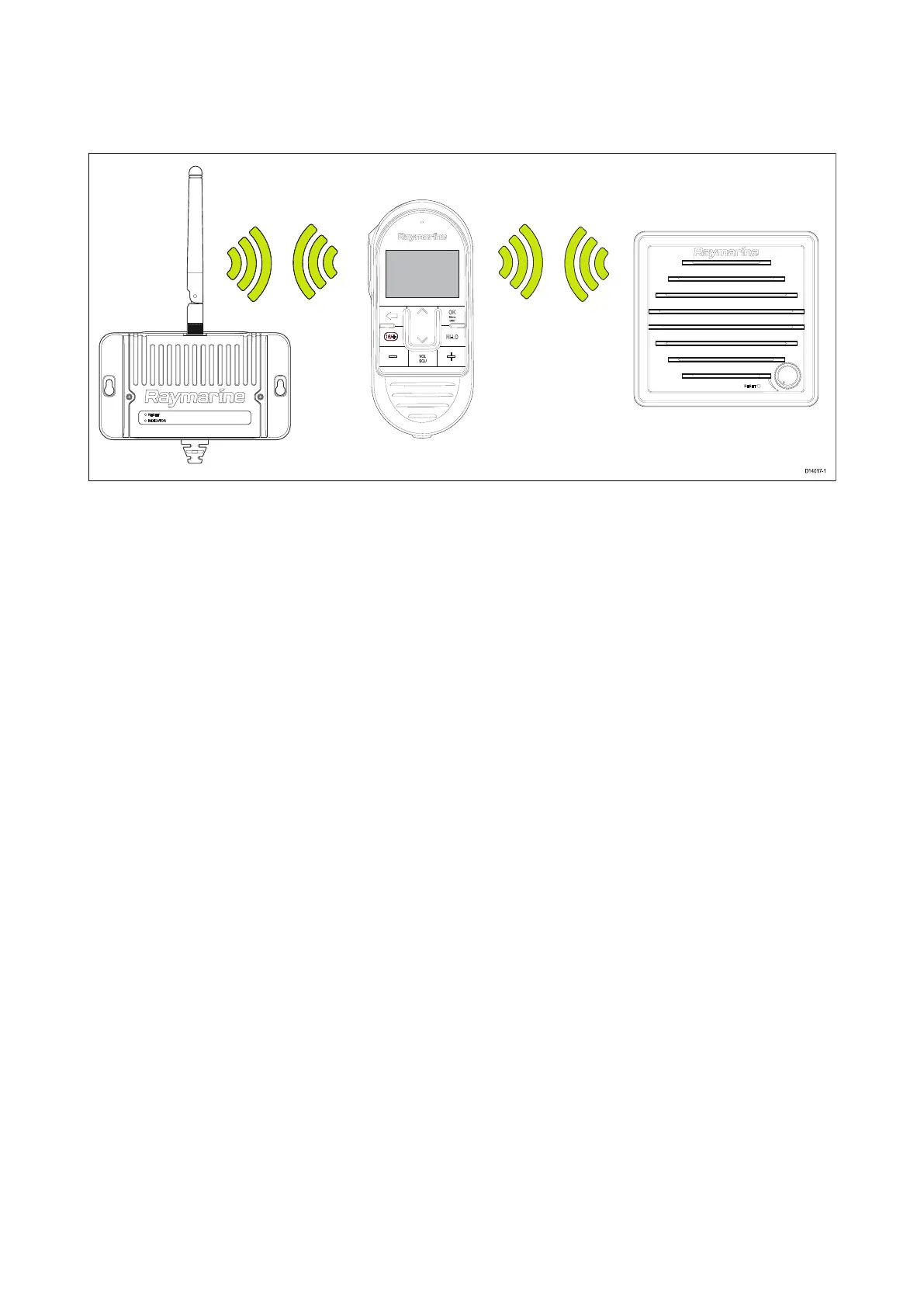

4.12Wirelesshandsetconnections

TheWirelesshandsetconnectswirelesslytotheWirelesshub,andtheWirelessspeakerconnects

wirelesslytotheWirelesshandset.

Upto3WirelesshandsetscanbeconnectedtotheWirelesshub.RefertoConnectingawireless

handsettothehub

fortheconnectionprocedure.

OneWirelessspeakercanbeconnectedtoeachWirelesshandset.RefertoConnectingthe

wirelessspeakertotheWirelesshandset

fortheconnectionprocedure.

Cablesandconnections63
