4.10Wirelesshubconnection

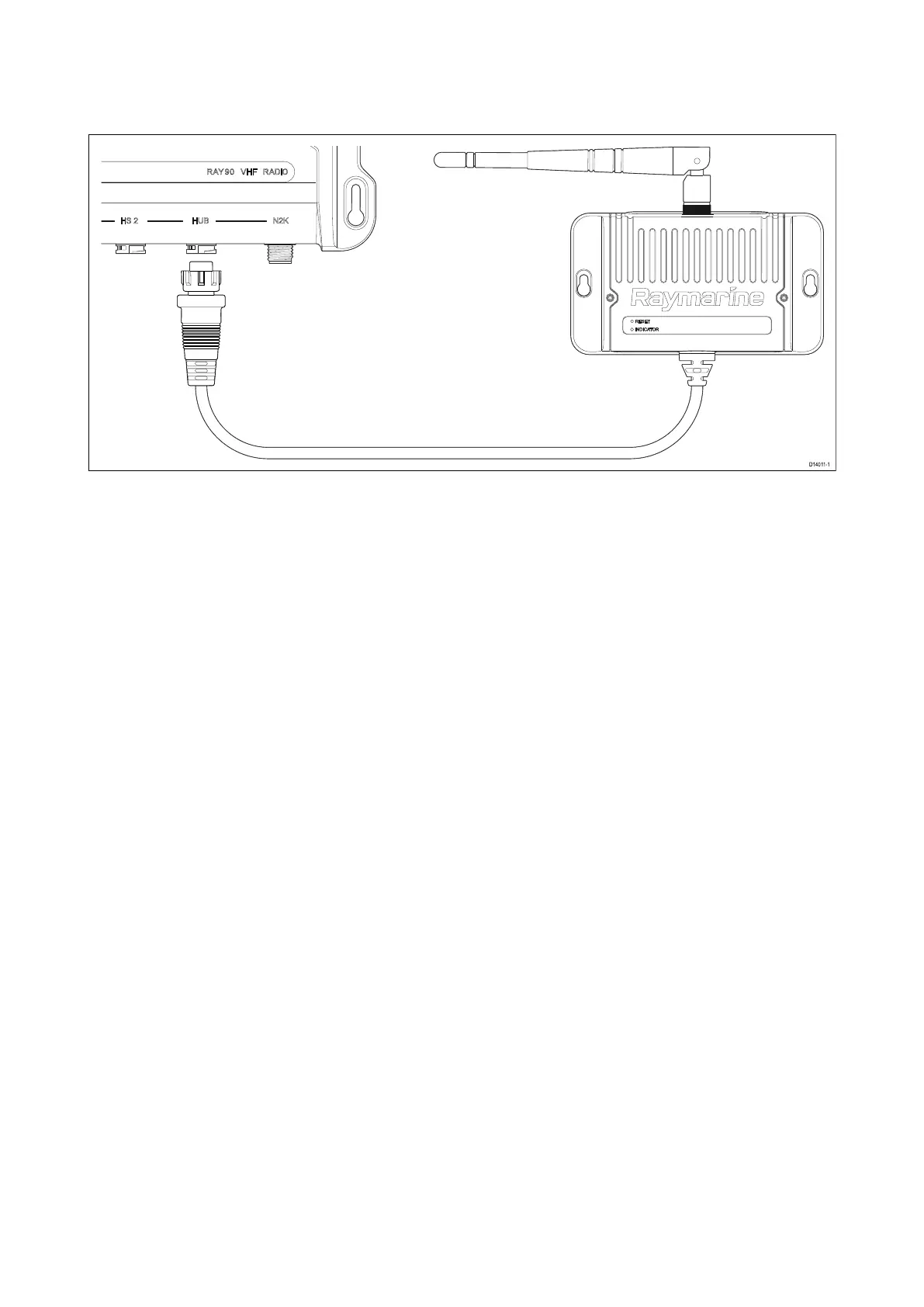

TheWirelesshubconnectsdirectlytotheRay90/Ray91’sHubconnection.

TheWirelesshubisrequiredtoallowconnectionofwirelesshandsetstationstotheRay90/Ray91

basestation.

Cablesandconnections61
