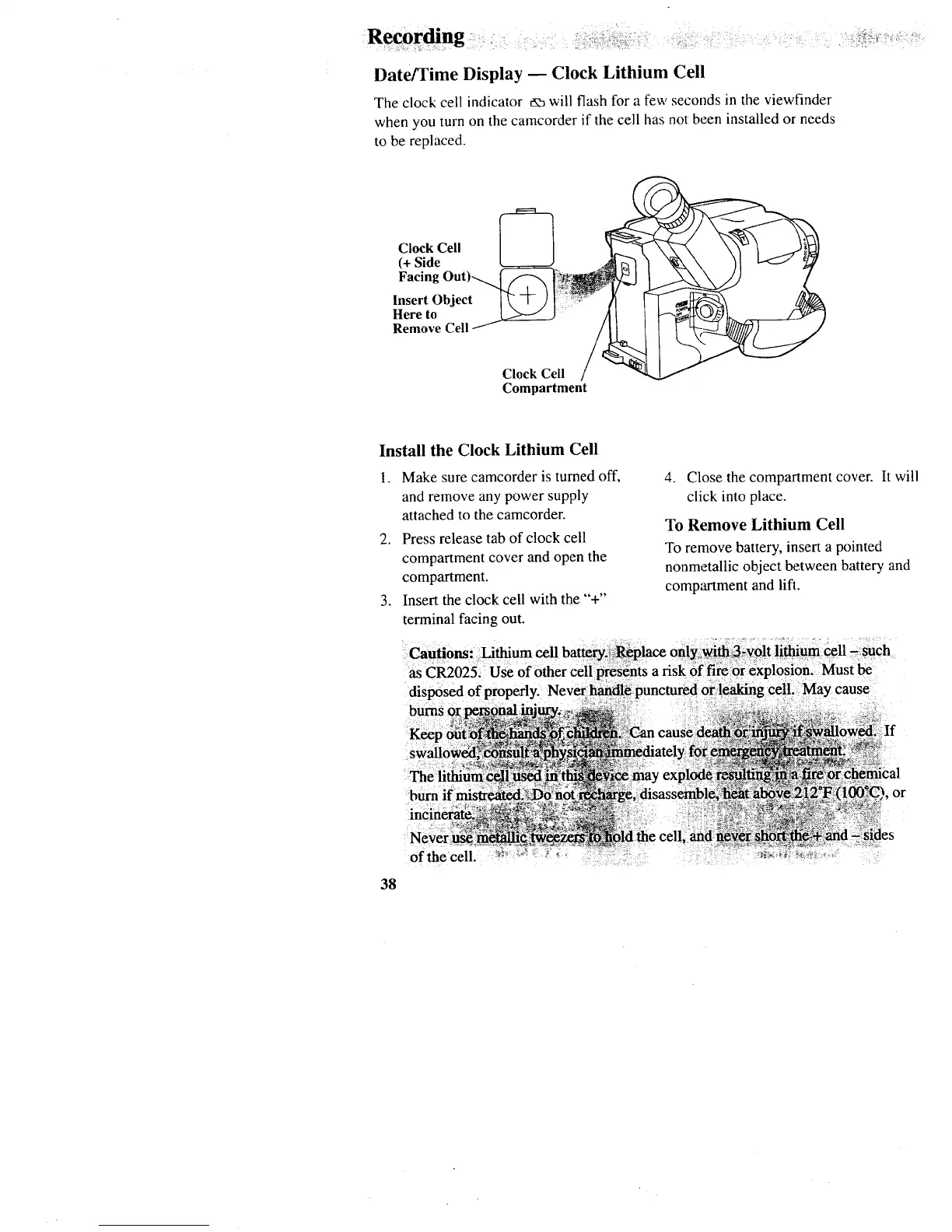

Date/Time Display -- Clock Lithium Cell
The clock cell indicator ts_ will flash for a few seconds in the viewfinder
when you turn on the camcorder if the cell has not been installed or needs
to be replaced.
Clock Cell
(+ Side
Facing
Insert Object
Here to
Remove Cell
Clock Cell
Compartment
Install the Clock Lithium Cell
1. Make sure camcorder is turned off,
and remove any power supply
attached to the camcorder.
2. Press release tab of clock cell
compartment cover and open the
compartment.
3. Insert the clock cell with the "+"
terminal facing out.
4. Close the compartment cover. It will
click into place.
To Remove Lithium Cell
To remove battery, insert a pointed
nonmetallic object between battery and
compartment and lift.
May cause
Keep
or
N{
ofthecell. _
38
cell, and
To Next Page
