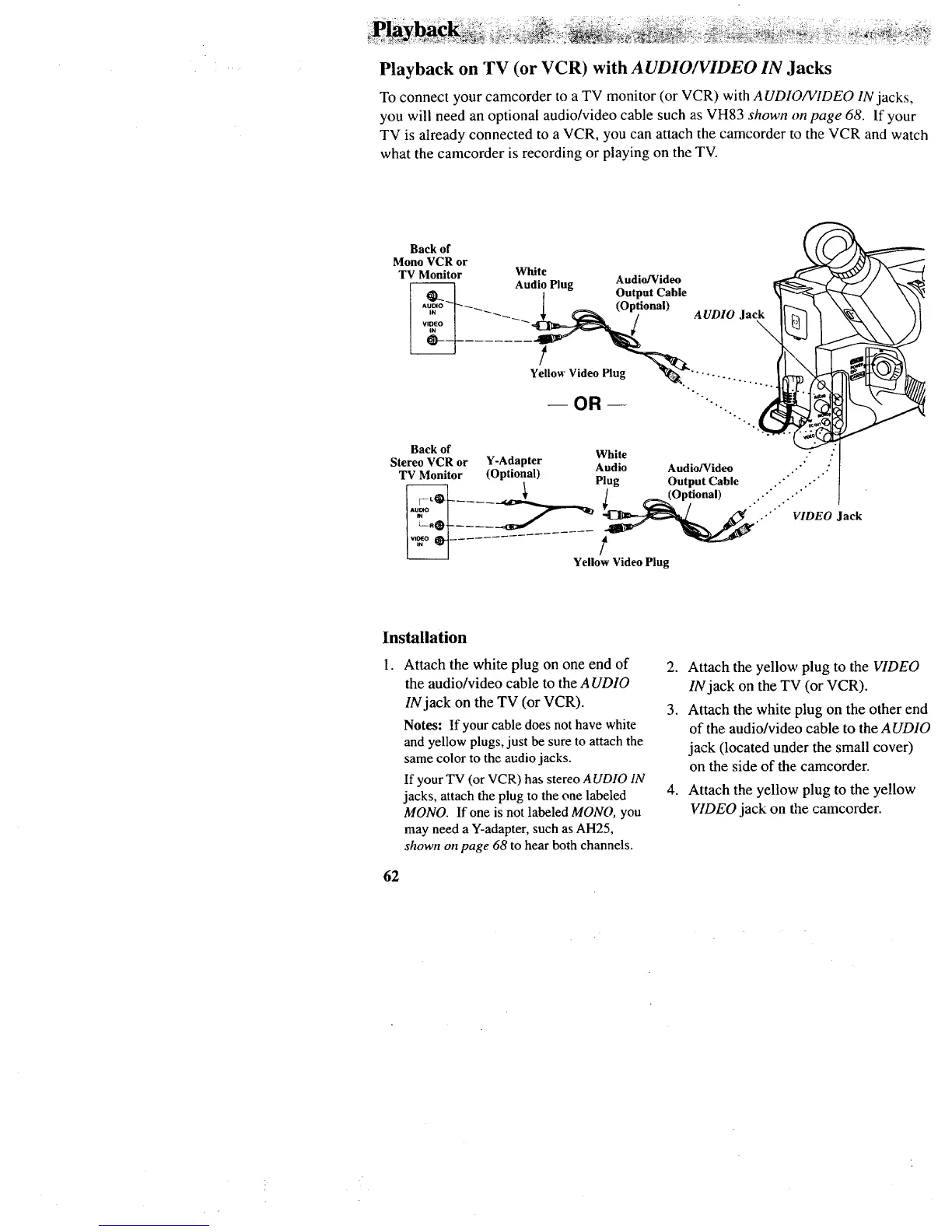

Playback on TV (or VCR) with AUDIO/VIDEO IN Jacks
To connect your camcorder to a TV monitor (or VCR) with AUDIO/VIDEO IN jacks,
you will need an optional audio/video cable such as VH83 shown on page 68. If your
TV is already connected to a VCR, you can attach the camcorder to the VCR and watch
what the camcorder is recording or playing on the TV.
Installation
.
Attach the white plug on one end of
the audio/video cable to the AUDIO
IN jack on the TV (or VCR).
Notes: If your cable does not have white
and yellow plugs, just be sure to attach the
same color to the audio jacks.
If your TV (or VCR) has stereo AUDIO IN
jacks, attach the plug to the one labeled
MONO. If one is not labeled MONO, you
may need a Y-adapter, such as AH25,
shown on page 68 to hear both channels.
62
.
3.
Attach the yellow plug to the VIDEO
IN jack on the TV (or VCR).
Attach the white plug on the other end
of the audio/video cable to the AUDIO
jack (located under the small cover)
on the side of the camcorder.
4. Attach the yellow plug to the yellow
VIDEO jack on the camcorder.
