8.2 DRIVE MECHANISM

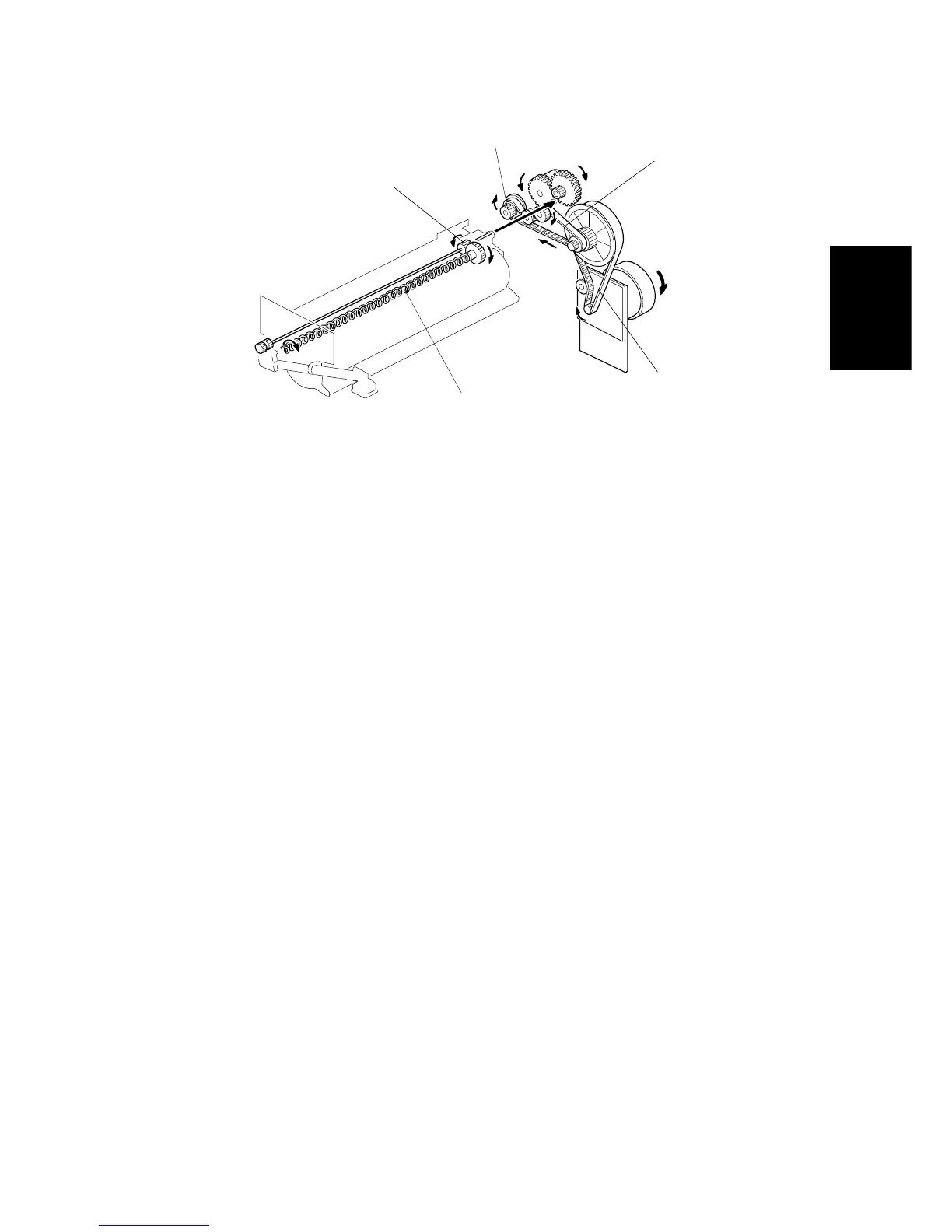

Drive from the main motor is transmitted to the cleaning unit drive gear [A] by
the timing belts [B] and [C] and the joint gear [D]. The cleaning unit drive
gear [A] then transmits the drive to the toner collection coil [E]. The two
gears at the front end of the cleaning unit drive gear shaft are used to move
the cleaning blade from side to side and to drive the recycled toner transport
coil.
[A]
[D]
[C]
[B]
[E]
Detailed
Descriptions
STM 2-71 A156/A160/A162
