2.Detailed Descriptions
98
Switches
SW
to shut it off.
Roll Away Cart
Set SW
Detects when the tray cart is in the stacker. If the tray cart is not set inside the
stacker, the power supply to the tray lift motor and the stacker drive system
remains off.
Breaker Switch
Shuts down the operation of the stacker in the event of a power surge.

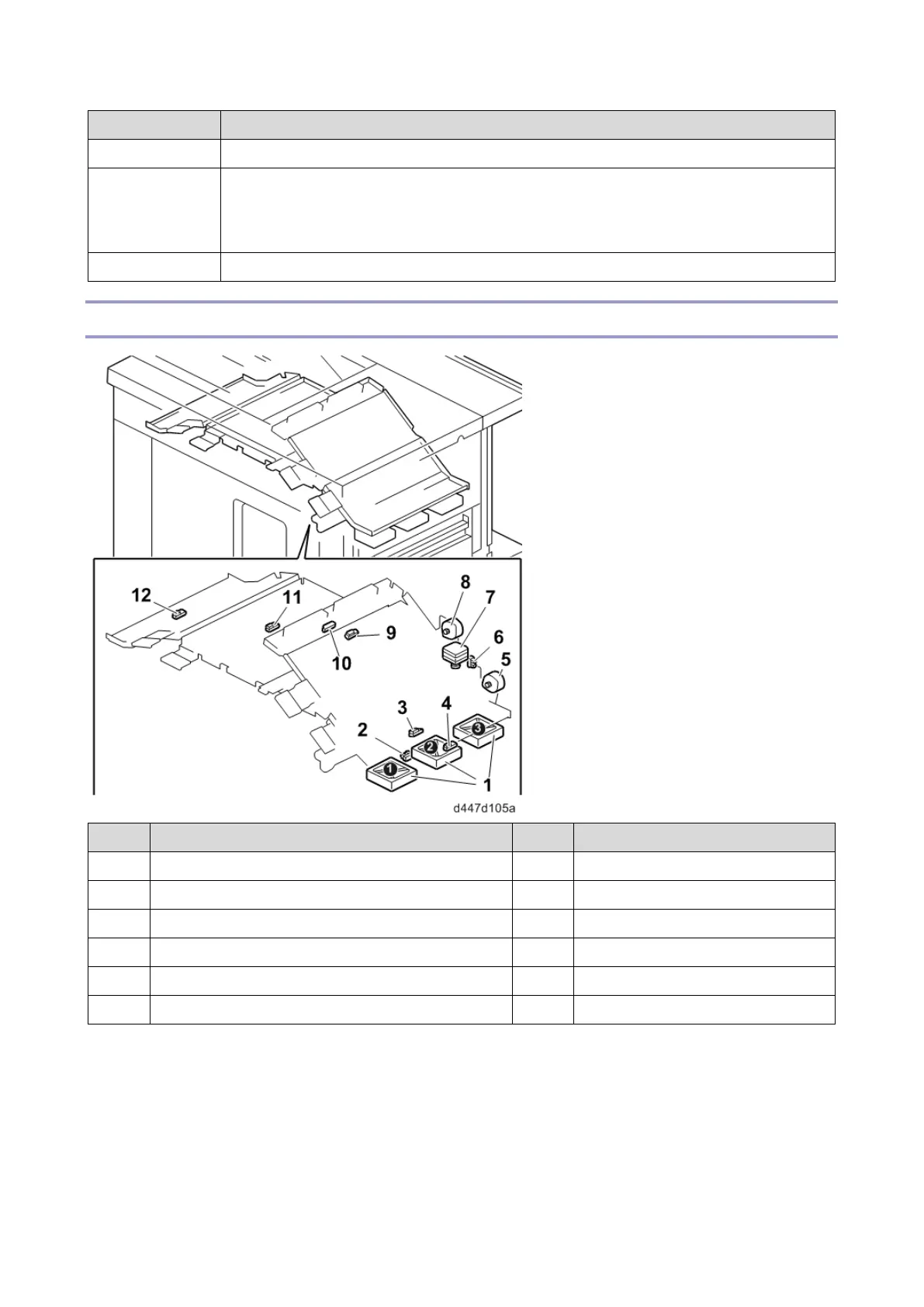

Paper Path
No.
Name
No.
Name
1.
Paper Cooling Fan Motor 1, 2, 3
7.
Shift Motor
2.
Shift Tray Exit Sensor
8.
Proof Tray JG Motor
3.
Paper Height Sensor
9.
Proof Tray Exit Sensor
4.
Tray High Limit Switch
10.
Proof Tray Full Sensor
5.
Shift Tray JG Motor
11.
Transport Sensor
6.
Shift HP Sensor
12.
Exit Sensor
