Ricoh SK5040 User Manual

1.Replacement and Adjustment
22
Proof Tray
Motors
Proof Tray JG Motor
Preparation
Remove these parts:
 Rear lower cover (Rear Lower Cover, Rear Upper Cover)
 Rear upper cover (Rear Lower Cover, Rear Upper Cover)

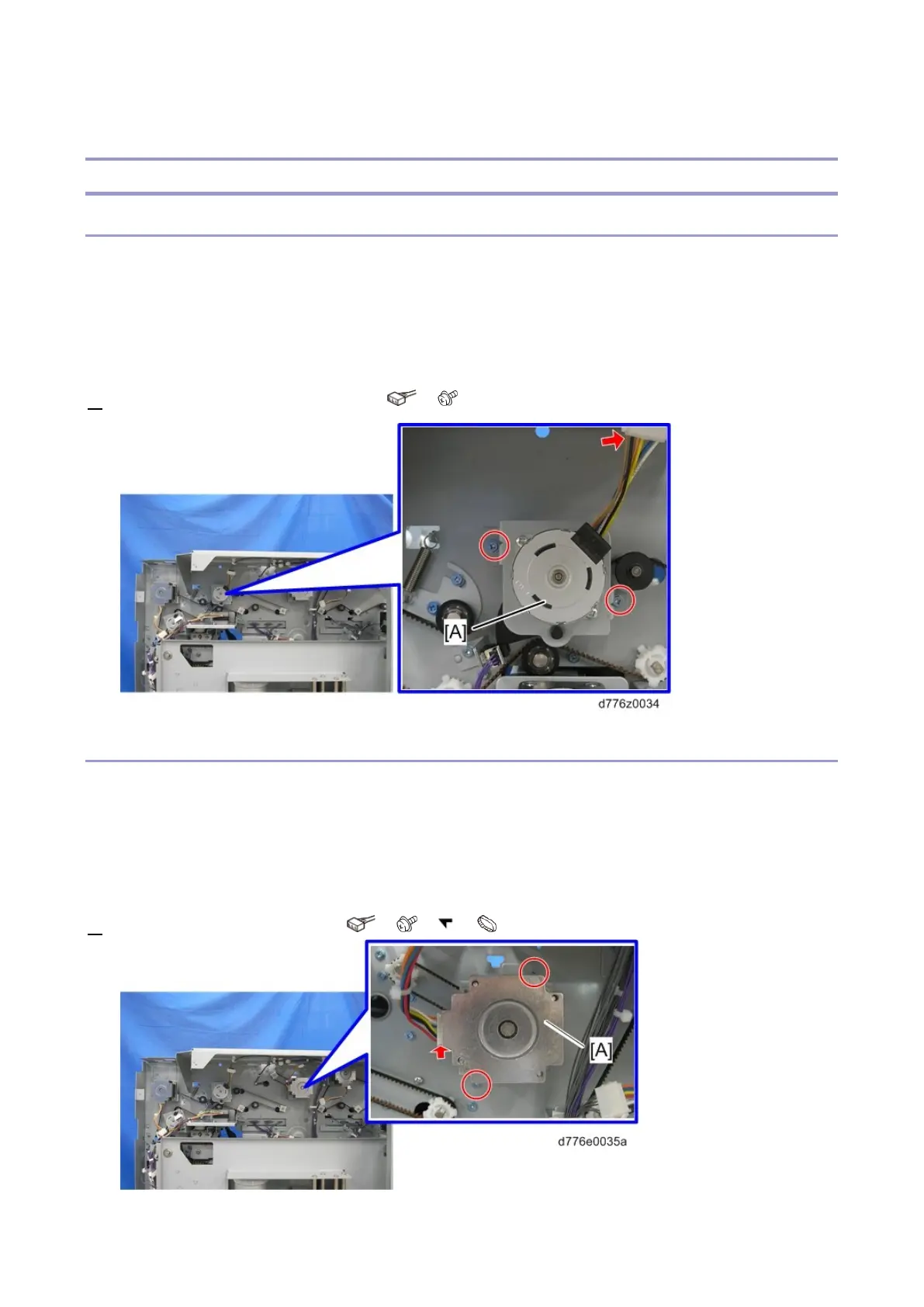

1. Remove the proof tray JG motor [A] ( x1, x2)
Proof Tray Exit Motor
Preparation
Remove these parts:
 Rear lower cover (Rear Lower Cover, Rear Upper Cover)
 Rear upper cover (Rear Lower Cover, Rear Upper Cover)
1. Remove the motor bracket [A] ( x1, x2, x1, x1)
