Ricoh SK5040 User Manual

1.Replacement and Adjustment
40
Paper Jogging

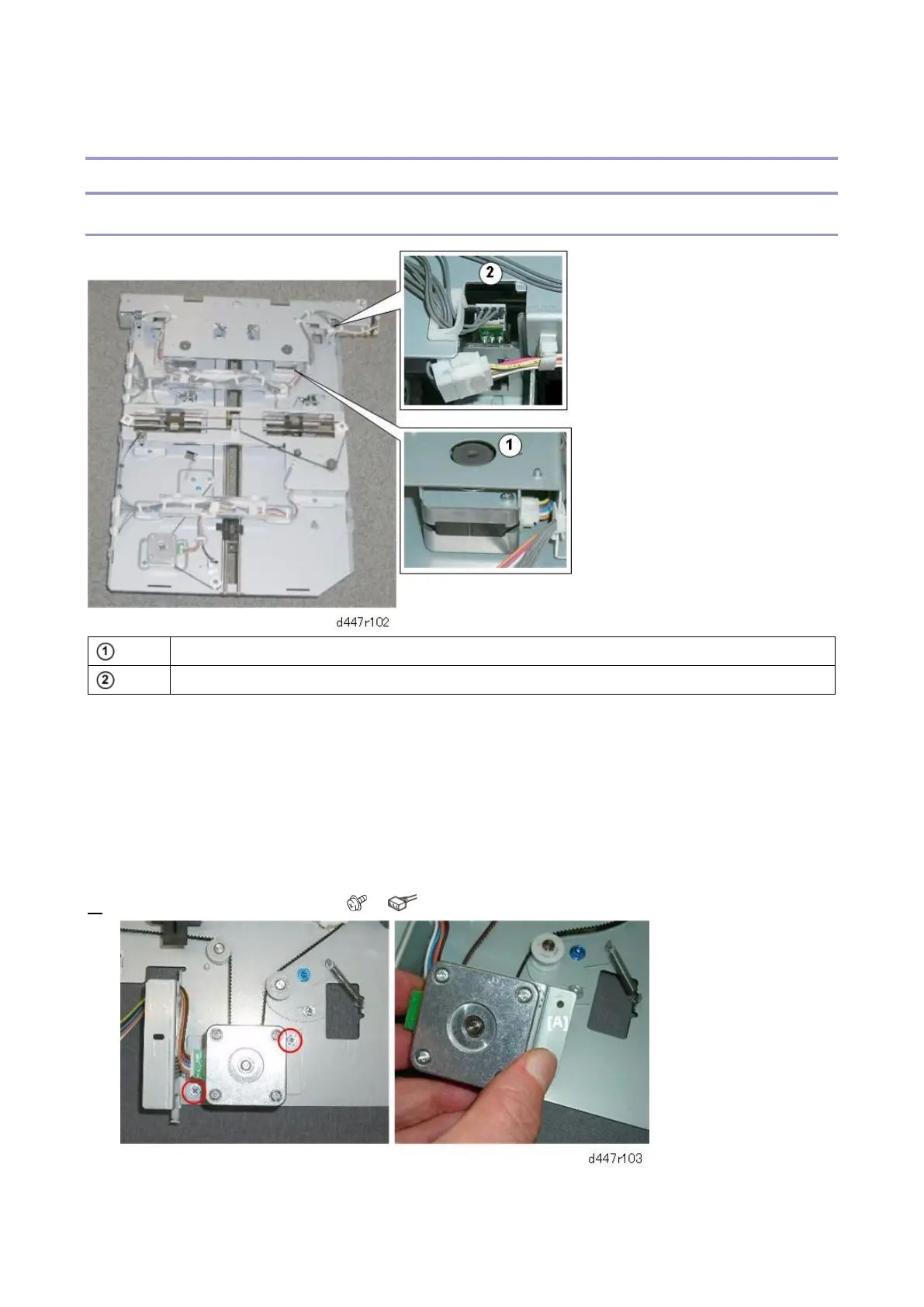

Main Jogger Front Fence Motor, Front Fence HP Sensor
Main Jogger Front Fence Motor
Main Jogger Front Fence HP Sensor
Preparation
Remove these parts:
 Jogger unit (Jogger Unit Removal)
 Main jogger cover plate (Main Jogger Cover Plate)
Front Fence Motor
1. Remove the motor bracket [A] ( x2, x1, Belt x1)
