1.Replacement and Adjustment
49

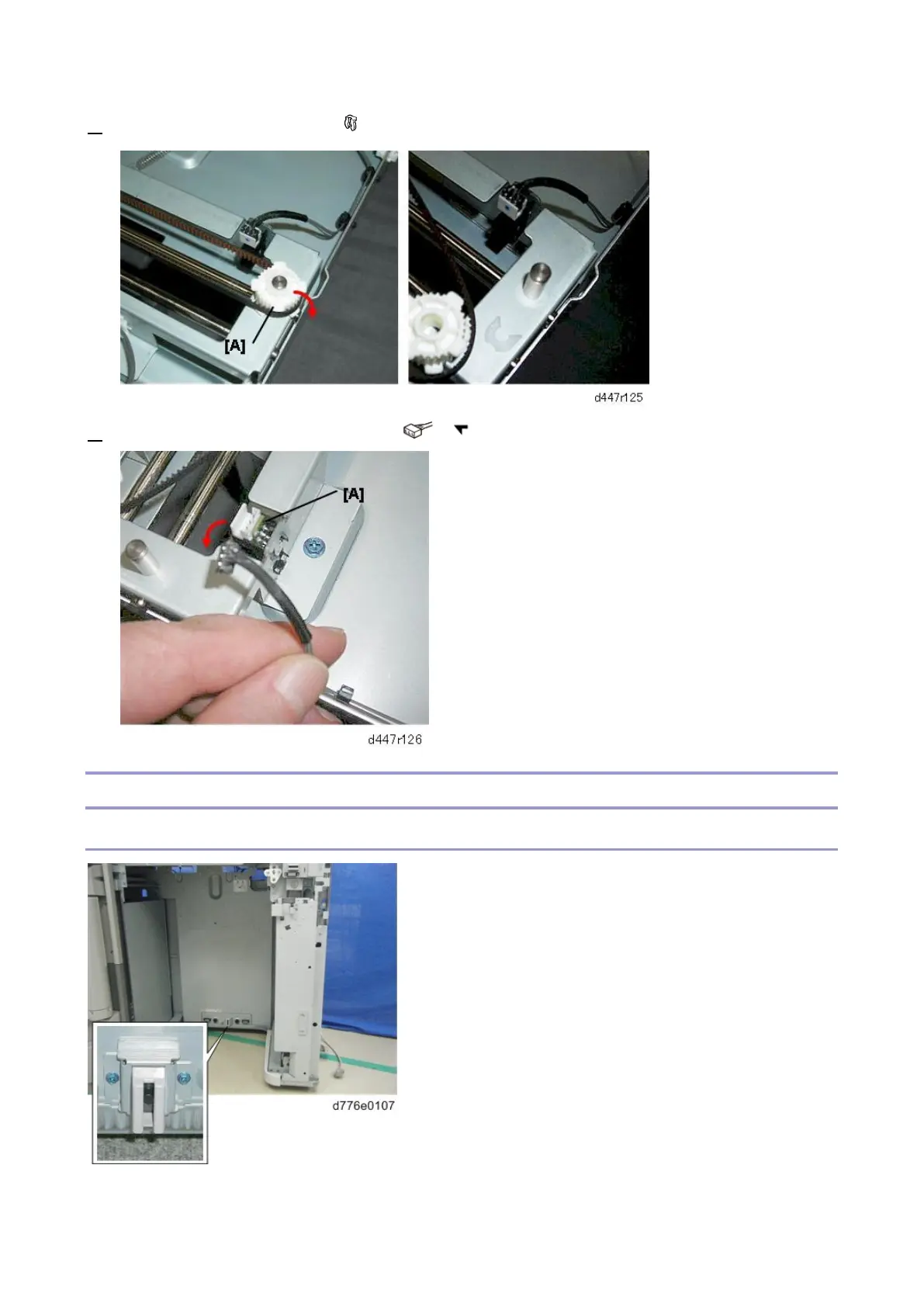

1. Disconnect pulley [A] and belt ( x1, Pulley x1, Belt x1).
2. Remove the sub jogger HP sensor [A] ( x1, x5)
Shift Tray Lift Control
Roll Away Cart Set Switch
