1.Replacement and Adjustment
11

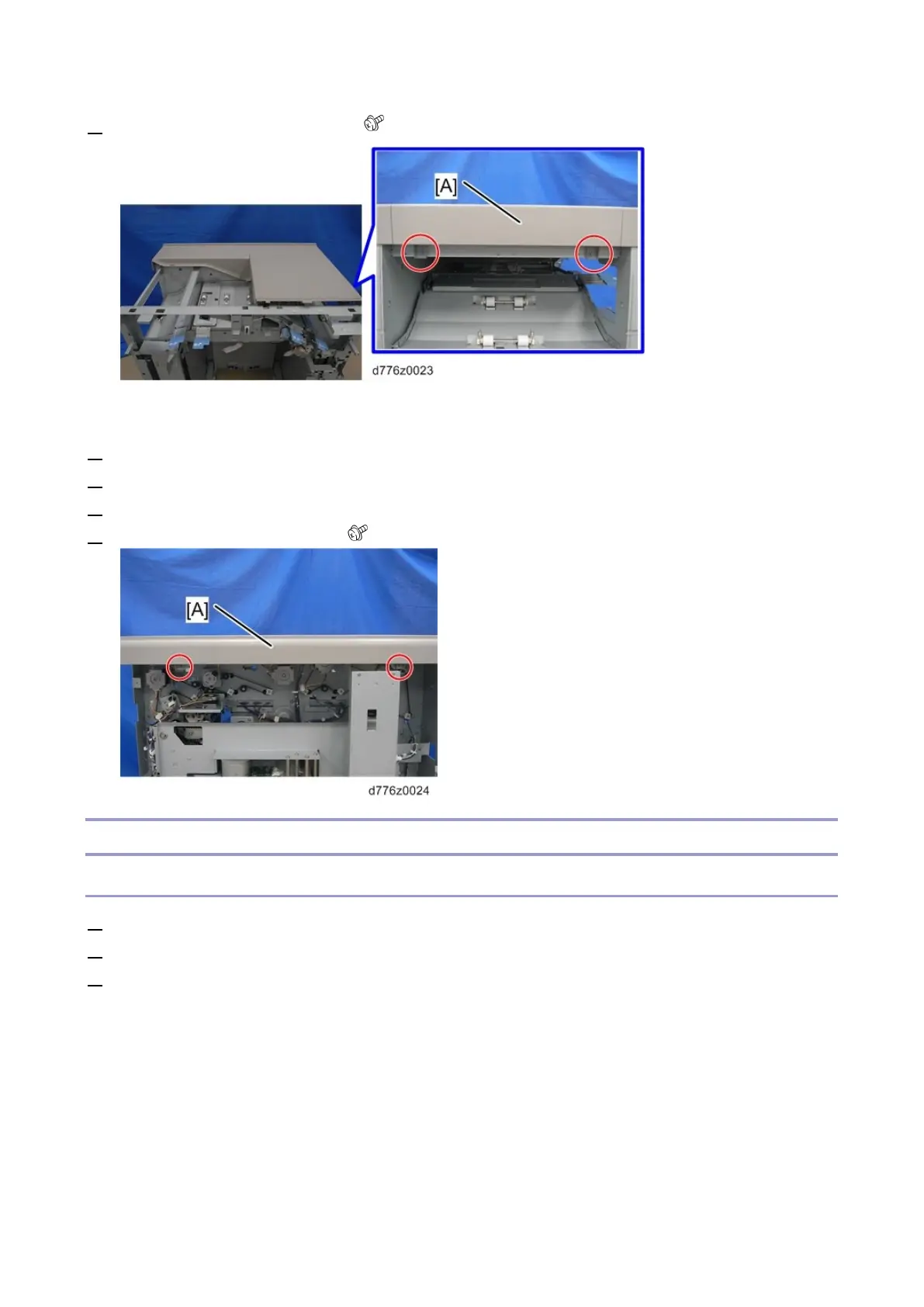

3. Remove the top center cover [A] ( x2)
Top Rear Cover
1. Remove the proof tray
2. Remove the top front cover
3. Remove the top center cover
4. Remove the top rear cover [A] ( x2)
Jogger Unit
Jogger Unit Removal
1. Remove the rear lower cover and rear upper cover (Rear Lower Cover, Rear Upper Cover)
2. Remove the right inner cover (Right Inner Cover)
3. Remove the left inner cover (Left Inner Cover)
