2.Detailed Descriptions
94

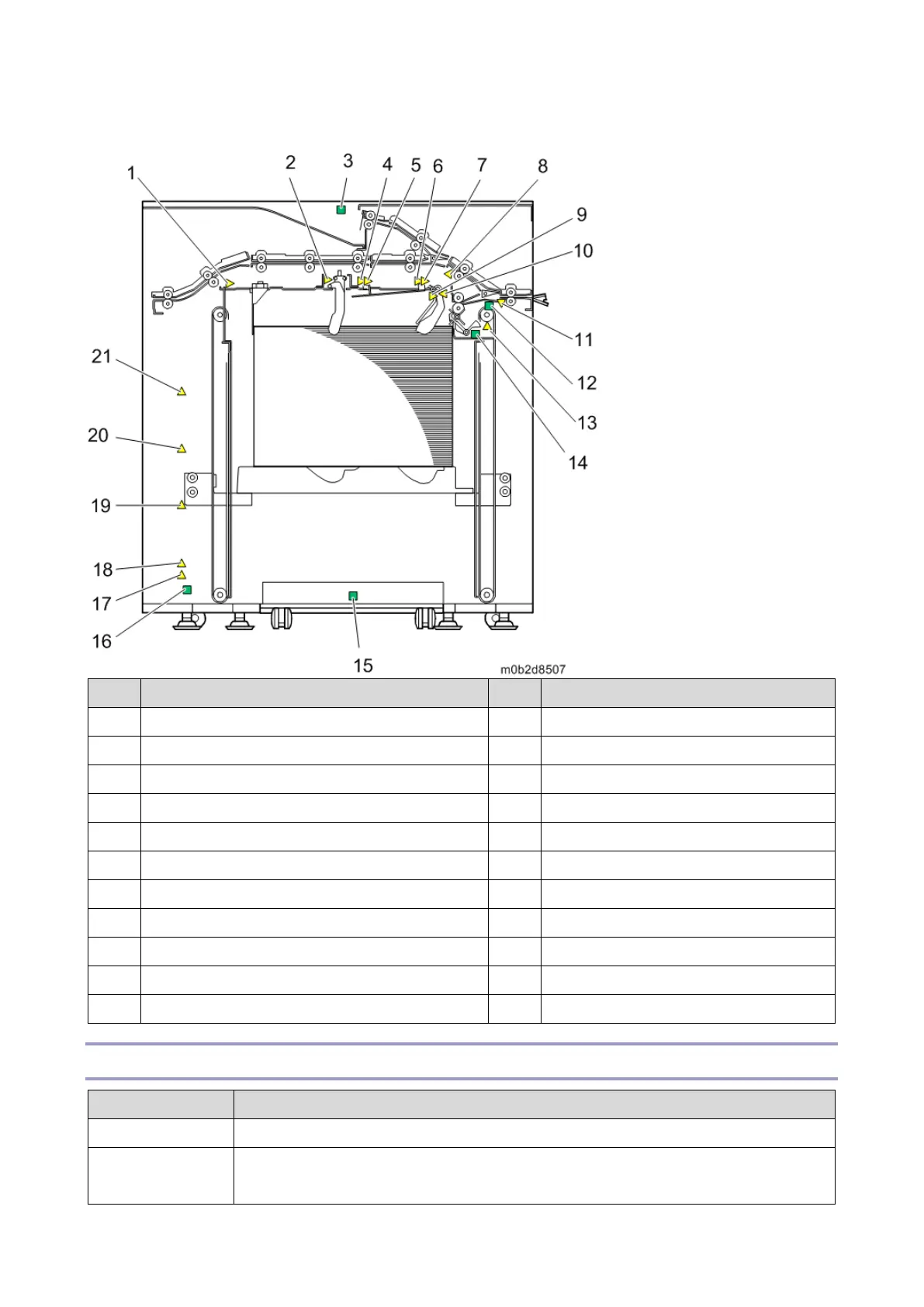

Mechanism
No.
Name
No.
Name
1
LE Stopper HP Sensor
12
Front Door SW
2
Sub Jogger HP Sensor
13
Shutter Home Position Sensor
3
Top Door SW
14
Tray High Limit SW
4
Tray Guard Sensor 2
15
Roll Away Cart Set SW
5
Tray Guard Sensor 1
16
Tray Low Limit SW
6
Rear Fence HP Sensor
17
Tray Low Limit Sensor
7
Front Fence HP Sensor
18
Tray Full Sensor 4: 100%
8
Proof Tray JG HP Sensor
19
Tray Full Sensor 3: 75%
9
Shift HP Sensor
20
Tray Full Sensor 2: 50%
10
Jogger Fence Retraction HP Sensor
21
Tray Full Sensor 1: 25%
11
Shift Tray JG HP Sensor
-
-
Electrical Components
Motors
Entrance Motor
Drives the entrance rollers that feed each sheet of paper as it enters the stacker.
Shift Tray JG
Motor
Opens the shift junction gate that directs paper to the shift tray. Paper goes past
this junction gate to the proof tray or stacker exit when it is closed.
