2.Detailed Descriptions
100
Paper Path
Paper Path Motors
These are the motors that drive the rollers of the stacker:
[1] Entrance motor. Drives the entrance rollers and other transport rollers that feed the paper
straight through the stacker to the transport motor.
[2] Shift tray exit motor. Drives the rollers that feed paper from the shift tray junction gate onto the
shift tray.
[3] Proof tray exit motor. Drives the rollers that feed paper up from the proof tray junction gate to
the proof tray on top of the stacker.
[4] Transport motor. Drives the rollers that feed paper out of the stacker from the straight-through
paper path.

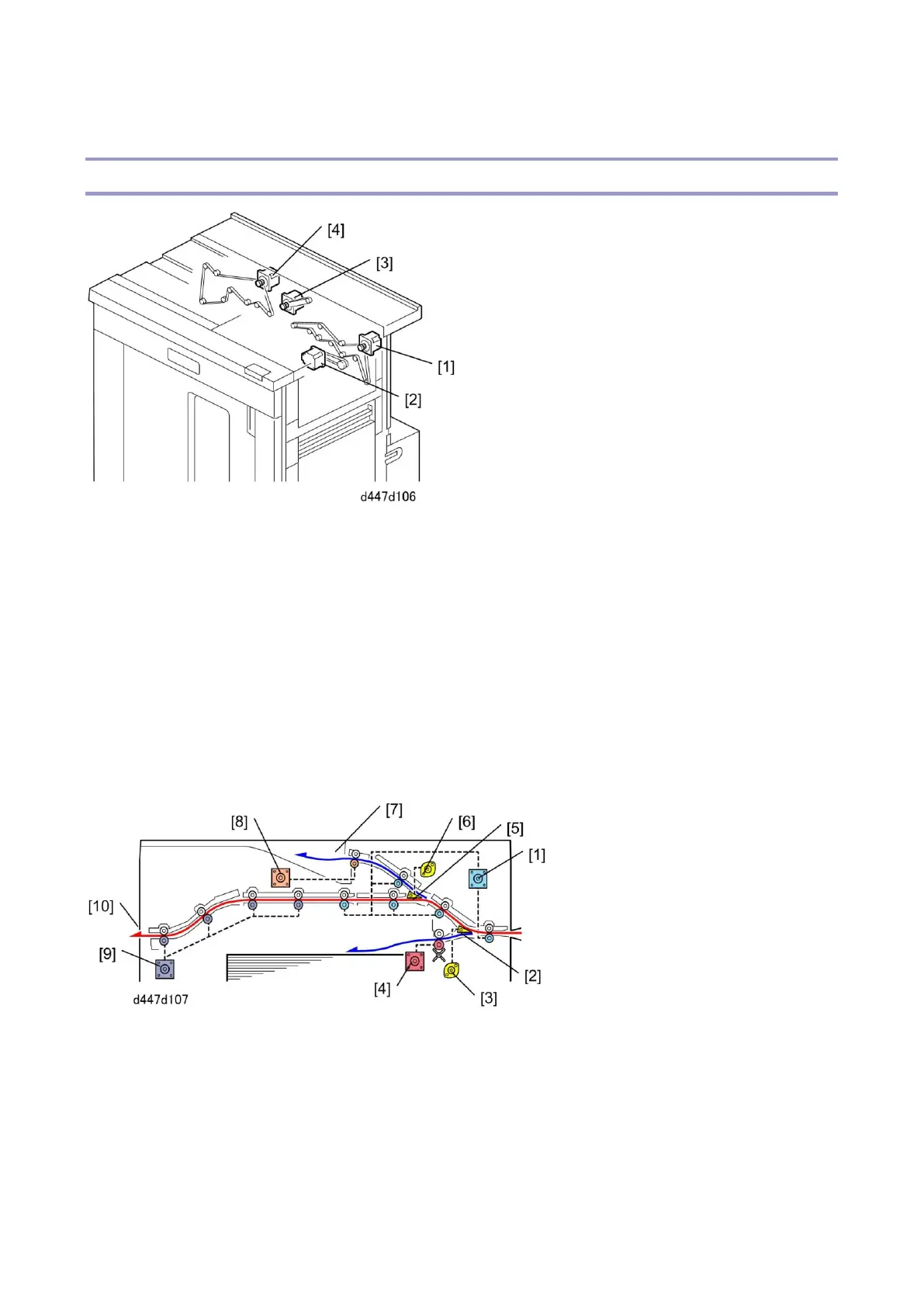

This is a cross-sectional view of the paper feed path and the motors.
The entrance motor [1] drives not only the entrance roller but several other feed rollers as well.
The shift tray junction gate [2] is opened by the shift tray junction gate motor [3]. When the junction gate
is opened, paper is guided to the shift tray. The shift tray exit motor [4] drives the shift rollers that feed
the paper onto the shift tray. When the shift tray junction gate is closed, paper passes over to the proof
tray junction gate.
The proof tray junction gate [5] is closed by the proof junction gate motor [6]. When the gate is closed,
