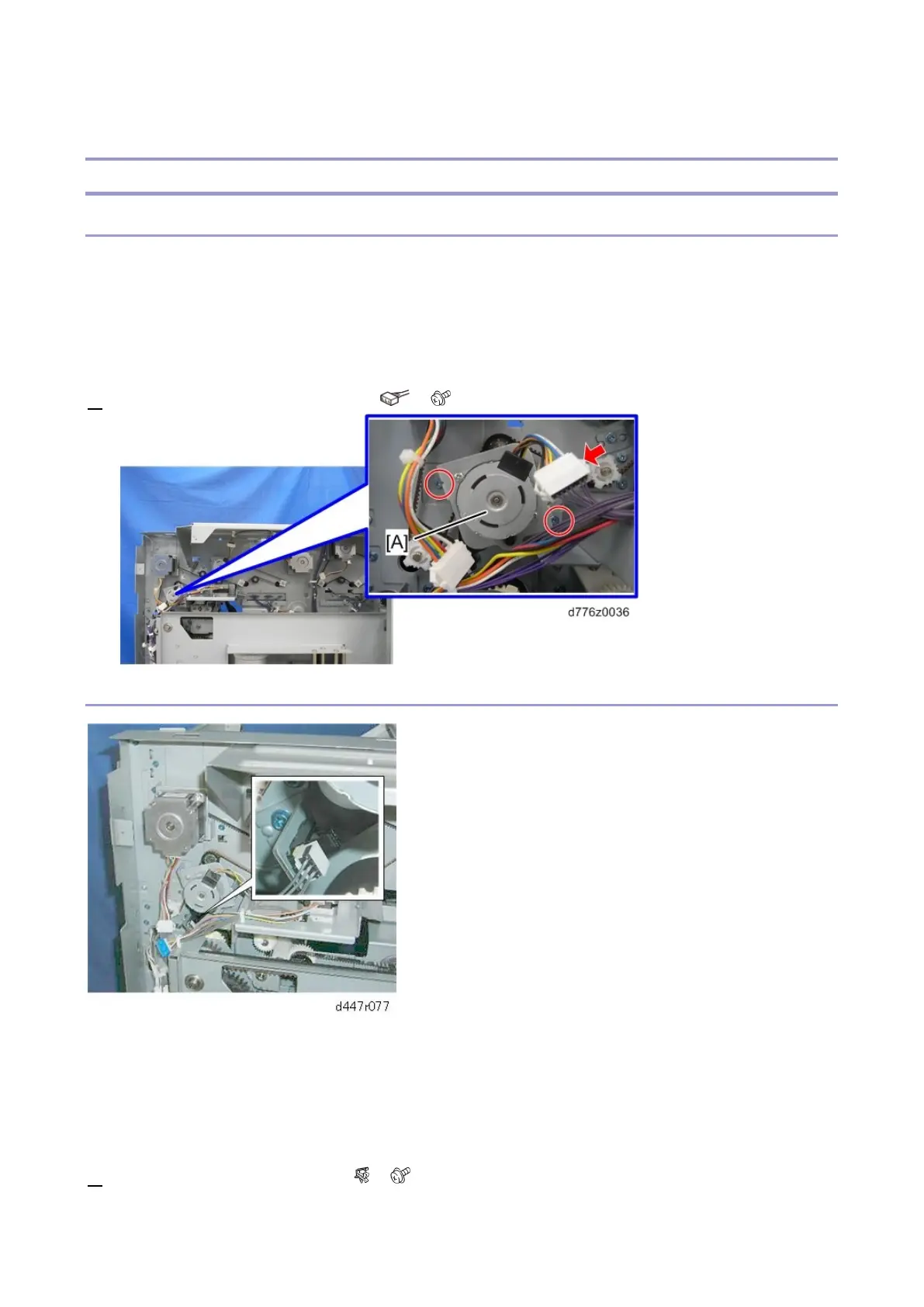

Shift Tray
Paper Shift Operation
Shift Tray JG Motor
Preparation
Remove these parts:
 Rear lower cover (Rear Lower Cover, Rear Upper Cover)
 Rear upper cover (Rear Lower Cover, Rear Upper Cover)
1. Remove the shift tray JG motor [A] ( x1, x2)
Shift Tray JG HP Sensor
Preparation
Remove these parts:
 Rear lower cover (Rear Lower Cover, Rear Upper Cover)
 Rear upper cover (Rear Lower Cover, Rear Upper Cover)
1. Remove the sensor bracket [A] ( x1, x1)
