1.Replacement and Adjustment
17
Straight Paper Path
Motors
Entrance Motor
Preparation
Remove these parts:
 Rear lower cover (Rear Lower Cover, Rear Upper Cover)
 Rear upper cover (Rear Lower Cover, Rear Upper Cover)

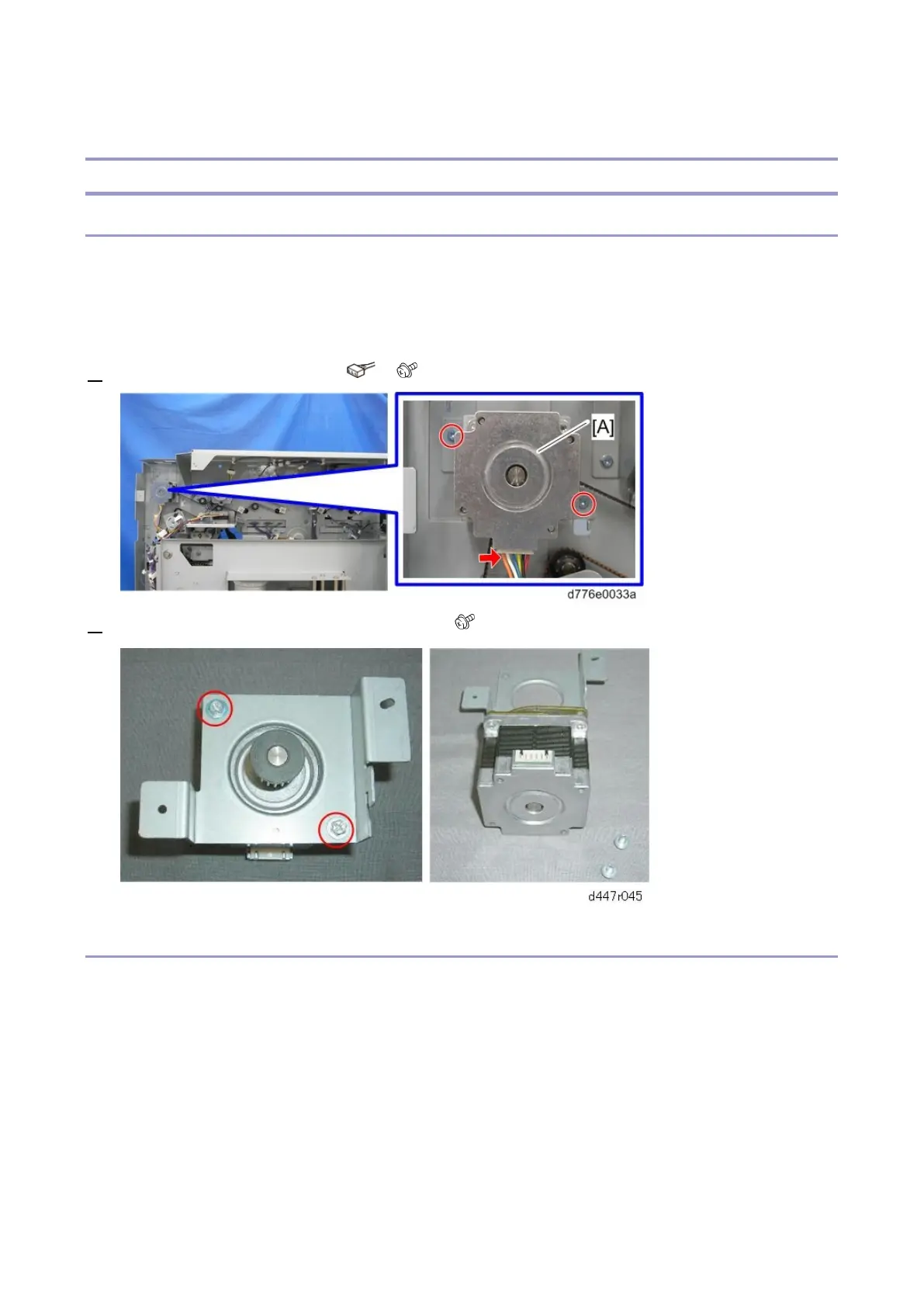

1. Remove the motor bracket [A] ( x1, x2)
2. Separate the entrance motor and the bracket ( x2).
Transport Motor
Preparation
Remove these parts:
 Rear lower cover (Rear Lower Cover, Rear Upper Cover)
 Rear upper cover (Rear Lower Cover, Rear Upper Cover)
