RIGOL Chapter 6 Operations and Measurements
6-48 MSO8000 User Guide
When "LA" is selected under Source, you need to set the LA display type. Press
More and then press La Type continuously to select "HEX" or "BIN".
7. Measurement Example
Measure the period of a sine wave by using the manual cursor measurement
and auto measurement respectively. The measurement results are both 1 ms, as
shown in Figure 6-3.

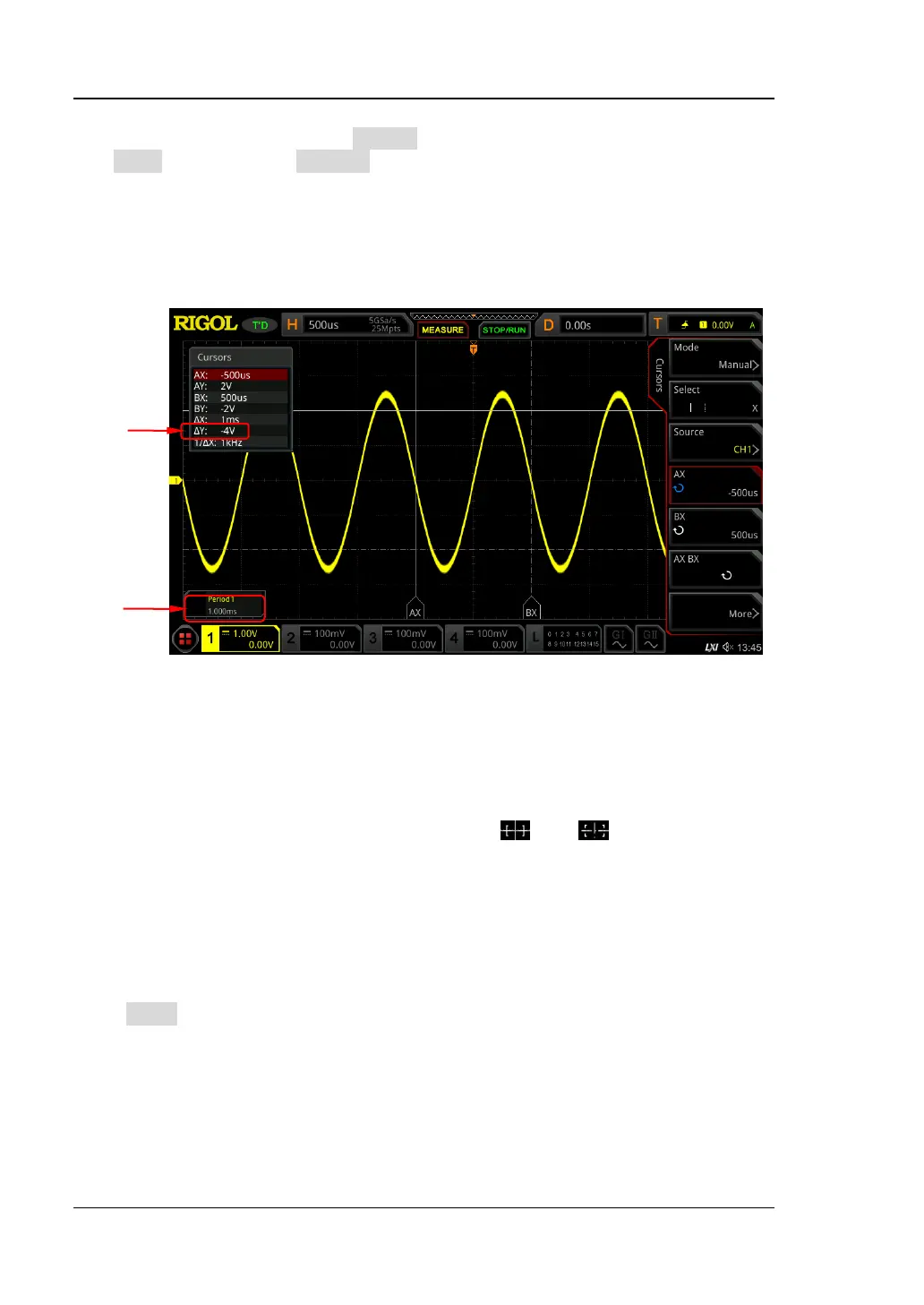

Figure 6-3 Manual Cursor Measurement Example
Track Mode
In this mode, you can adjust the two pairs of cursors (Cursor A and Cursor B) to
measure the X and Y values on two different sources respectively. The points being
measured on Cursor A and Cursor B are marked by and respectively. When
the cursors are moved horizontally/vertically, the markers will position on the
waveform automatically. When the waveform is expanded or compressed
horizontally/vertically, the markers will track the points being marked at the last
adjustment of the cursors.
Note: When the delayed sweep function is enabled, the track cursor is within the
expanded area.
Press Mode to select "Track" to enable the cursor track function, and the
measurement results will be displayed at the upper-left corner of the screen, as
shown in the following figure. When you change the measurement parameter for the
track mode, the measurement results will be changed accordingly.
