select "LXI-Web"). Various important information about the instrument
(including the model, manufacturer, serial number, description, MAC address,
and IP address) will be displayed on the webpage. You can also directly input
the IP address of the oscilloscope in the address bar of the PC browser to load
the LXI webpage.
Remote Control via GPIB
1. Connect the device
Use the USB-GPIB interface converter to extend the GPIB interface for the
oscilloscope, and then use the GPIB cable to connect the oscilloscope to the PC
to realize remote control.
2. Install the driver of GPIB card
Correctly install the driver of the GPIB card which has been connected to the PC.
3. To Set the GPIB Address
Set the GPIB address of the oscilloscope according to the description in "To Set
the GPIB Address".
4. Search for the device resource

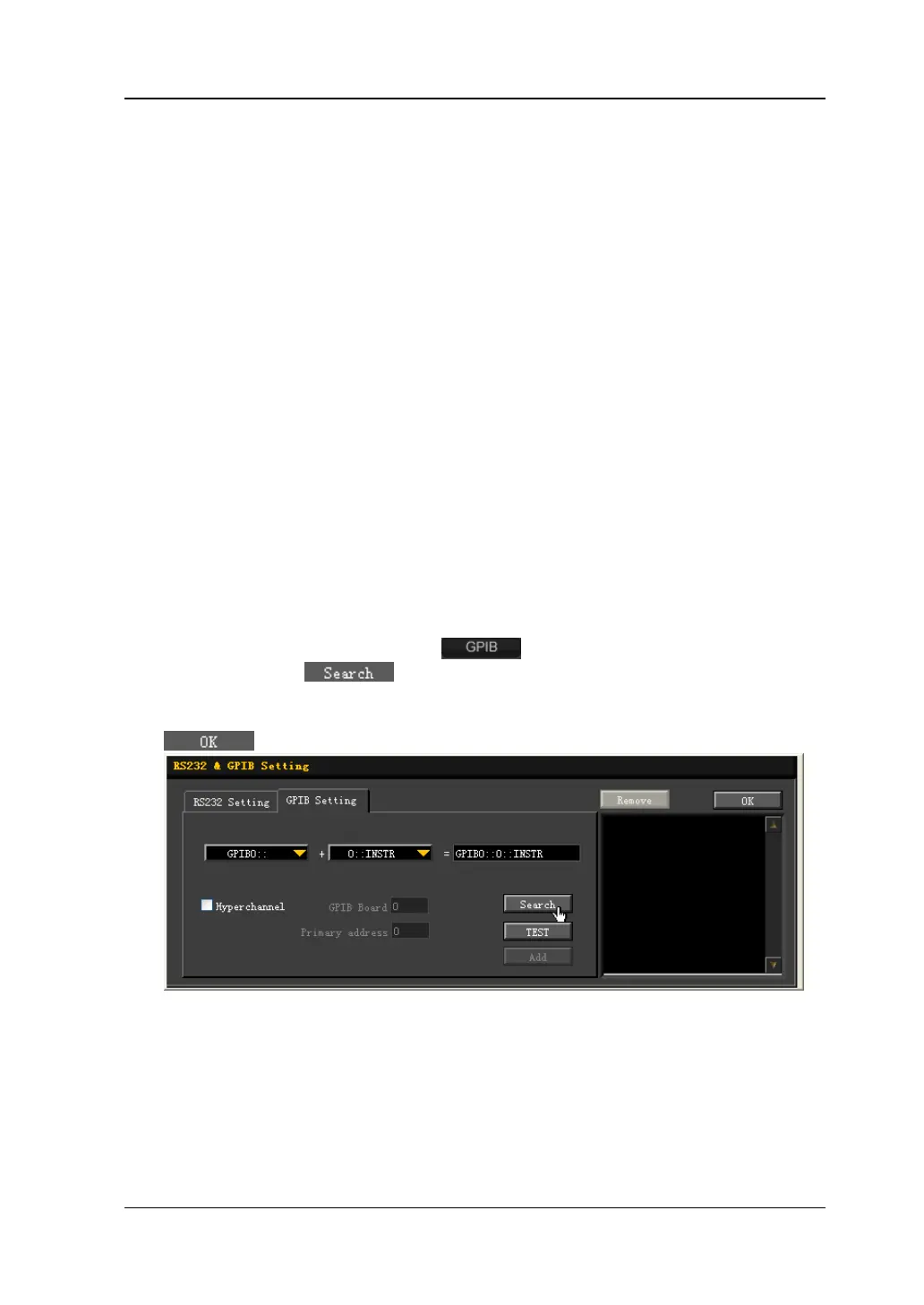

Start Ultra Sigma, and then click . A window is displayed as shown in
Figure (a). Click and the software searches for the instrument
resource currently connected to the PC via the GPIB interface. The resource
found is displayed at the right of the window as shown in Figure (b). Click
to add it.
(a)
