Note: When the delayed sweep is enabled, rotate the Horizontal POSITION
knob to adjust the horizontal position of the delayed sweep (press down the
knob to quickly reset it). The horizontal position of the delayed sweep at the
upper-right corner of the screen changes accordingly.
Delayed Sweep
Delayed sweep can be used to enlarge a length of waveform horizontally to view
waveform details.
In the horizontal control area on the front panel, press Zoom to enable or disable
the delayed sweep. By default, it is disabled. You can also press Acquire → More →
Zoom to enable or disable the delayed sweep function.
Note: To enable the delayed sweep, you must ensure that the current time base
mode is "YT".
In delayed sweep mode, the screen is divided into two display areas as shown in
Figure 3-1.

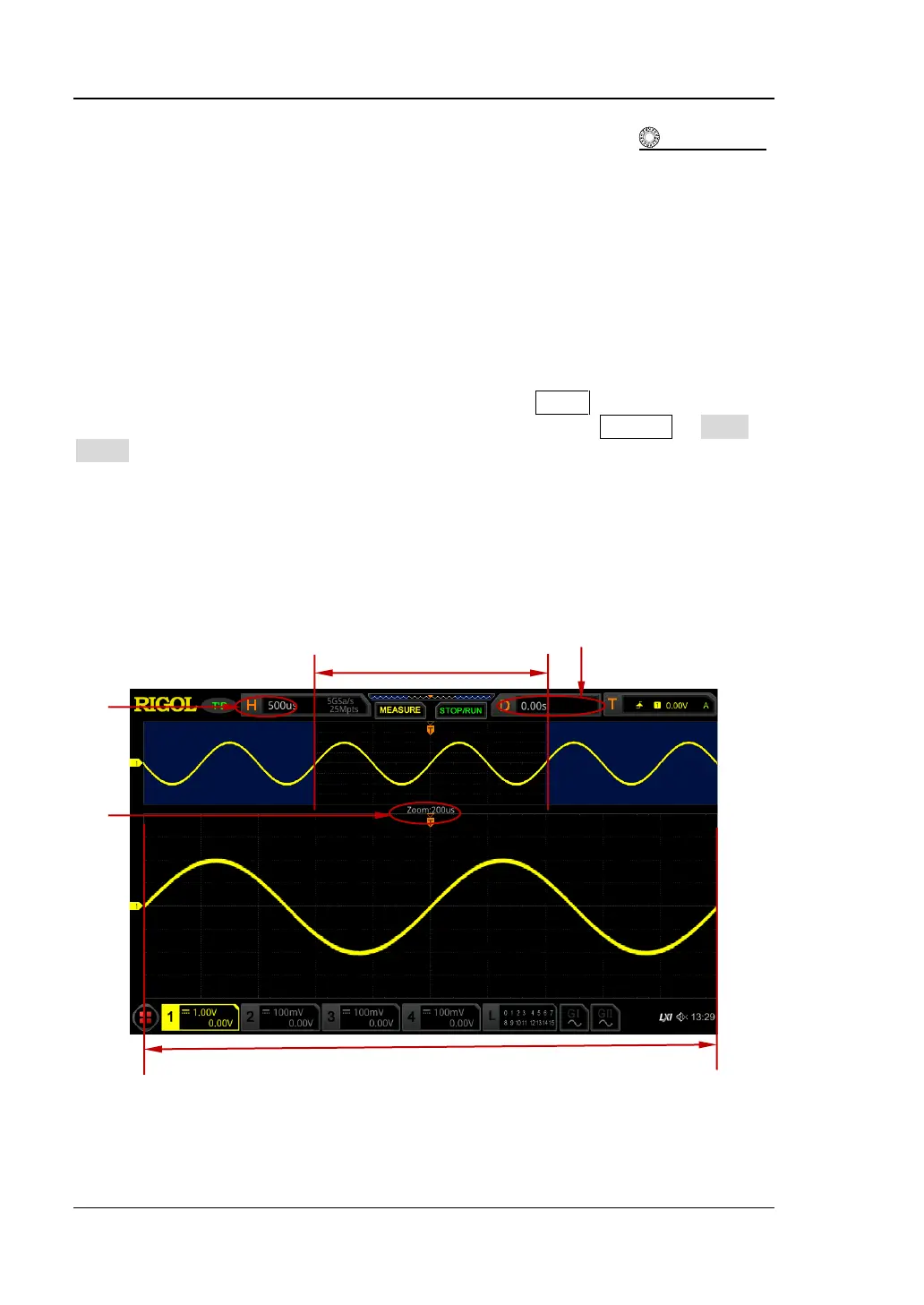

Figure 3-1 Delayed Sweep Mode
Waveform Before Enlargement
Horizontal Position of the
Delayed Sweep
Main
Time
Base
Time
Base of
the
Delayed
Sweep
Waveform After Enlargement
