RIGOL Chapter 1 Quick Start
1-6 MSO8000 User Guide

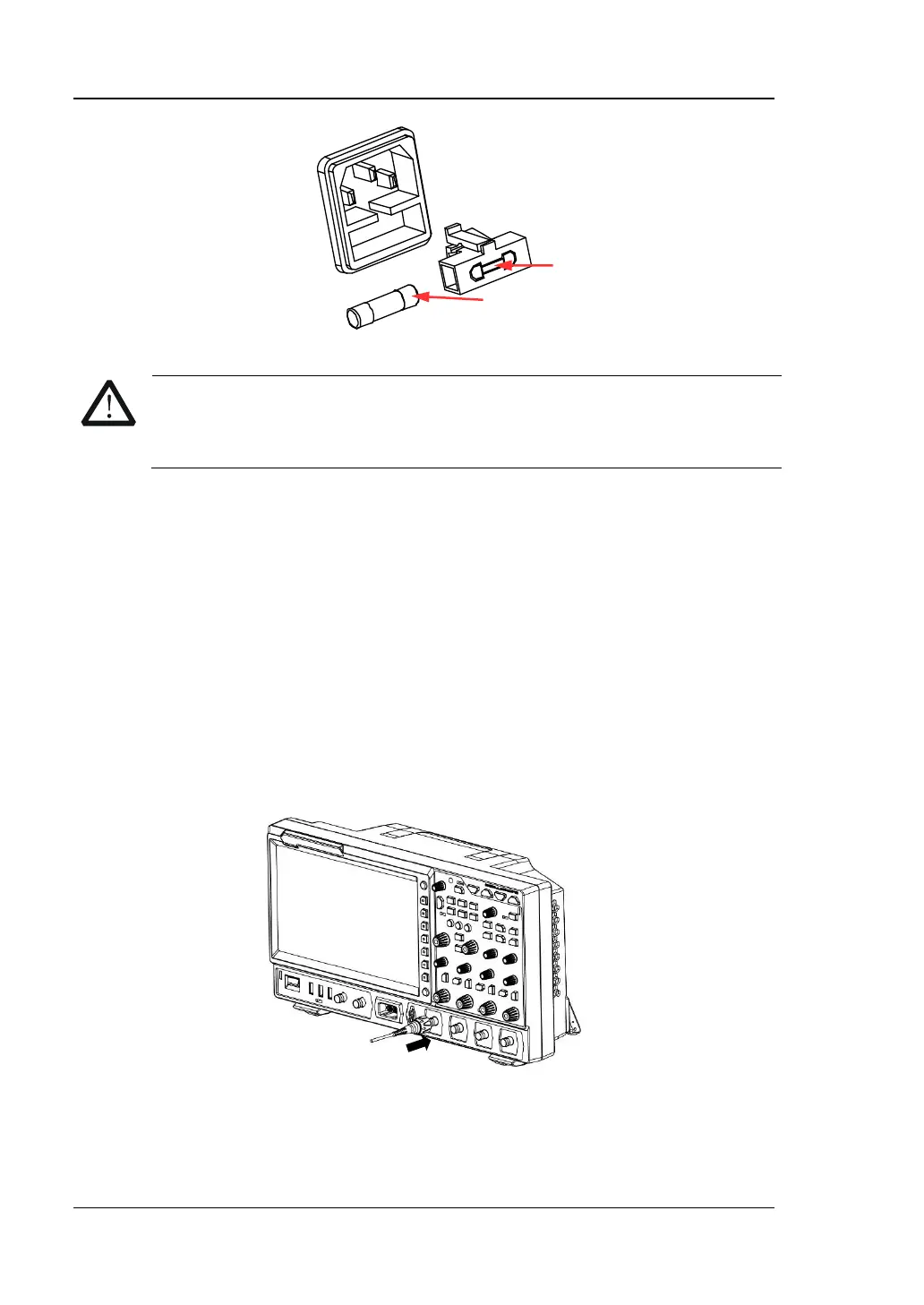

Figure 1-5 To Replace the Fuse
WARNING
To avoid electric shock, please ensure that the instrument has been turned
off, the power source has been cut off, and the fuse to be used conforms
to the fuse rating.
To Connect the Probe
RIGOL provides the passive probe, the active probe, and the logic probe for
MSO8000 series. For specific probe models, please refer to MSO8000 Series
Datasheet . For detailed technical information of the probes, please refer to the
specified Probe User Guide.
Connect the passive probe:
1. Connect the BNC terminal of the probe to an analog channel input terminal of
the oscilloscope on the front panel, as shown in Figure 1-6.
2. Connect the ground alligator clip or spring of the probe to the circuit ground
terminal, and then connect the probe tip to the circuit point to be tested.
Figure 1-6 To Connect the Passive Probe
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For detailed procedures,
Fuse Holder
Fuse
