Chapter 1 Quick Start RIGOL
MSO8000 User Guide 1-29
Parameter Setting Method
You can use the knob or enable the touch screen to set the parameters of MSO8000
series. The common parameter setting methods are as follows:
Method 1:
For the parameters with the sign , rotate the multifunction knob on the front
panel directly to select the parameter item or modify the parameter value.
Method 2:
For the parameters with the sign , rotate the multifunction knob on the front
panel and press it down to select the parameter item or modify the parameter value.
Method 3:
For the parameters with displayed on the menu, rotate the multifunction knob
on the front panel directly to set the parameter, or press down the multifunction
knob or the specified menu softkey, and then the numeric keypad is shown in
Figure 1-20 below.

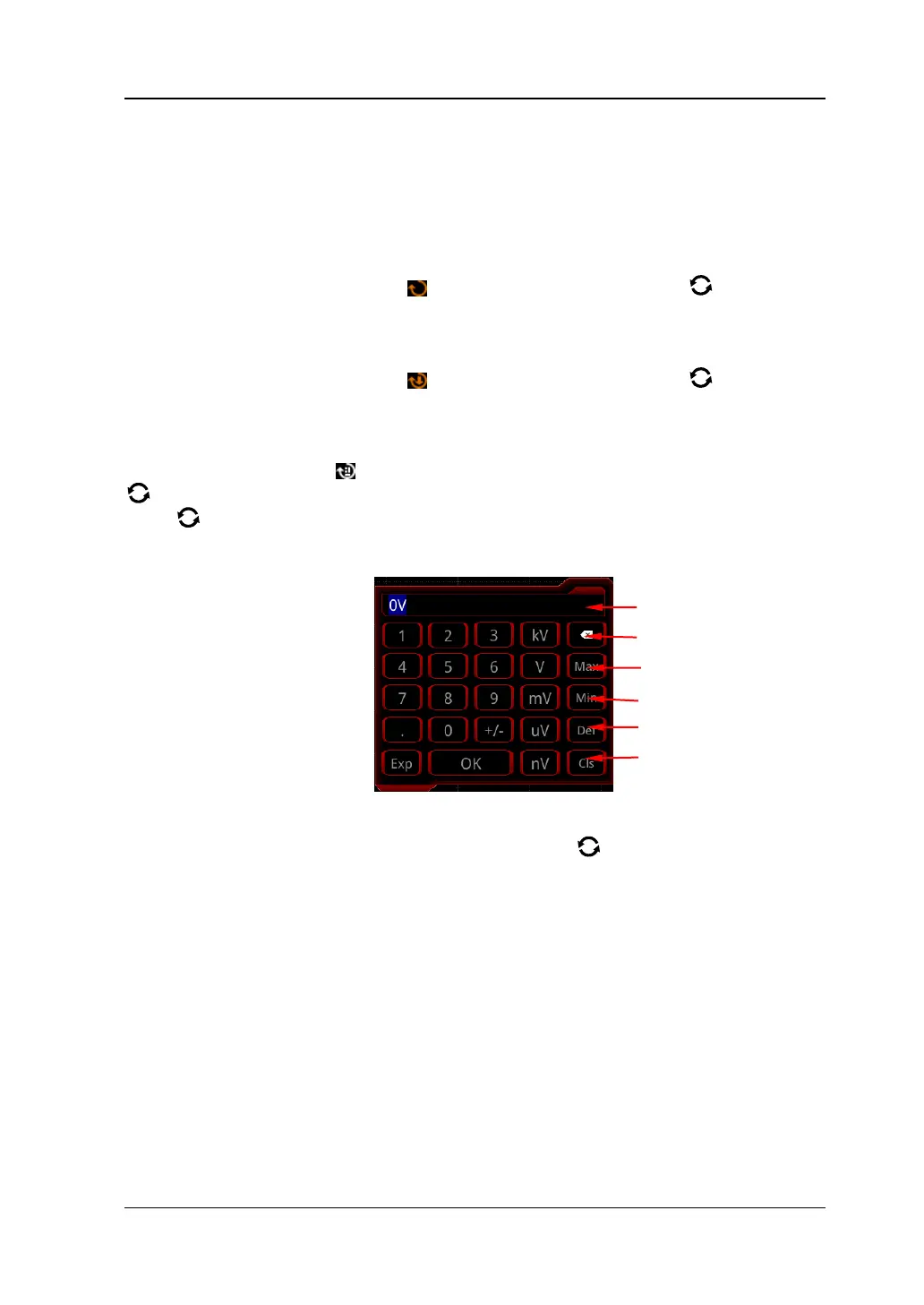

Figure 1-20 Numeric Keypad
In the numeric keypad, rotate the multifunction knob to select the parameter,
then press down the knob to select it. Then input the value or the unit. You can also
enable the touch screen and tap the value or unit in the numeric keypad to input
them. After you input all the values and select the desired units, the numeric keypad
is turned off automatically. This indicates that you have completed parameter setting.
Besides, after you have input the values, you can also press OK directly to close the
numeric keypad. At this time, the unit of the parameter is the default unit. In the
numeric keypad, you can also perform the following operations:
âš« Delete the parameter value that has been input.
âš« Set the parameter to a maximum or minimum value (sometimes, the maximum
or minimum value are the specified one for the current state).
âš« Set the parameter to a default value.
âš« Clear the parameter input field.
