digital channel is consistent with that of the channel label, being displayed in red.
The grouping setting function under the logic analyzer function menu can divide
the digital channels into 4 channel groups. The channel label of the same
channel group is displayed in the same color; different channel groups are
marked with different colors.
24. Function Navigation
Enable the touch screen and then tap this icon to enable the function navigation.
Touch Screen Controls
MSO8000 series provides a 10.1-inch super large capacitive touch screen, which
supports multi-touch and gesture operation. It has strong waveform display
capability and excellent user experience. It features great convenience, high
flexibility, and great sensitivity. The actions supported by the touch screen controls
include tapping, pinching & stretching, dragging, and rectangle drawing.
Tap
Use one finger to touch the symbol or characters on the screen slightly, as shown in
Figure 1-16. The functions of the tap action include:
⚫ Tap the menu displayed on the screen to operate on the menu.
⚫ Tap the function navigation icon at the lower-left corner of the touch screen
to enable the function navigation.
⚫ Tap the displayed numeric keypad to set the parameters.
⚫ Tap the virtual keypad to set the label name and the filename.
⚫ Tap the close button at the upper-right corner of the message box to close the
prompt window.
⚫ Tap other windows on the touch screen and operate on the windows.

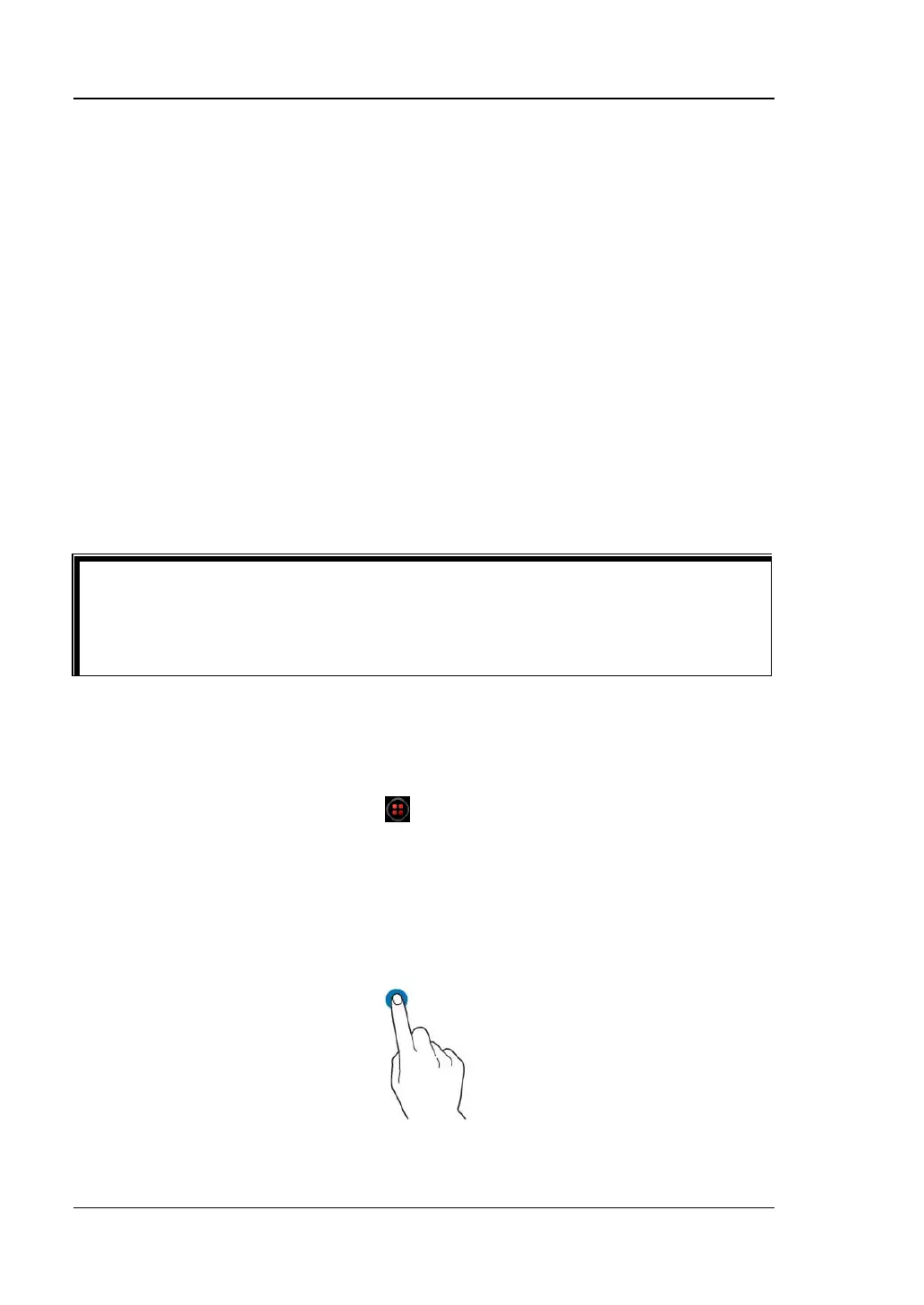

Figure 1-16 Tap Gesture
Tip
The touch screen function is available for all the menus displayed on the screen
and the buttons enabled. In this manual, key operation descriptions are illustrated
in details, and as for the touch screen function about some operations, refer to
descriptions in relevant chapters.
