Chapter 6 Operations and Measurements RIGOL
MSO8000 User Guide 6-51
XY Mode
XY mode is only available when the horizontal time base mode is "XY" (refer to
"Timebase Mode"). In this mode, two pairs of cursors will appear. You can adjust
the cursor positions to measure the X and Y values at the crossing points of the two
pairs of cursors.

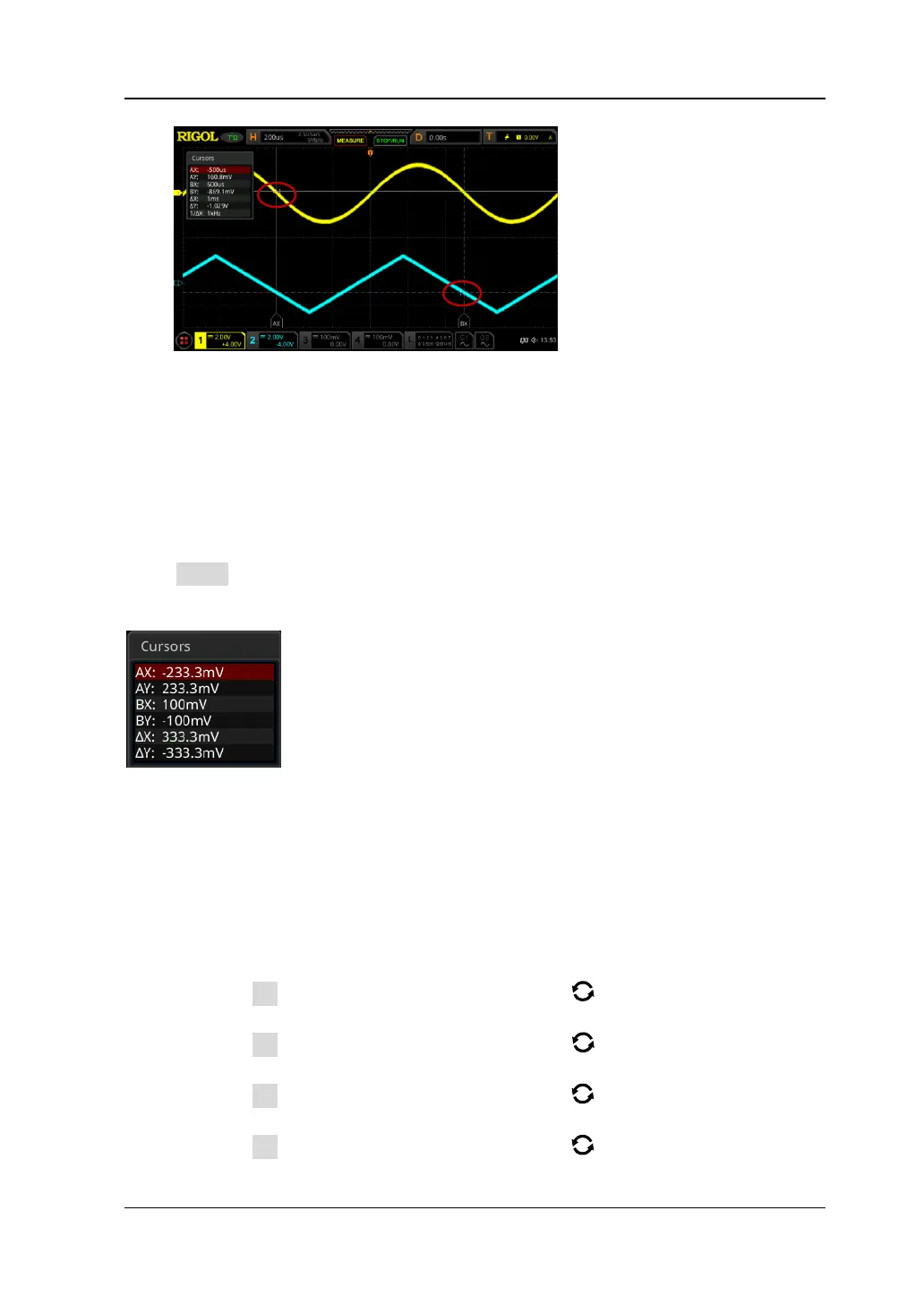

Press Mode to select "XY" to enable the XY cursor measurement function. The
measurement results are displayed at the upper-left corner of the screen, as shown
in the following figure.
âš« AX: indicates the X value at Cursor A.
âš« AY: indicates the Y value at Cursor A.
âš« BX: indicates the X value at Cursor B.
âš« BY: indicates the Y value at Cursor B.
âš« â–³X: indicates the horizontal spacing between Cursor A and Cursor B.
âš« â–³Y: indicates the vertical spacing between Cursor A and Cursor B.
1. Adjust Cursor Position
âš« Press AX and rotate the multifunction knob to adjust the X value at
Cursor A.
âš« Press BX and rotate the multifunction knob to adjust the X value at
Cursor B.
âš« Press AY and rotate the multifunction knob to adjust the Y value at
Cursor A.
âš« Press BY and rotate the multifunction knob to adjust the Y value at
