RIGOL Chapter 18 Function/Arbitrary Waveform Generator (Option)
18-8 MSO8000 User Guide
knob to select it. You can also press Wave continuously or enable the touch screen
to select it. At this time, you can set the parameters for the Gauss waveform (as
shown in the figure below). For setting methods, refer to descriptions in "To Output
Sine".

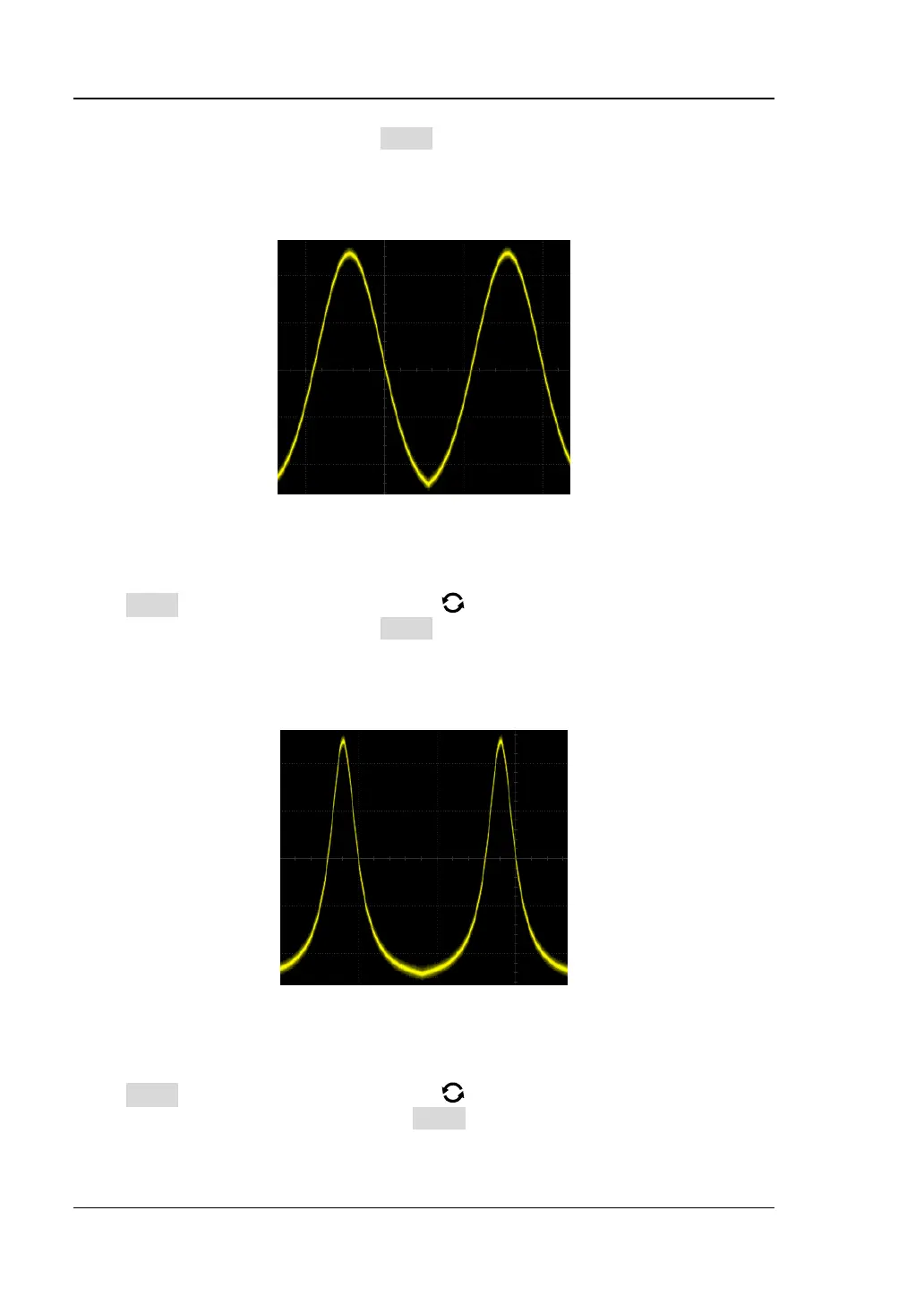

Figure 18-7 Gauss
Lorentz
Press Wave, rotate the multifunction knob to select "Lorentz". Press down the
knob to select it. You can also press Wave continuously or enable the touch screen
to select it. At this time, you can set the parameters for the Lorentz waveform (as
shown in the figure below). For setting methods, refer to descriptions in "To Output
Sine".
Figure 18-8 Lorentz
Haversine
Press Wave, rotate the multifunction knob to select "Haversine". Press down
the knob to select it. You can also press Wave continuously or enable the touch
screen to select it. At this time, you can set the parameters for the Haversine
waveform (as shown in the figure below). For setting methods, refer to descriptions
