Publication 2711P-UM001D-EN-P - September 2005
5-16 Install and Replace Components

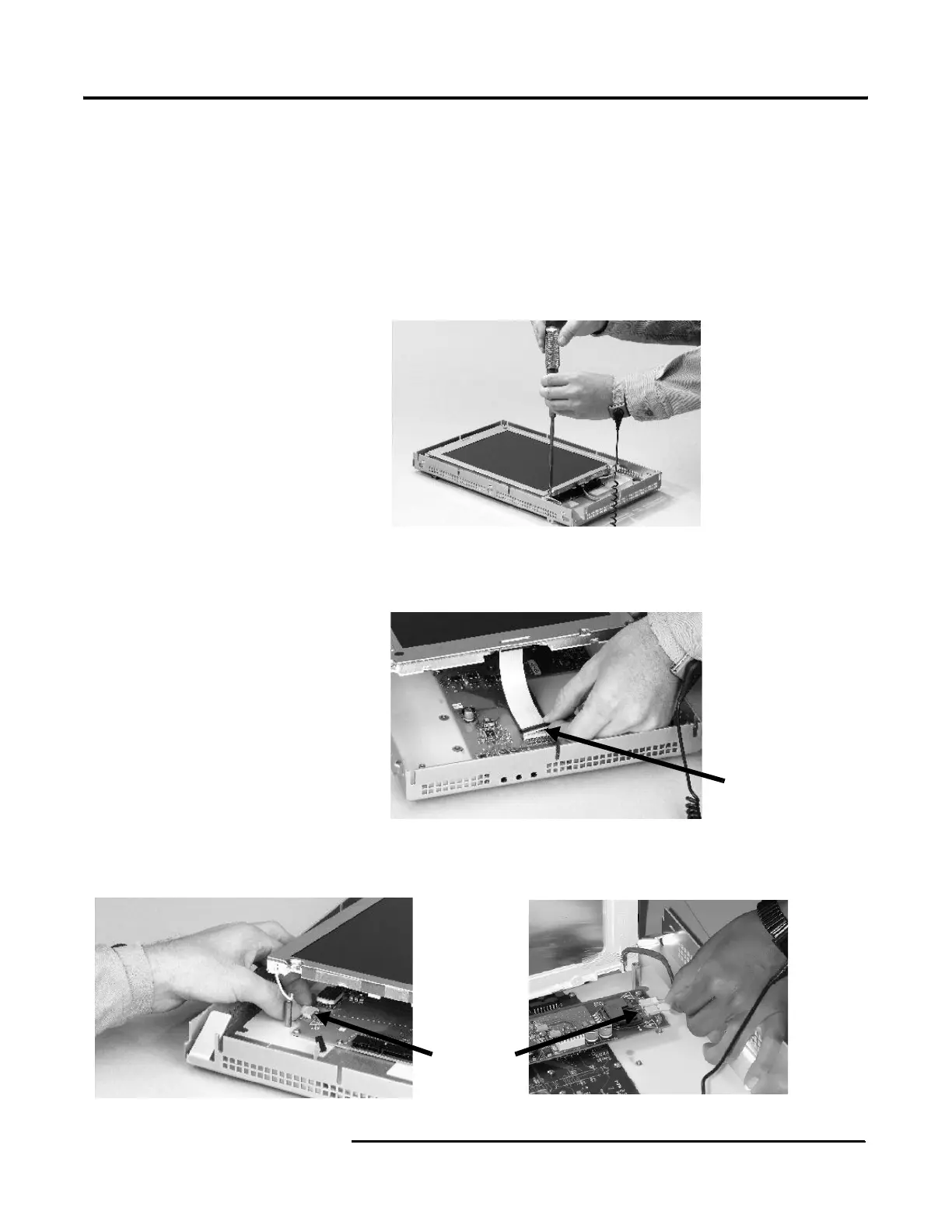

Replace the Backlight
This section shows how to replace the backlight for the 700, 1000,
1250, and 1500 terminals. The 1250 High-Bright terminals do not have
a replaceable backlight.
1. Disconnect power from the terminal.
2. Remove the display module bezel.
3. Remove the four screws that secure the LCD Display.
4. Lift the LCD display and detach the display connector from the
circuit board. The location of the connector varies by model.
5. Detach the backlight connectors from the circuit board.
The 1250 has one or two backlight connectors depending on the
series of the display. The 1500 has four backlight connectors.
00 - 1500 Terminals Only
Display
Connector
Backlight
Connector
1250
1500
To Next Page
