2-8 Installation
Mount the 700-1500
Terminal in a Panel
Mounting clips secure the terminal to the panel. The number of clips
you use (4, 6 or 8) varies by terminal type.
1. Cut an opening in the panel using the panel cutout shipped with
the terminal.
2. Make sure the terminal sealing gasket is properly positioned on
the terminal.
This gasket forms a compression type seal. Do not use sealing
compounds.
3. If using keypad legend strips on keypad terminals, we
recommend that you install the strips before installing the
terminal.
Be careful not to pinch the legend strip during installation.
4. Place the terminal in the panel cutout.
ATTENTION
• Disconnect all electrical power from the panel
before making the panel cutout.
• Make sure the area around the panel cutout is
clear.
• Take precautions so metal cuttings do not enter
any components already installed in the panel.
• Failure to follow these warnings may result in
personal injury or damage to panel components.

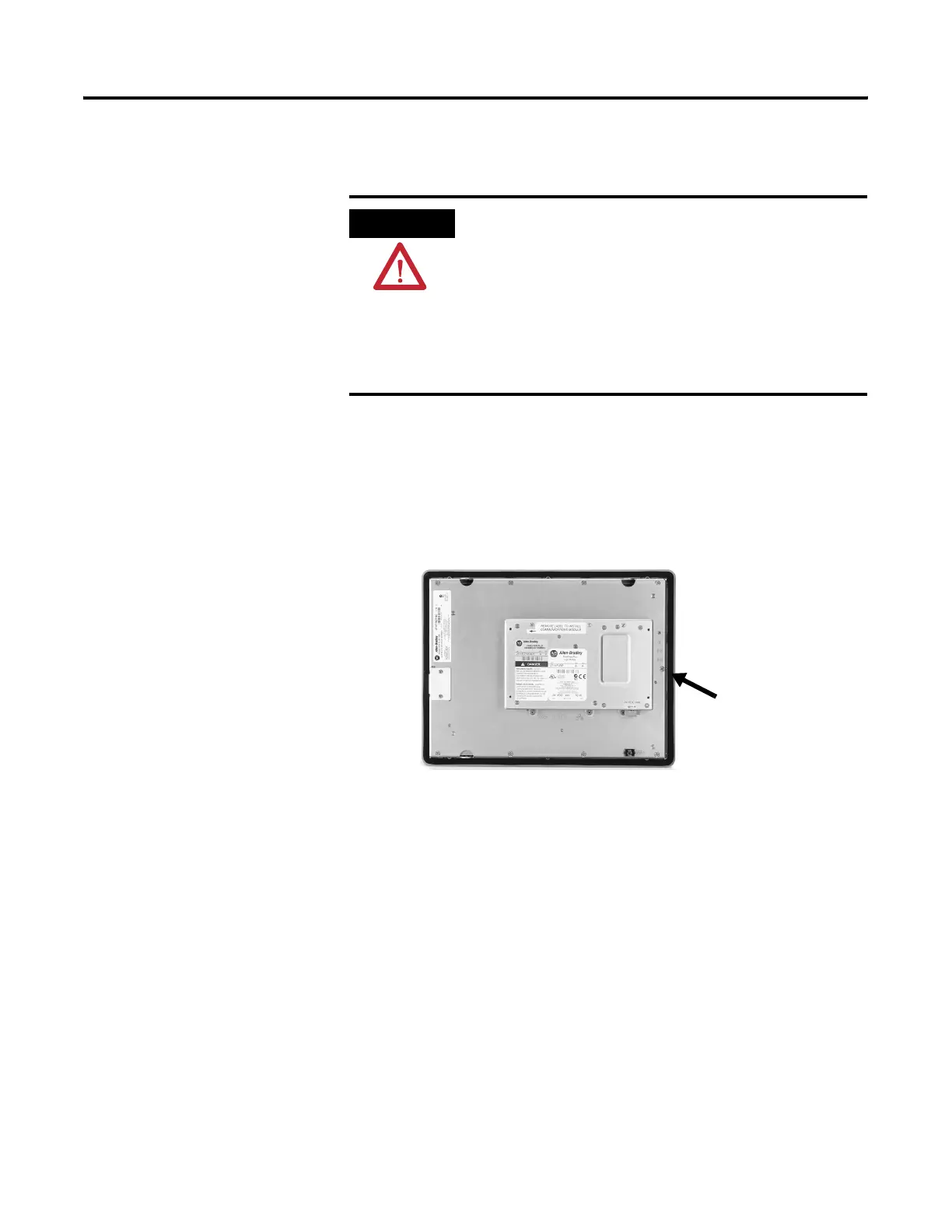

Sealing Gasket
To Next Page
