Using the MV8-OP1 (Audio I/O Expansion) to connect external devices
Using the MV8-OP1 (Audio I/O
Expansion) to connect external devices
Creating an audio CD Using the MV-8000 with MIDI or V-LINK
devices
Project and disk management Using data of other formats

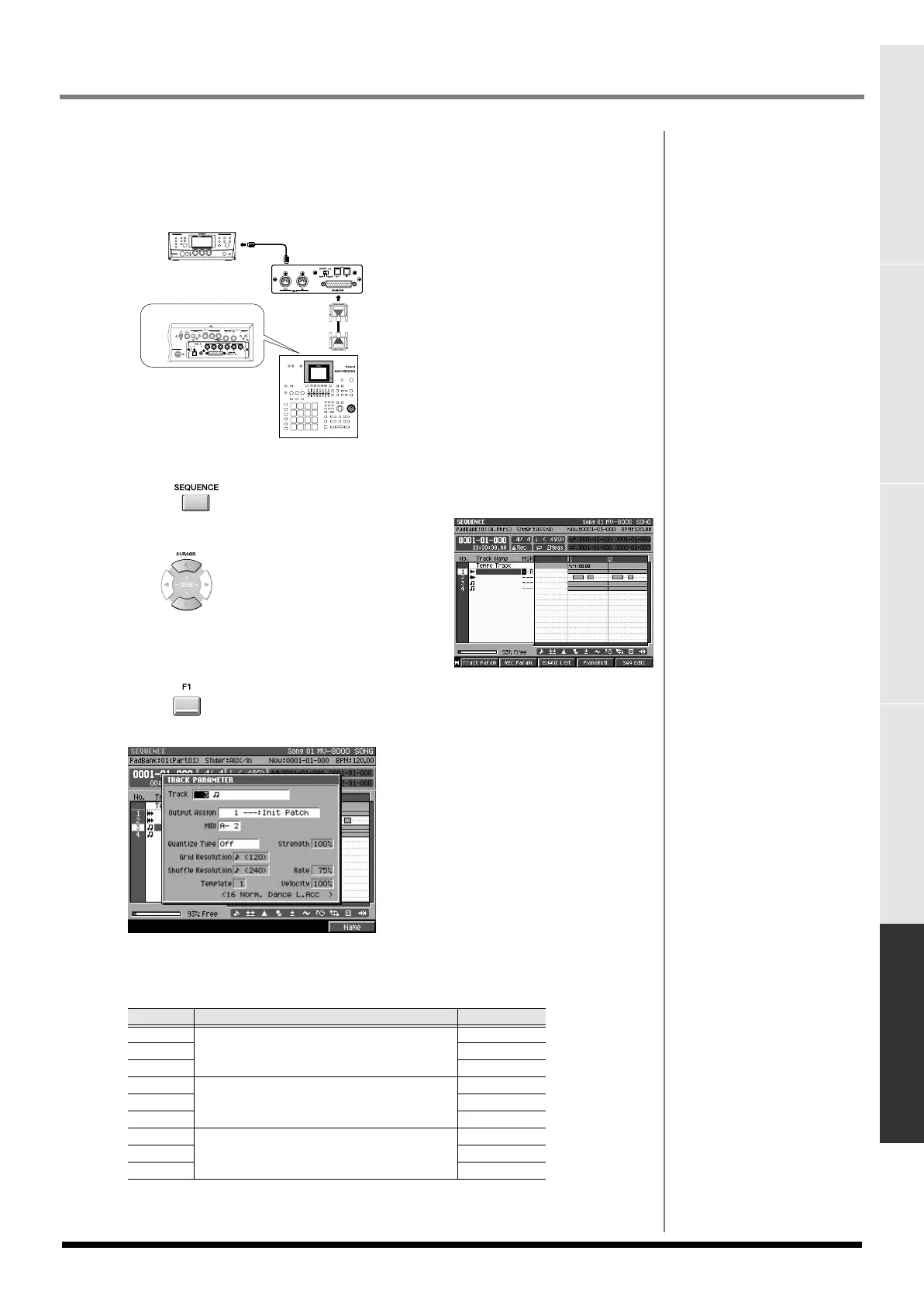

Using R-BUS and DIF-AT24 to add a MIDI output
You can add an additional 16-channel MIDI output by connecting the DIF-AT24 (sold
separately) to the R-BUS connector.
1.
Connect the DIF-AT24 (sold separately) to the R-BUS connector.
2.
Power-on the MV-8000.
3.
Press .
The SEQUENCE screen (p. 205) will appear.
4.
Use (up/down) to select the MIDI
track that contains the performance data you
want to output.
The track you select will be the current track.
5.
Press (Track Param).
The TRACK PARAMETER (MIDI) popup (p. 208) will appear.
6.
Set the Output MIDI parameter.
Select the MIDI connector and channel on which you want to transmit the performance
data. If you want to transmit MIDI data via the DIF-AT24, select R1~R16.
Value
Output destination Channel
A-1
MIDI OUT A
1
: :
A-16 16
B-1
MIDI OUT B
1
: :
B-16 16
R-1
R-BUS (use MV8-OP1 and DIF-AT24)
1
: :
R-16 16
MV-8000
DIF-AT24
R-BUS
MIDI OUT
MIDI IN
Sound
Generator
R-BUS
MV8-OP1
(Audio I/O Expansion)
