RuggedCom RuggedRouter RX1000 User Manual

Chapter 16 - Configuring Dynamic Routing
OSPF Network Areas

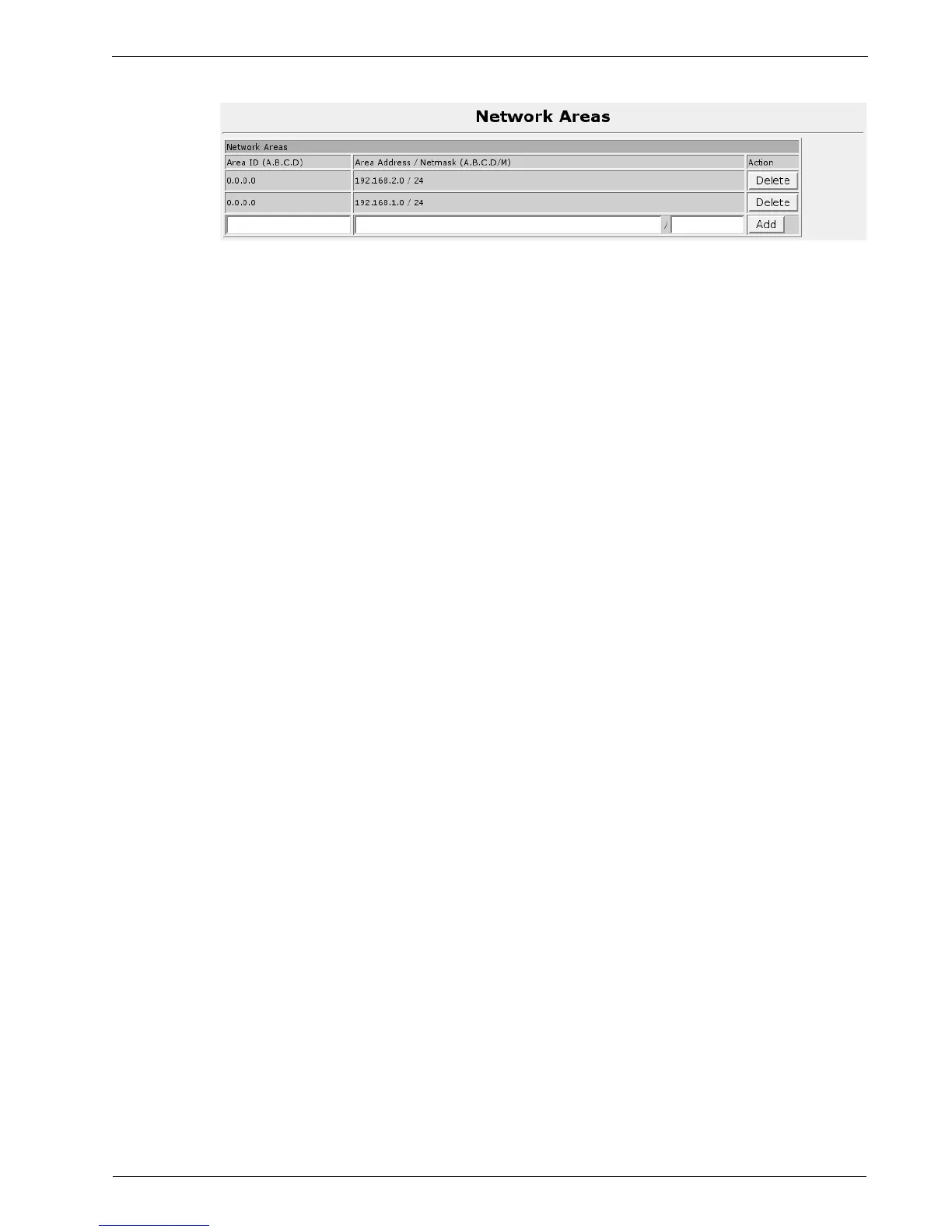

Figure 139: Network Areas
OSPF uses areas to control which routes are distributed between routers. To add a
network to an area, enter the area id and the network address and netmask and click
Add. To delete an entry click the Delete button beside the entry. All networks routes
that are part of the same area will be distributed to other routers in the same area.
OSPF Status
This status menu shows various pieces of information about the current OSPF status.
The status of each interface is shown, the current database, the current OSPF
neighbors and the current OSPF routing table.
View OSPF Configuration
This menu shows the current configuration file of OSPF.
RuggedCom 165
