Chapter 8 - Configuring Frame Relay/PPP And T3
Editing A T3 Interface

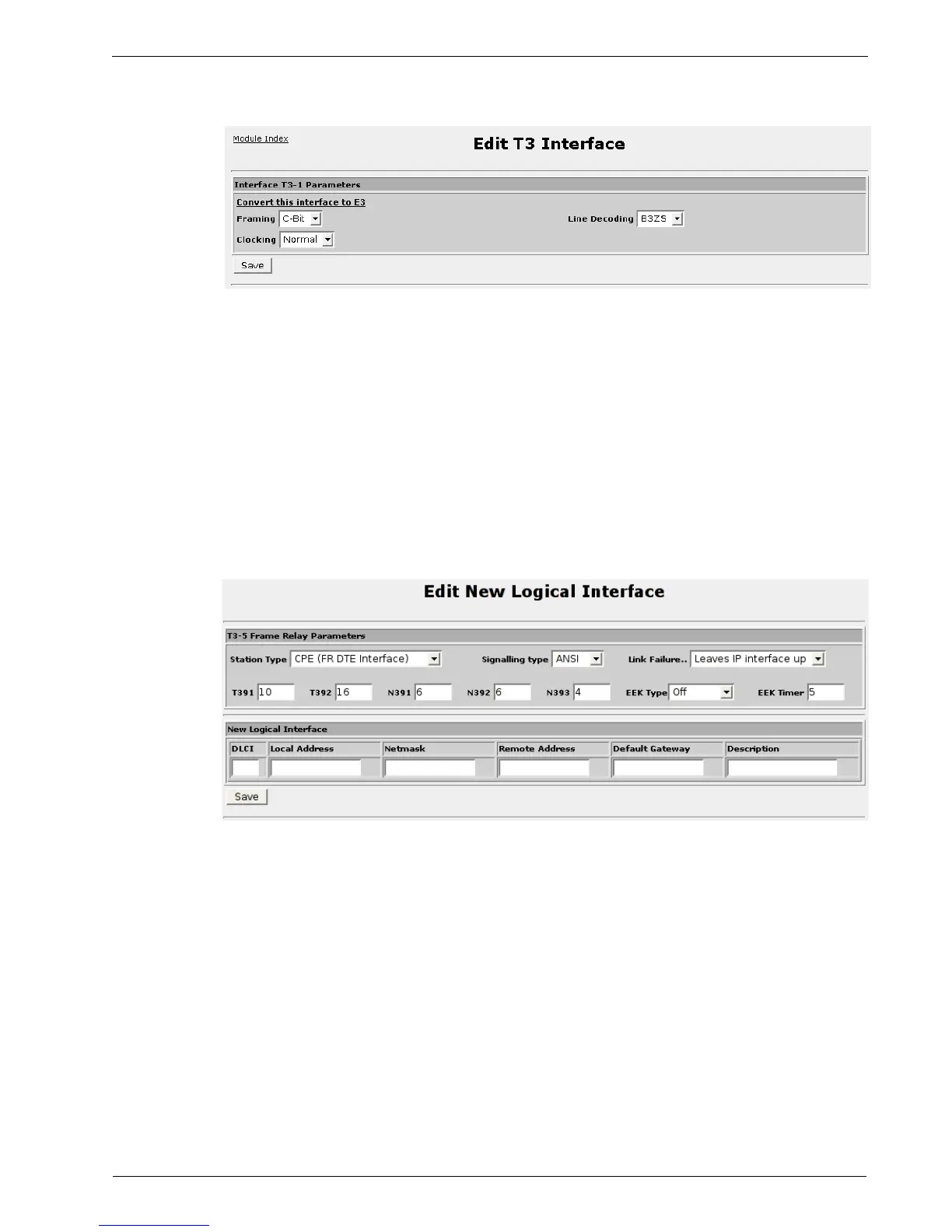

Figure 69: Edit T3 Interface
This menu allows you to display and configure T3 Trunk parameters.
The Framing field determines the framing format used. Your line provider will
indicate the correct format.
The Line Decoding field reflects the line encoding/decoding scheme. Almost all T3s
now use B3ZS.
The Clocking field selects whether to accept or provide clocks. In normal use the
central office provides clocks and your setting should be “Normal”. You may also
connect to another router by using a cross-over cable and selecting a “Master”
clocking option on one of the two routers.
Editing A Logical Interface (Frame Relay)
Figure 70: Edit T1 Interface
This menu allows you to display and configure logical interface fields for Frame
Relay. The menu is composed of two tables. The first table provides link based
configuration, which affect all DLCIs. The second table provides configuration
parameters for individual DLCIs.
After the first DLCI has been configured, revisiting that DLCI will display a menu
that allows additional DLCIs to be configured.
RuggedCom 79
