RuggedRouter
®
User Guide
The fields and buttons in this menu are the same as those described in the Editing A
Logical Interface (Frame Relay) section of the Configuring Frame Relay/PPP
And T1/E1 chapter.
Editing A Logical Interface (PPP)

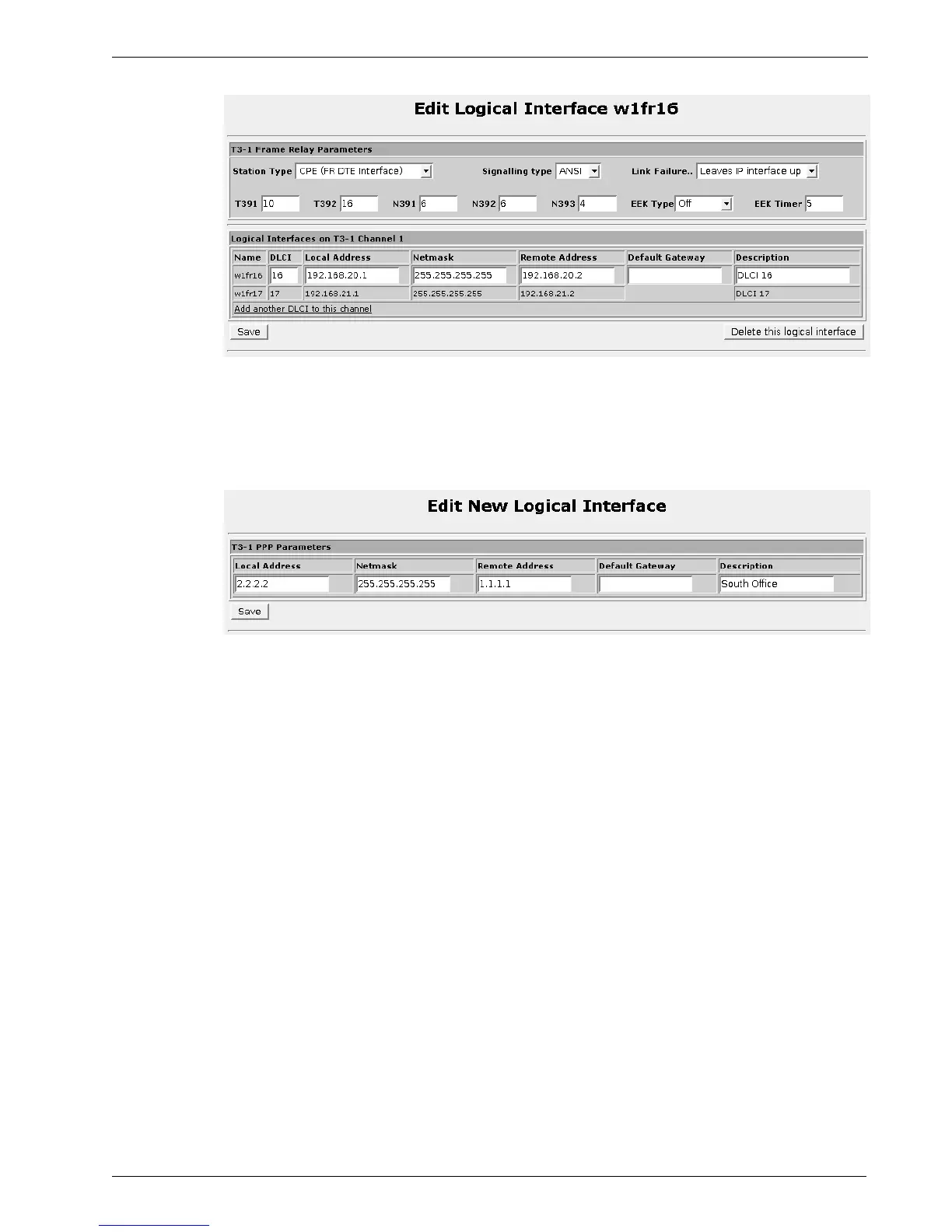

Figure 72: Edit Logical Interface (PPP)
The Local Address, Netmask, Remote Address, Default Gateway and Description
fields are as described in the previous section.
T3 Statistics
When at least one logical interface is configured, T3 Link and logical interface
statistics will be available. These statistics are available from links on the T3 WAN
Interfaces menu.
Link Statistics are provided through the “View Link Statistics” link at the bottom of
each interface table. Frame Relay and PPP statistics are available through
“(Statistics)” links under the interface name column of each interface table.
Link, Frame Relay And PPP Interface Statistics are as described in the Configuring
Frame Relay/PPP And T1/E1 chapter with the exception that T3 provides only AIS,
LOS, OOF and YEL alarms.
Current Routes & Interface Table
The table provided by this command is as described in the Networking menu,
Network Utilities sub-menu. It is also provided here as a convenience.
80 RuggedCom
Figure 71: Edit Logical Interface (Frame Relay)
