RuggedRouter
®
User Guide
The Multicast Address field configures the address to listen for.
The Remote Daemon and Add a new Daemon fields specify the IP addresses of
remote daemons.
GOOSE Statistics Menu

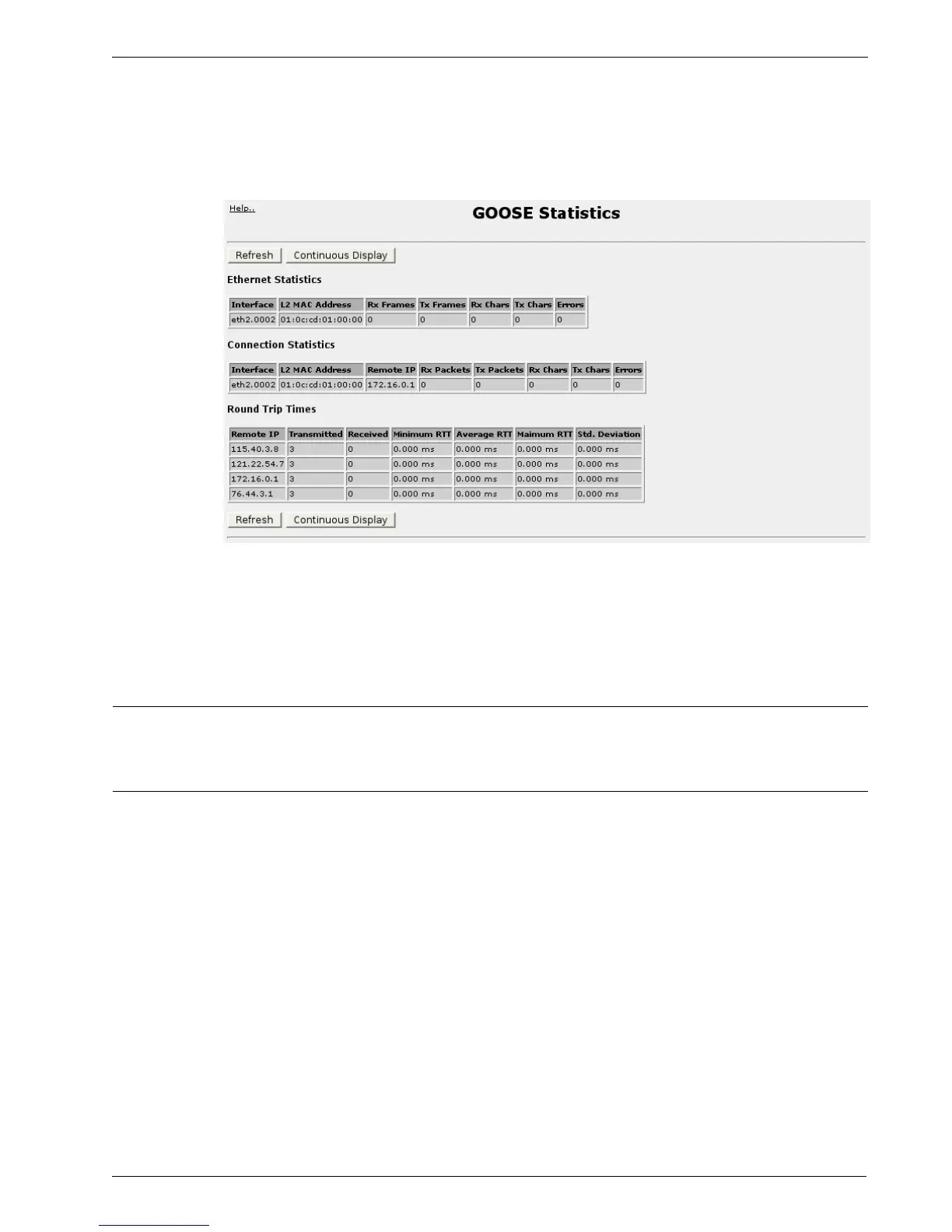

Figure 189: GOOSE Statistics Menu
This menu presents statistics of GOOSE activity at the Ethernet and Network Layers.
The Ethernet Statistics table provides a record for each GOOSE tunnel. The number
of historical received and transmitted characters as well as errors will be displayed.
The Connection Statistics table reflects UDP connections. Network and Ethernet
connections can be paired by examining the L2 MAC Address field.
Note: All counts are from the router's perspective. The Rx Packets count reflects
packets received from the network, the contents of which are transmitted at the
protocol and reflected in the Tx Chars field.
The Round Trip Times table reflects the measured RTT to each remote daemon.
The minimum, average, maximum and standard deviation of times is presented.
Wntries with a large difference between the Transmitted and Received fields
indicate potential problems.
The Refresh button will cause the page to be reloaded.
The Continuous Display button will cause the browser to continuously reload the
page showing the differences in statistics from the last display. The difference is not
a real time rate in bytes or packets per second.
