Ryobi Homelite RY48ZTR75/100 User Manual

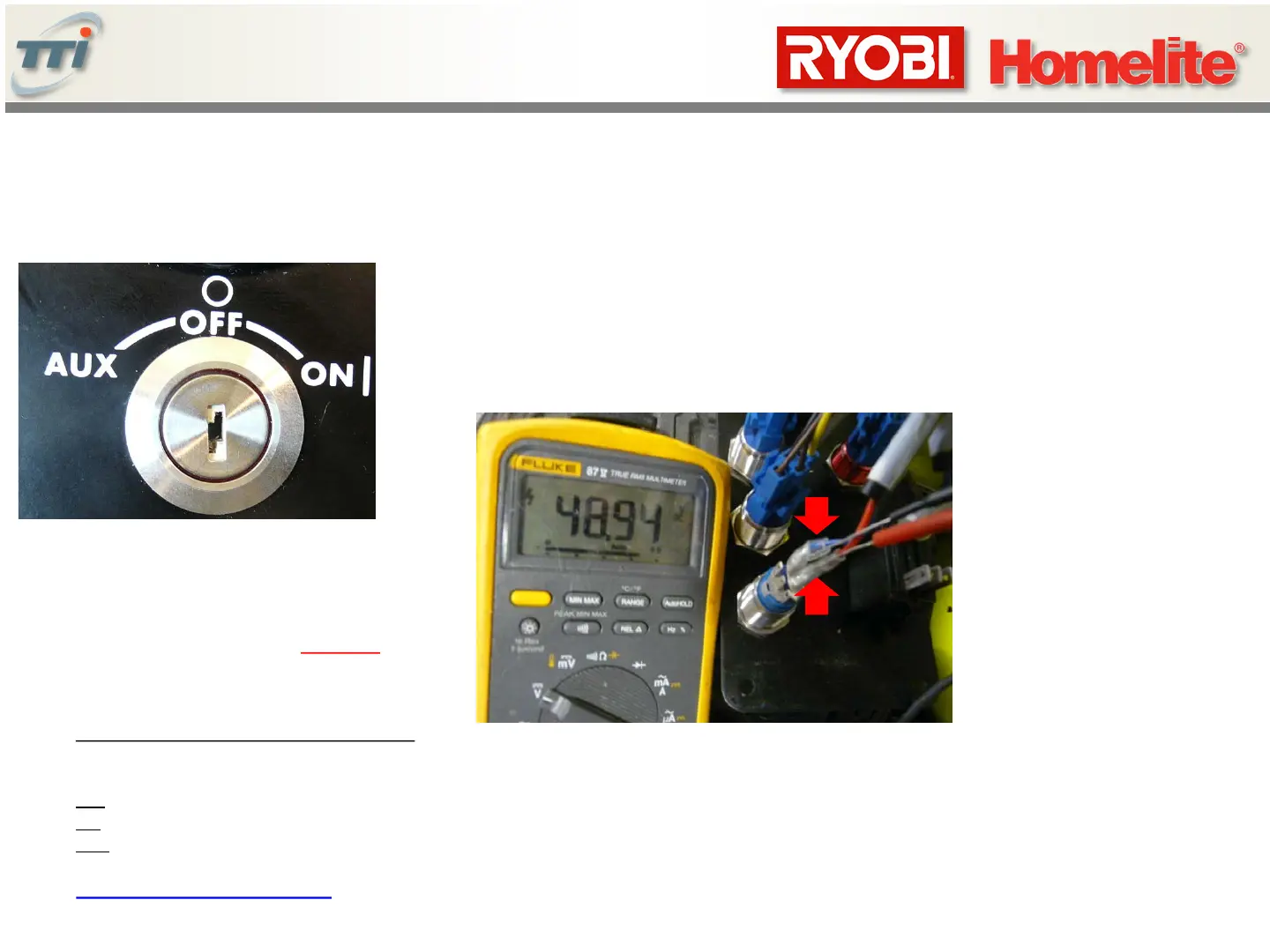

Testing Key Switch
To measure Switch with wires disconnected:
1. Set DMM to measure continuity
OFF position: No continuity between green and red wire.
ON position: Continuity between green and red wire.
AUX position: Not used at time of this writing.
Note this switch operates at 48V DC
22
< Table of Contents
1. Set DMM to DC Volts
2. With Power switch OFF, measure battery voltage where indicated
3. With Power ON, measure approx. 0V where indicated
