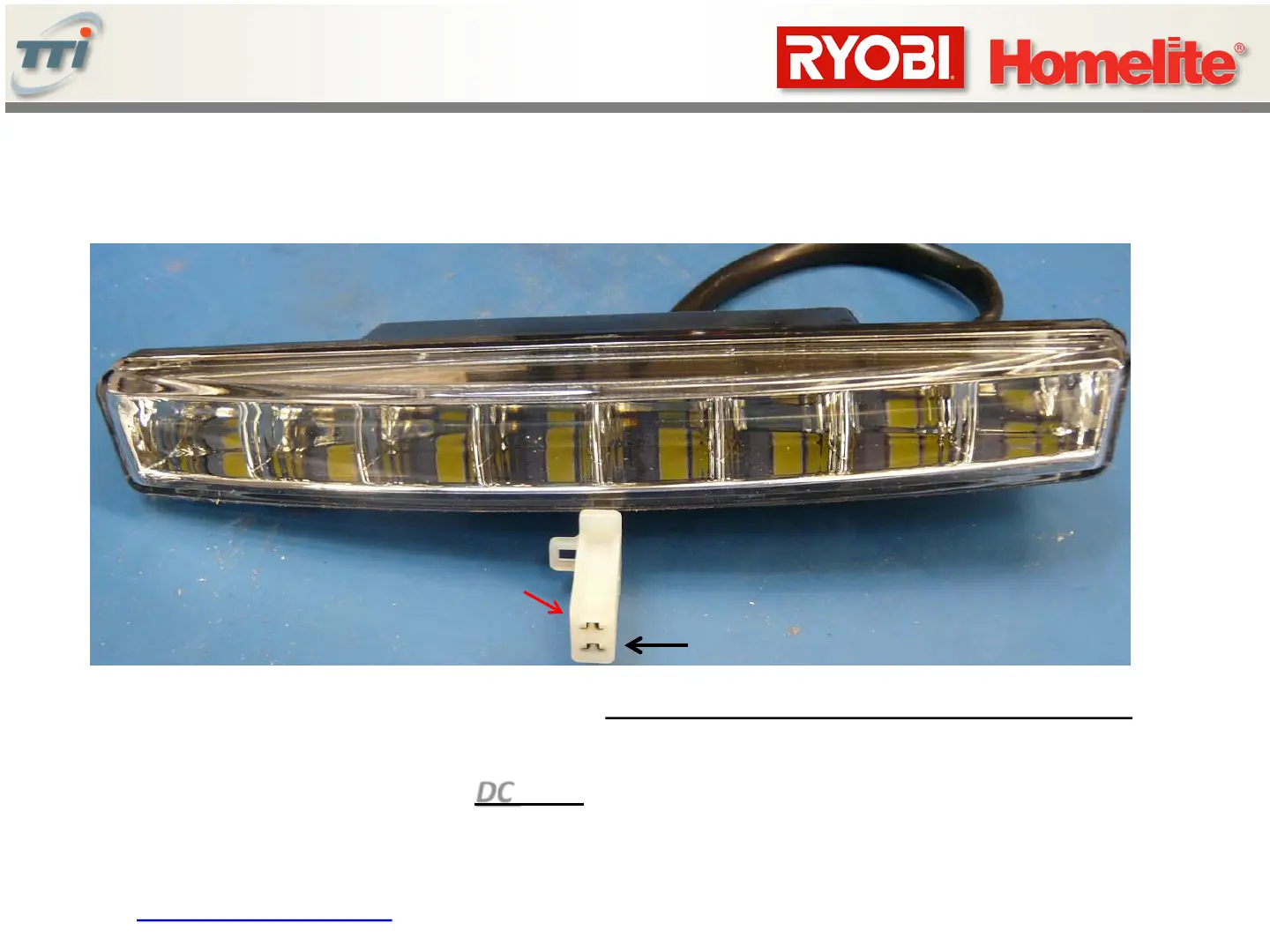

Testing Head Light Assembly
1. Power on Mower.
2. Turn on Headlights.
3. Set DMM to measure DC Volts.
4. Measure for 12V at harness.
Nominal current: 275mA
To test Headlight module independently:
1. Disconnect Headlight from wire harness.
2. Supply 12V to the connector as shown above.
POSITIVE ”+”
“-” NEGATIVE
26
