Testing the Charge Port and Interlock
1. Turn mower on.
2. Turn headlights on.
Use extreme caution the jumper is in the
Correct sockets, otherwise a short circuit
May result in step 3.

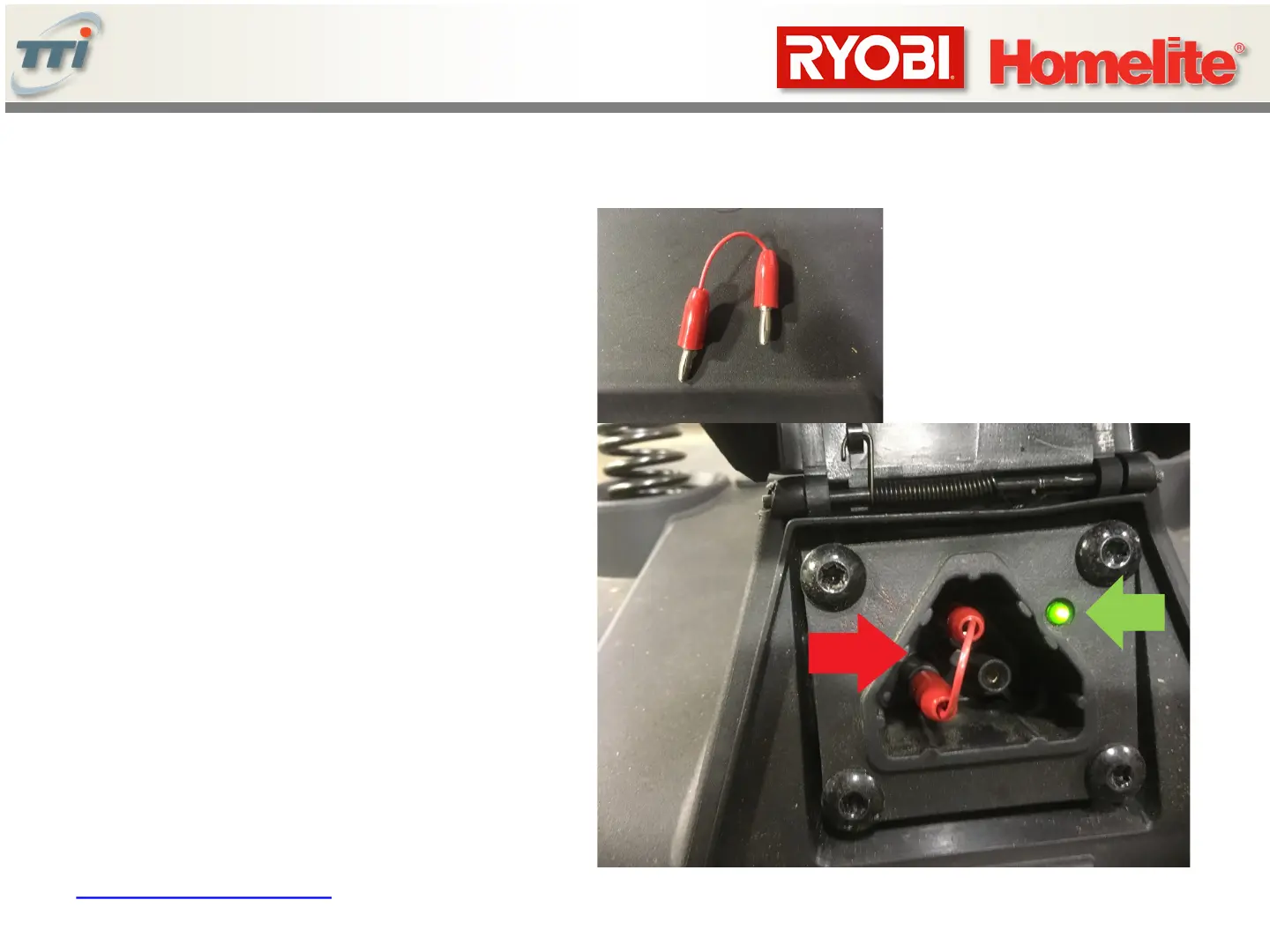

3. Connect a jumper wire as shown.
(any insulated wire will do.)
4. Green charge LED should glow as shown.
5. Mower should shut down (relay clicks,
headlights go out).
6. Remove the jumper wire.
7. After a few seconds, the mower
should come back on (relay clicks) and
headlights light again.
41
< Table of Contents
Jumper wire with
Banana plugs (available at
mouser.com
To Next Page
