Testing Relay Diode
Diode

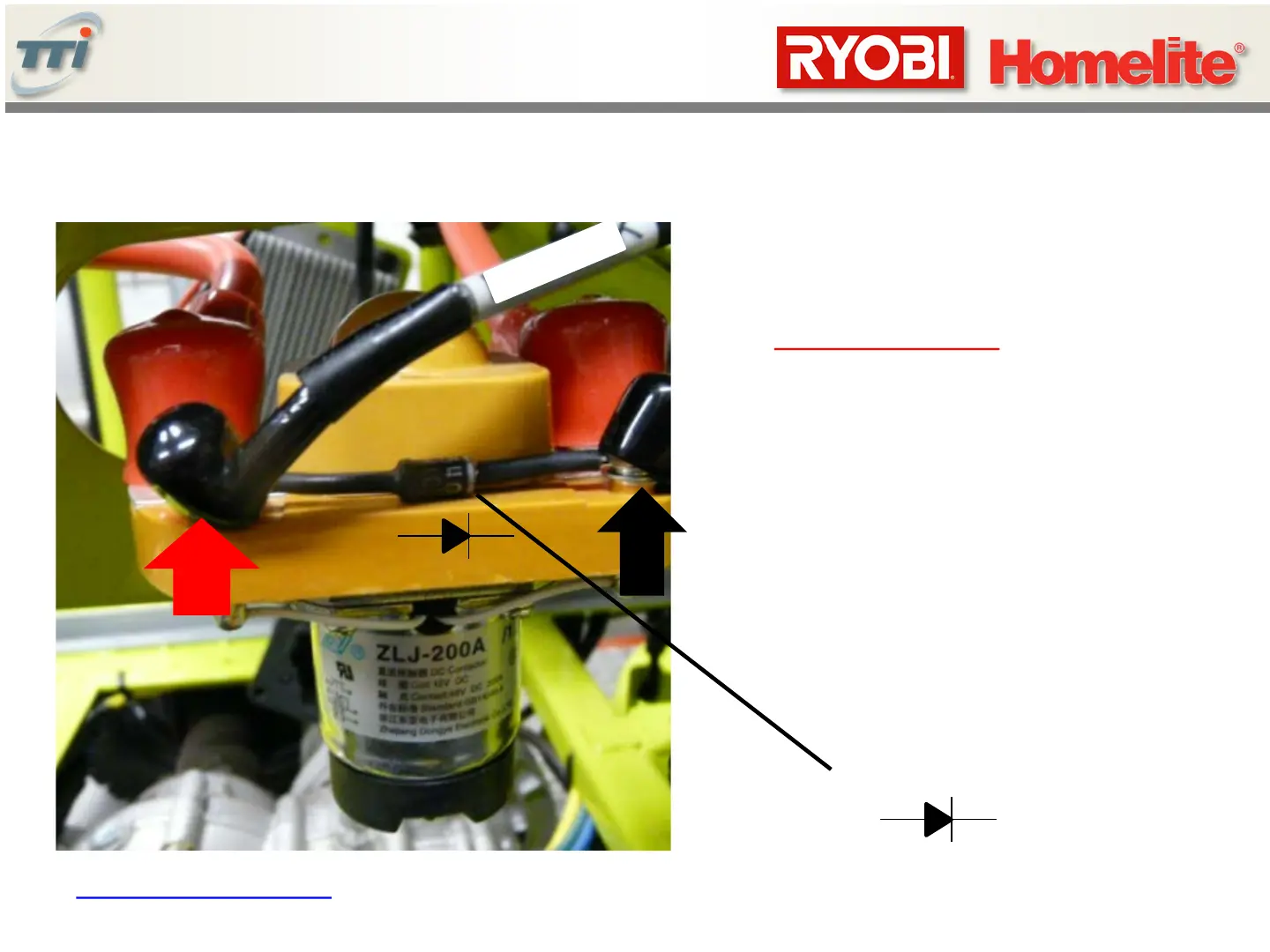

Diode Test:
1. Turn Mower OFF.
2. Unbolt one leg of diode and
disconnect from the circuit.
3. Set DMM to “Diode”.
4. Connect red lead at red arrow,
black lead at black arrow.
DMM should read approx . 7 V.
5. Reverse the red and black leads.
DMM should read “open circuit”
6. Replace or reconnect diode.
IMPORTANT: Make sure diode is
installed correctly. Band on
diode indicates polarity
.
40
< Table of Contents
Note: diode is normally covered with heat shrink tube.
This has been removed in order to show the diode band
To Next Page
