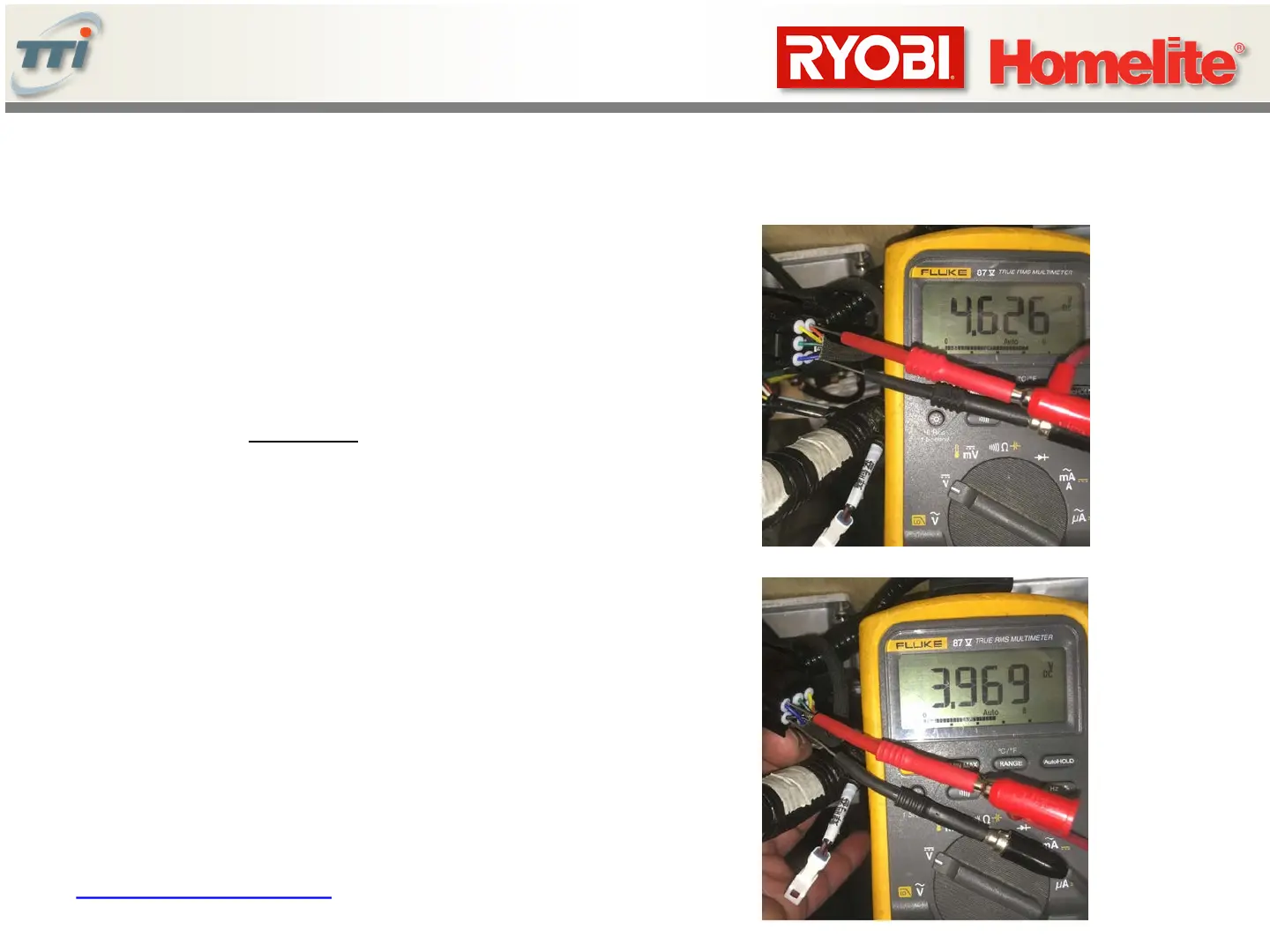

Testing Drive Motor Hall Sensors
(in Mower)
35
Note: power should be ON and rear
end raised so wheels can turn without mower moving
Set DMM to “DC Volts”
1. connect red probe to red wire (power).
2. Black probe to black wire (ground).
3. Should measure 4-5V.
Leave black probe connected to black wire.
1. touch red probe to yellow wire
Slowly rotate motor. Voltage should
Jump between 0V and 4-5V.
2. repeat with green wire.
3. repeat with blue wire.
