Test Drive Motors
1. Unbolt heavy phase wires from drive controller
2. Set DMM to Resistance mode
3. Measure resistance between heavy green
and heavy yellow wire on motor
3 Measure resistance between heavy green
and heavy blue wire on motor.
4. Measurements should be nearly identical
and close to 0 Ohms.
Nomimal resistance: 0.1Ohm
34
Drive
Motor
Heavy motor
phase wires
Hall Sensor wire Bundle
(black connector)
< Table of Contents

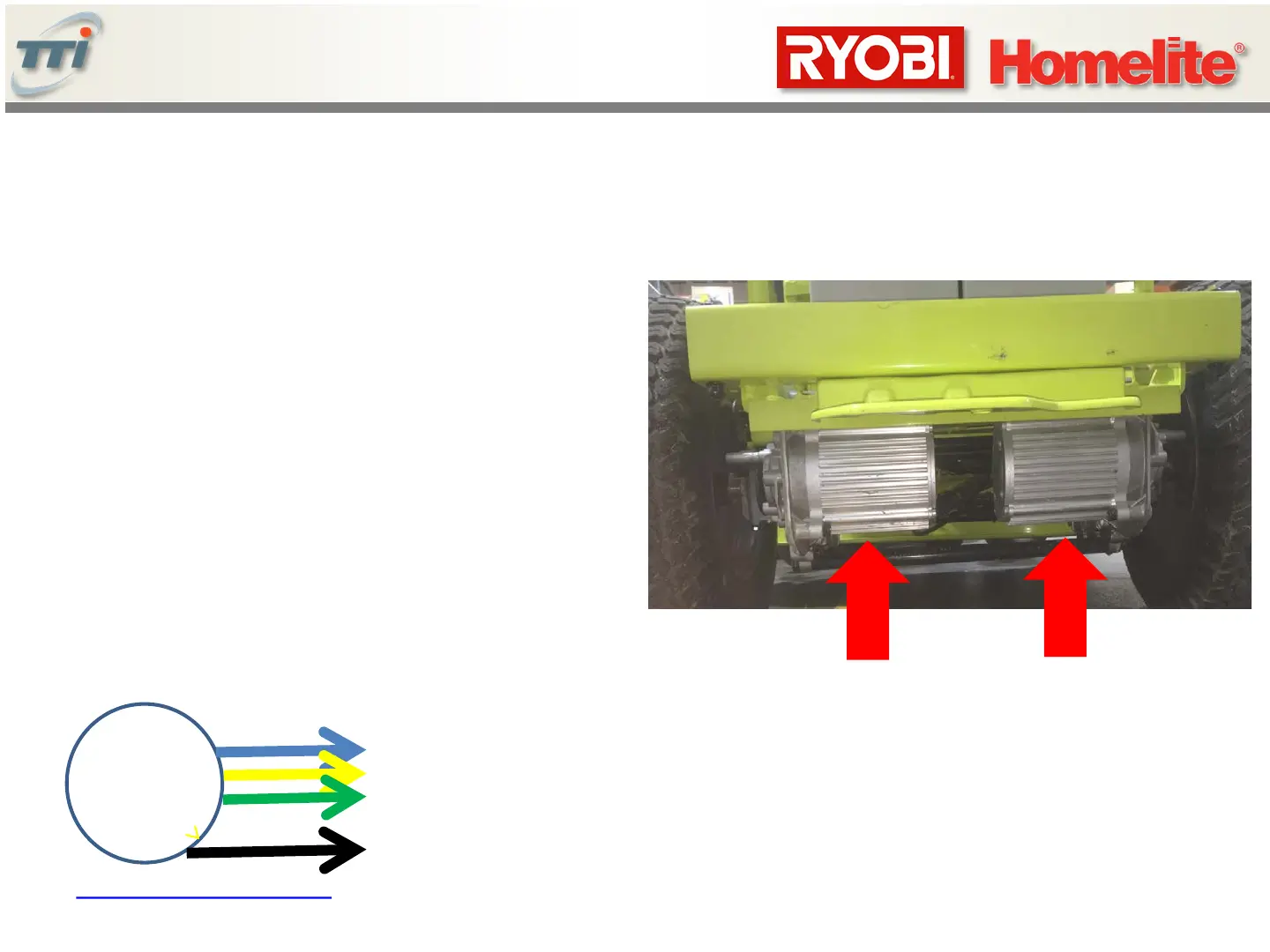

Left Drive
Motor
Right Drive
Motor
