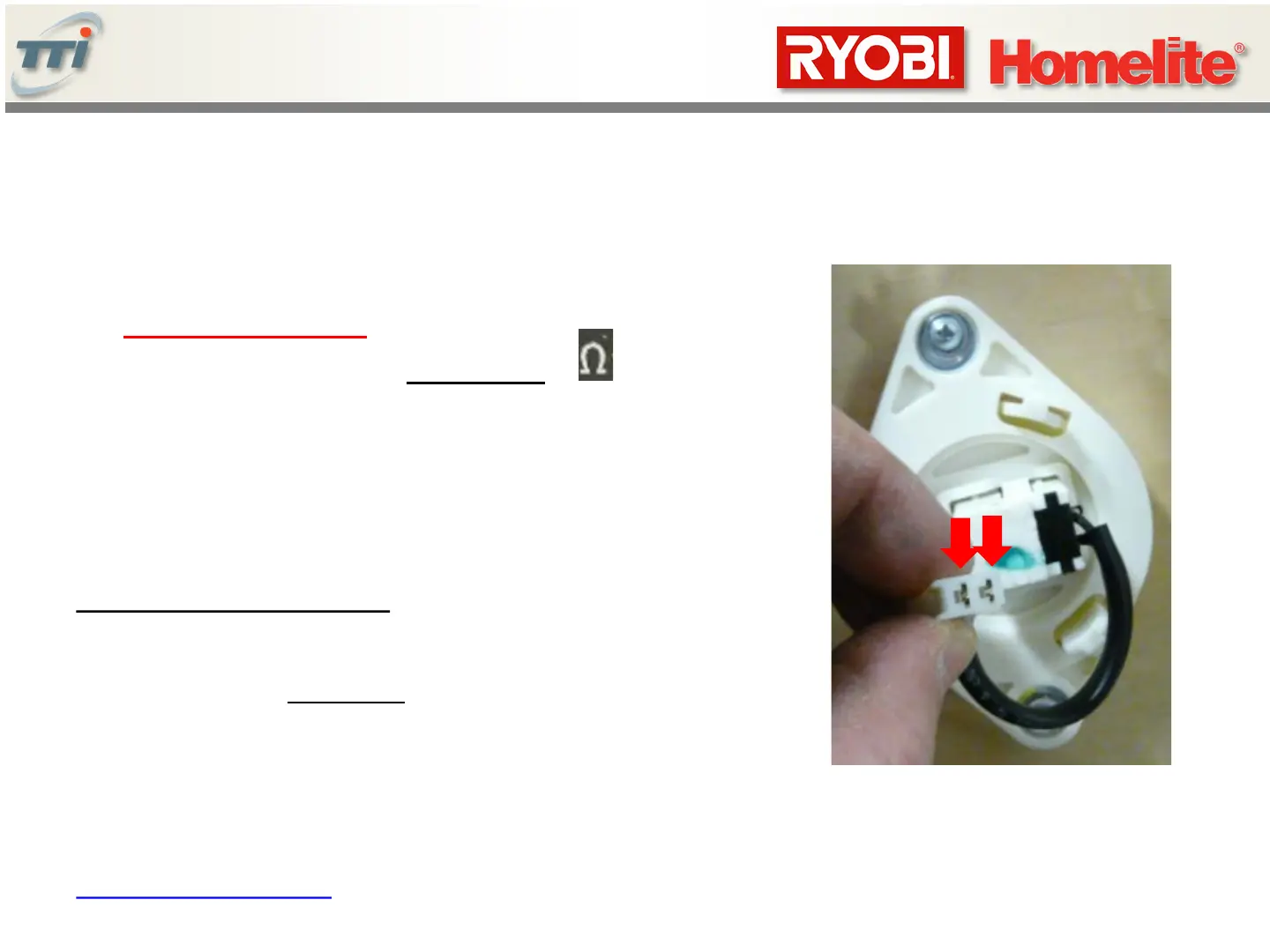

Testing Seat Switch
Seat Switch is Normally Open (N.O.) when no pressure is applied to seat
1. Power Mower OFF.
2. Set DMM to measure Resistance.
3. Disconnect seat switch connectors.
4. Measure continuity when switch is pressed.
5. Measure very high resistance when switch is released.
To Measure the harness:
1. Turn ON the mower.
2. Set DMM to DC Volts.
3. Measure 5VDC between the 2 pins on the harness.
Note: this switch operates at 5V.
0-.2 Ohms nominal when pressed
30
