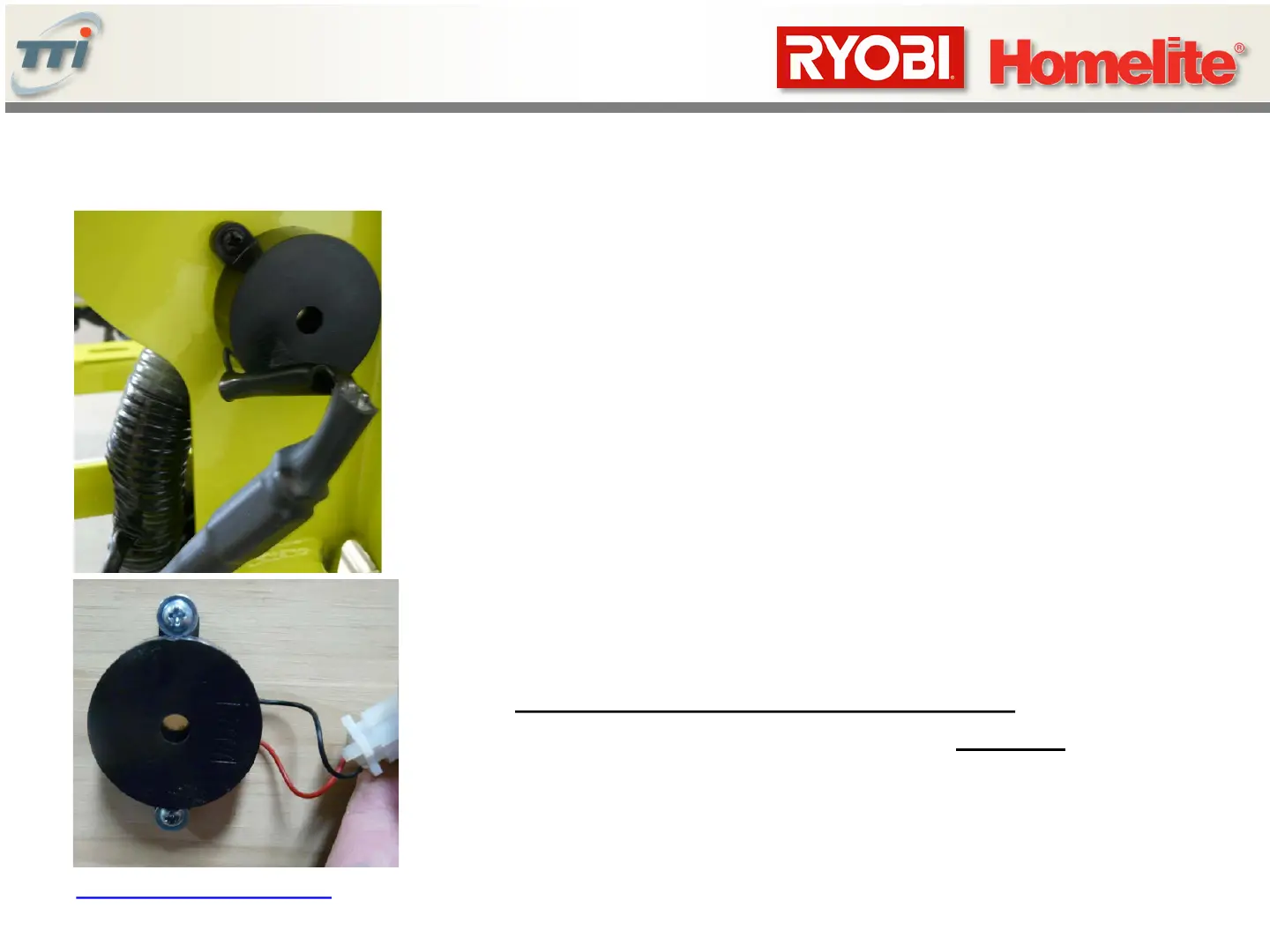

Testing the Beeper
To Test out of circuit:
Disconnect from harness and
connecting 12V “+” to red wire
and “-” to black ground wire of beeper. You
Should hear a beep
To test on the mower:
With power on, remove yourself from the seat.
Please note: it may take up to 1 minute for beeper
To activate
To measure the voltage at the harness:
1. Set DMM to measure DC Volts.
2. Remove yourself from the seat.
2. Place probes in harness socket.
3. Measurement display should
alternate between 0 and 5V-12V.
