Ryobi Homelite RY48ZTR75/100 User Manual

Testing Drive Motor Hall Sensors
(Independently)
1. Turn OFF mower.
2. Disconnect all wires from motor to mower.
3. Apply 5V (red to red, black to black).

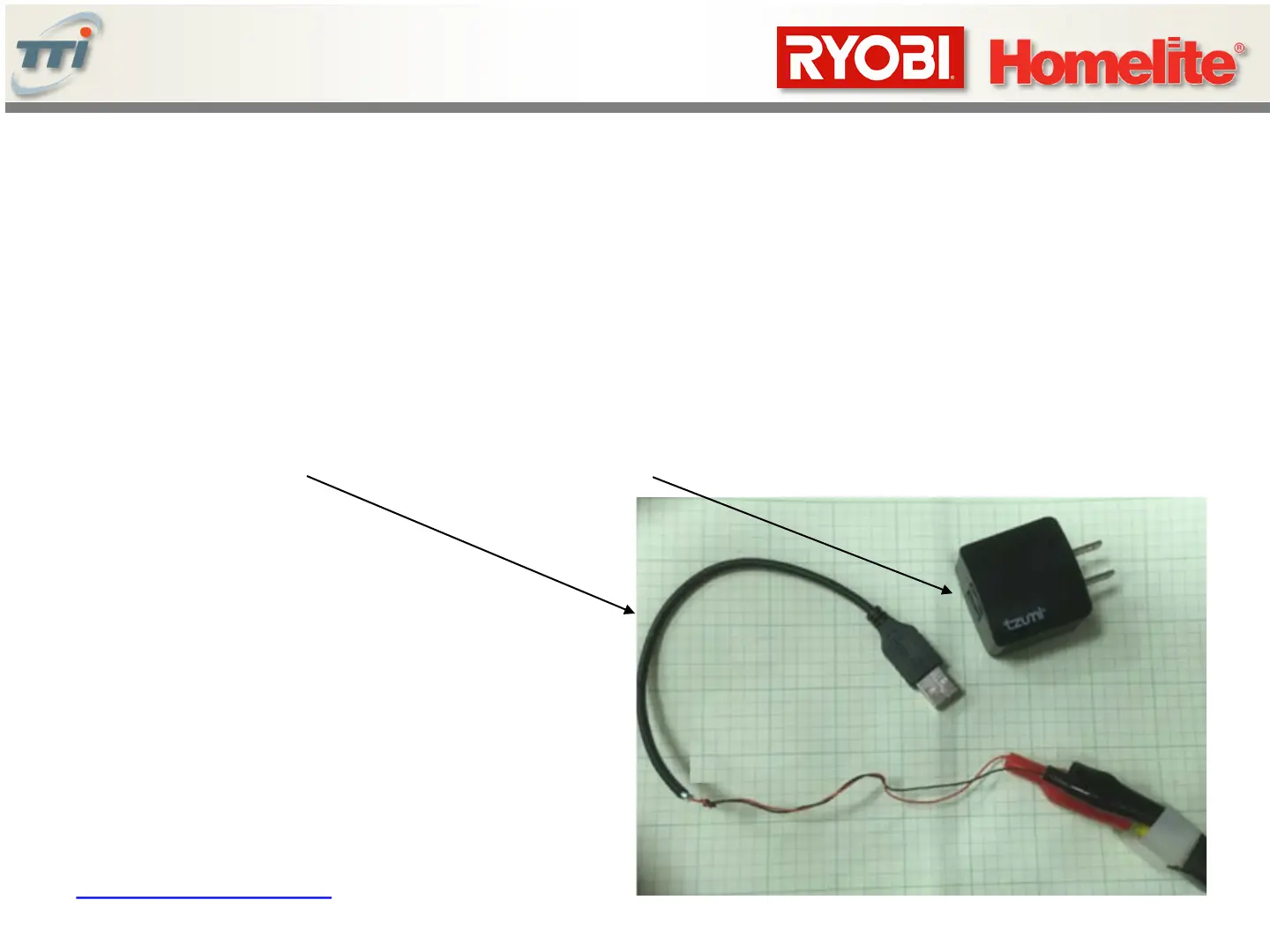

Note: a scrap USB cord and USB cell phone charger can be used to supply 5V
36
Repeat measurements from previous page,
while turning the motor by hand.
