Disassembly and Reassembly
3-72 Samsung Electronics
QERV PLUS

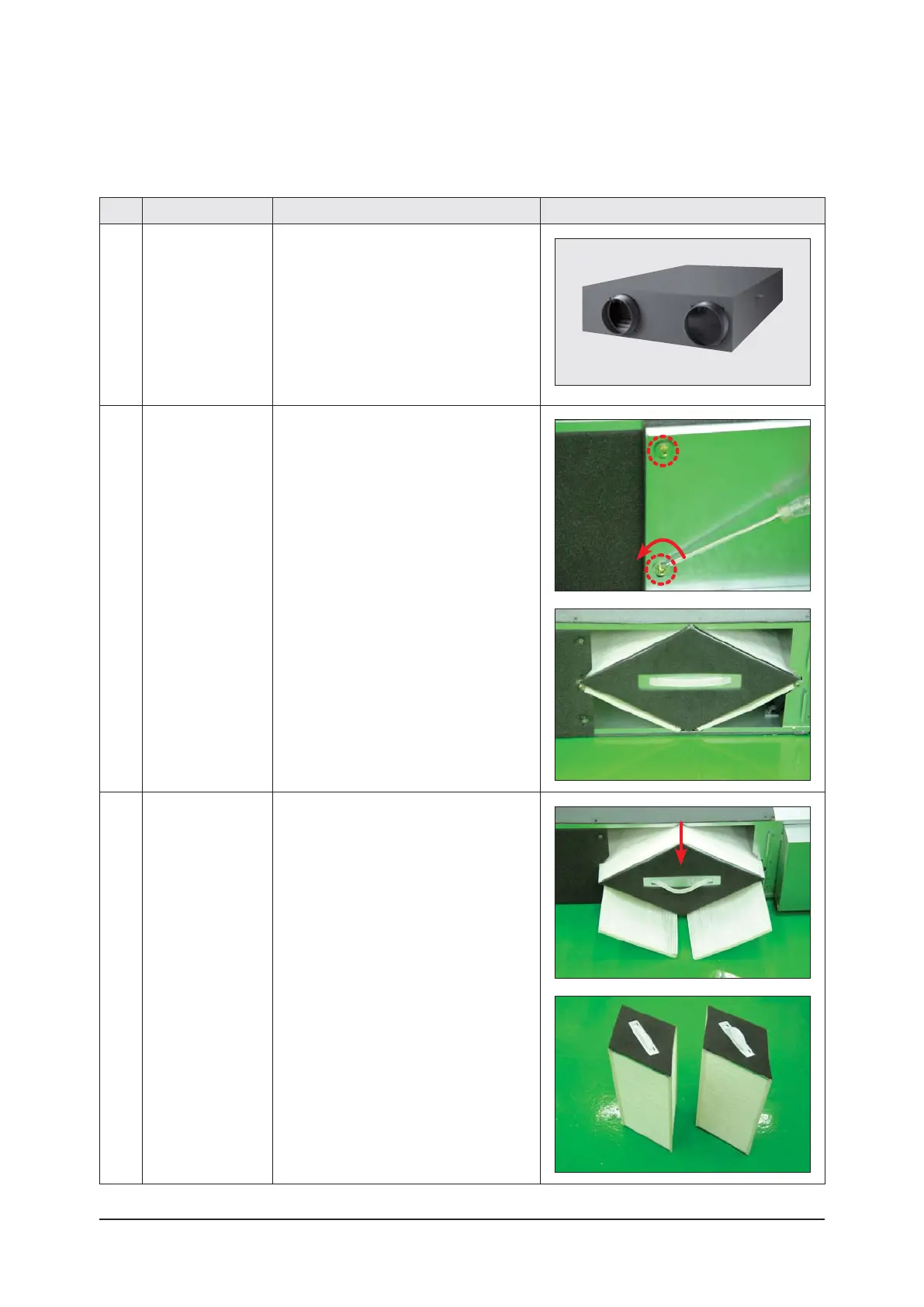

No Parts Procedure Remark
1 ERV
(Energy Recovery
Ventilator)
1) Stop the air conditioner operation and
shut off the main power.
2) Remove the unit from ceiling suspension.
(Disassembly is not required when Fan,
Motor, Element, Filter replacement or
cleaning.)
2
Cover Element 1) Remove the 2 bolts of the Cover Element.
(Use +Screw Driver.)
2) Find the Element and 2 Dust Filters.
3
Ass’y Element
Ass’y Filter
1) Detach Element and Filter from the unit.
Make sure detach the Filter before the
Element.
2) There are 2 Element within the product.
– All the procedure has to be verified because the cover should not open when the unit is installed.
To Next Page
